AP3417C
Document number: DS36516 Rev. 1 - 0
10 of 11
www.diodes.com
September 2013
© Diodes Incorporated
AP3417C
PRELIMINARY DATASHEET
A Product Line of
Diodes Incorporated

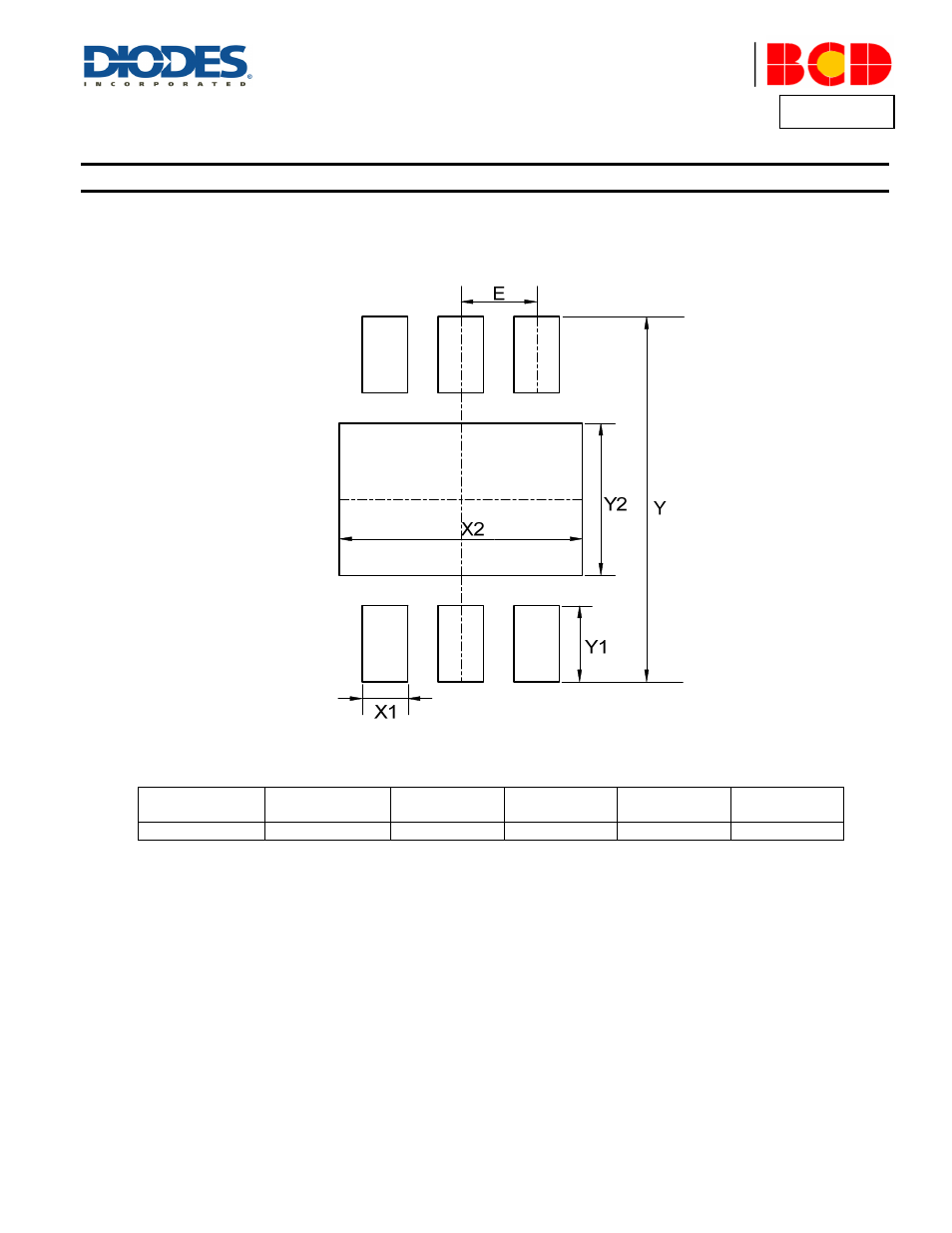

Suggested Pad Layout
(cont.)
DFN-2×2-6
Dimensions
Y
(mm)/(inch)
X1
(mm)/(inch)
Y1=E
(mm)/(inch)
X2
(mm)/(inch)
Y2
(mm)/(inch)
Value
2.400/0.094 0.300/0.012 0.500/0.020 1.600/0.063 1.000/0.039
