AP3417C
Document number: DS36516 Rev. 1 - 0
6 of 11
www.diodes.com
September 2013
© Diodes Incorporated
AP3417C
PRELIMINARY DATASHEET
A Product Line of
Diodes Incorporated

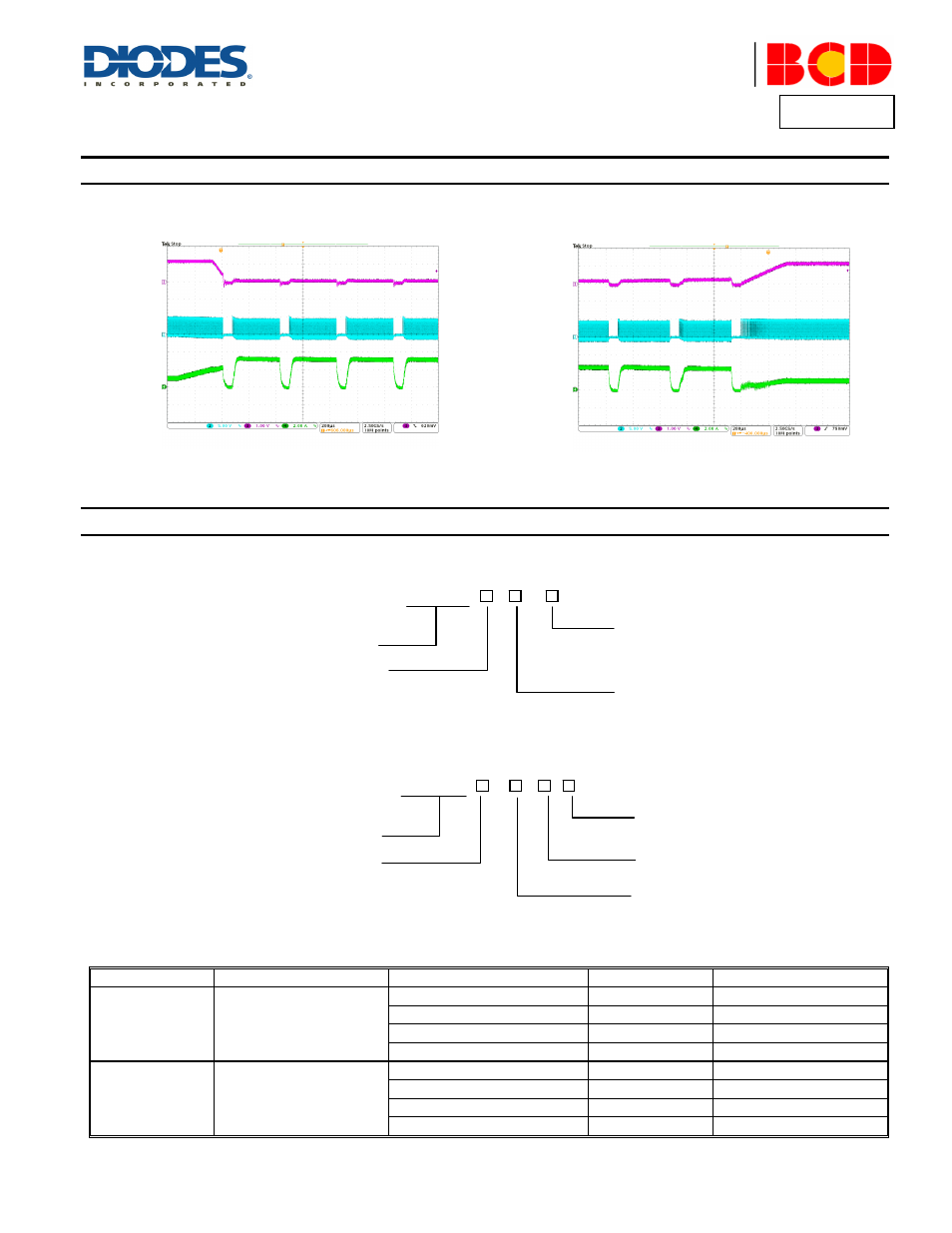

Performance Characteristics
(cont.) (@V
IN
= 5V, T
A
= +25°C, unless otherwise specified.)
Short Circuit Protection (I
OUT
=1A) Short Circuit Protection Recovery (I
OUT
=1A)
Ordering Information
For ADJ Version
AP3417C -
G1: Green
Circuit Type
For Fixed Versions
AP3417C -
G1: Green
Circuit Type
Package Temperature Range Part Number Marking ID Packing Type
SOT-23-5 -40 to 85ºC
AP3417CKTR-G1 G4I Tape & Reel
AP3417CK-1.2TRG1 G4U Tape & Reel
AP3417CK-1.8TRG1 G4V Tape & Reel
AP3417CK-3.3TRG1 G4W Tape & Reel
DFN-2×2-6 -40 to 85ºC
AP3417CDNTR-G1 BH Tape & Reel
AP3417CDN-1.2TRG1 BL Tape & Reel
AP3417CDN-1.8TRG1 BM Tape & Reel
AP3417CDN-3.3TRG1 BN Tape & Reel
BCD Semiconductor's Pb-free products, as designated with "G1" suffix in the part number, are RoHS compliant and green.
V
OUT
1V/div
V
SW
5V/div
I
L
2A/div
Time 200µs/div
V
OUT
1V/div
V
SW
5V/div
I
L
2A/div
Time 200µ s /div
TR: Tape & Reel
Package
K: SOT-23-5
DN: DFN-2×2-6
TR: Tape & Reel
Package
K: SOT-23-5
DN: DFN-2×2-6
1.2: Fixed Output 1.2V
1.8: Fixed Output 1.8V
3.3: Fixed Output 3.3V
