50V N-Channel MOSFET AF15N50
Aug. 2013 Rev. 1. 0 BCD Semiconductor Manufacturing Limited
1
General Description
This N-Channel MOSFET has been designed
specifically to improve the overall efficiency and to
minimize switch node ringing of DC-DC converters
using either synchronous or conventional switching
PWM controllers. It has been optimized for low gate
charge, low R
DS(ON)
, fast switching speed and body
diode reverse recovery performance.
The AF15N50 is available in PDFN-5×6-8 package.
Features
• Typ R
DS(ON)
=14.32m
 @ V
GS
=10V, I
D
=15A
• Typ R
DS(ON)
=16.36m
 @ V
GS
=4.5V, I
D
=15A
• RoHS Compliant
Applications
• Primary Switch in Isolated DC-DC
• Synchronous Rectifier
• Load Switch

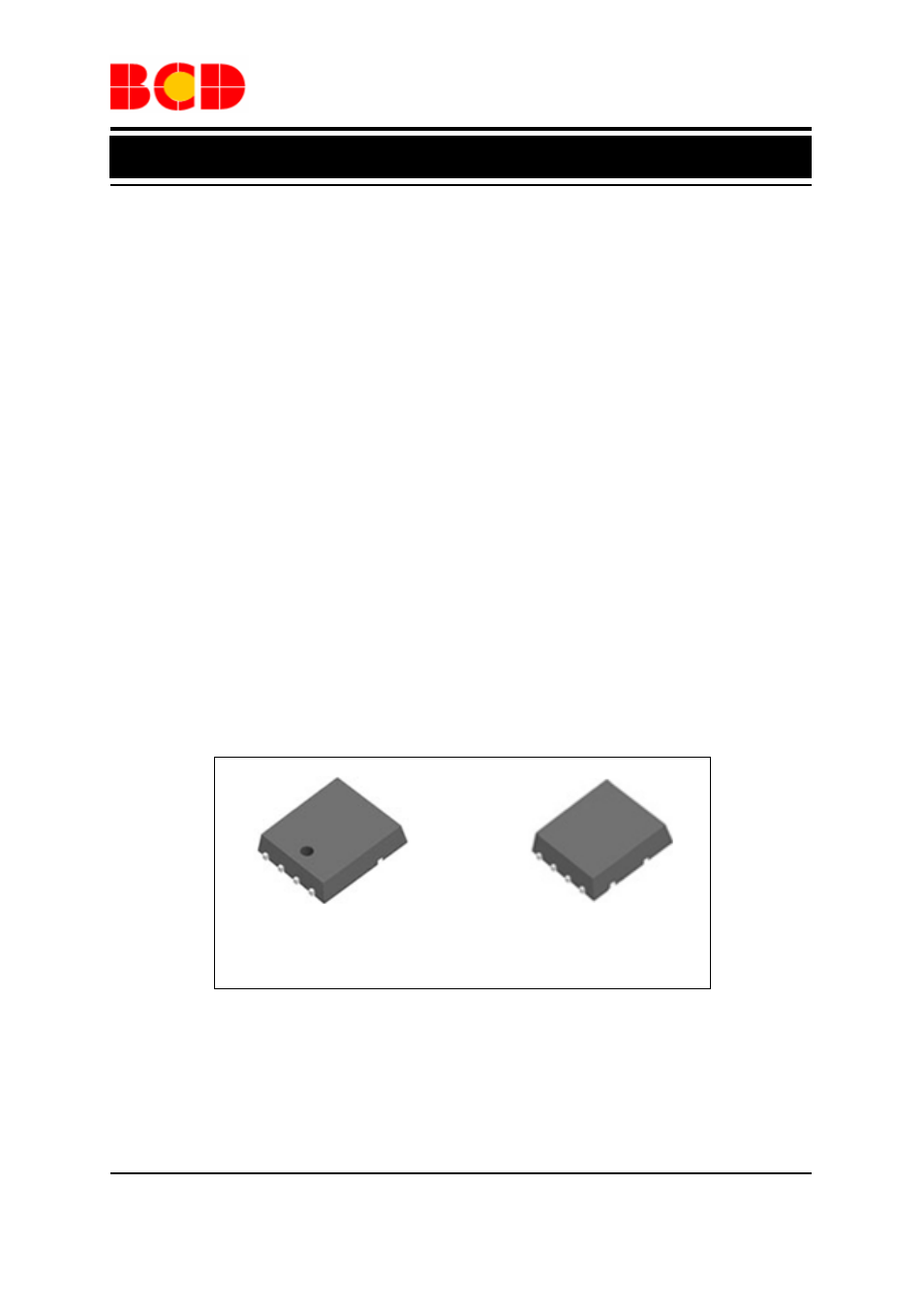

Figure 1. Package Type of AF15N50
Option 1 Option 2
PDFN-5Ч6-8
