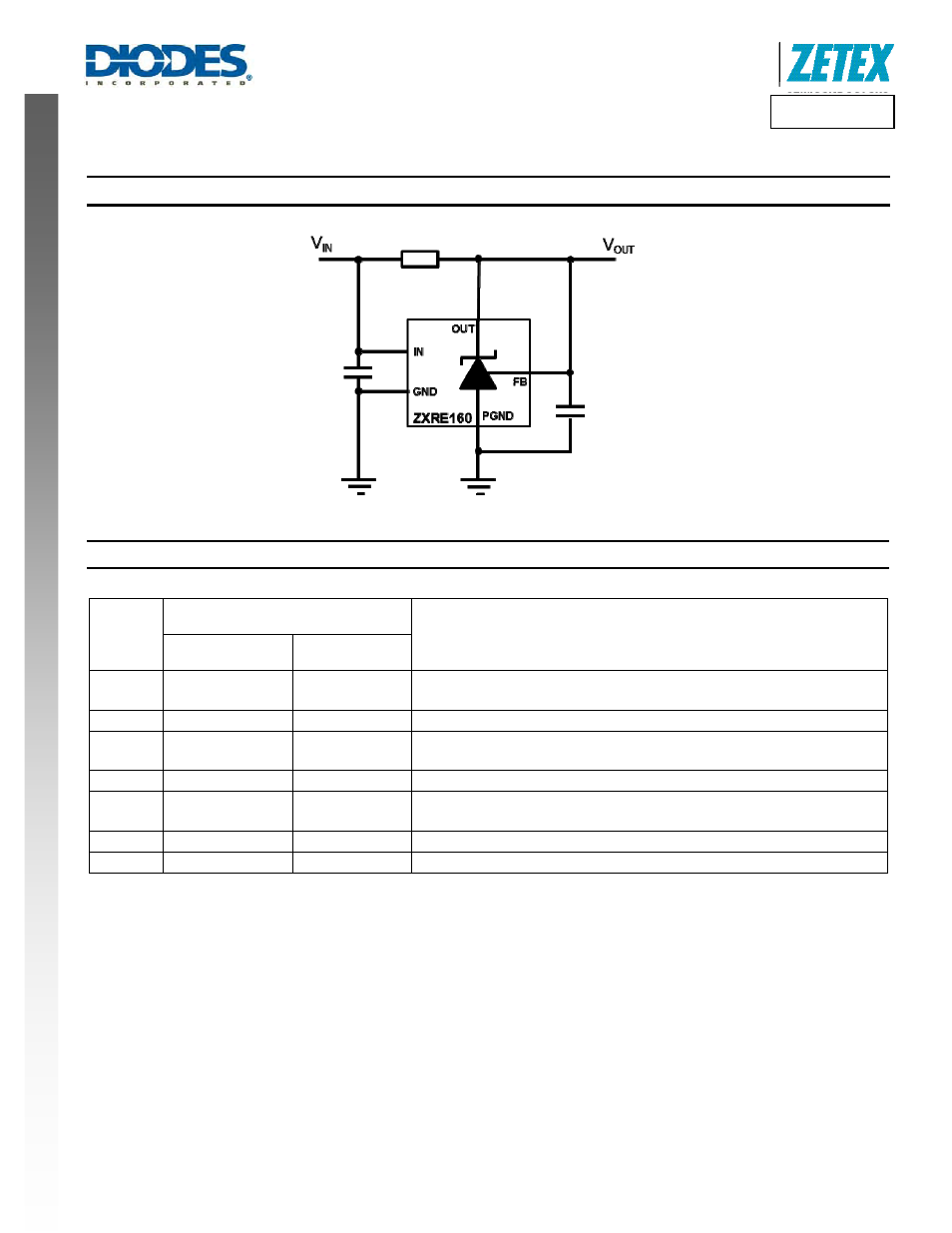

Typical Applications Circuit
Pin Descriptions
Pin Name
Package Name
Pin Number
Function
SC70/ SOT353,
TSOT25
X2-DFN1520-6
PGND 1 1
Power Ground: Ground return for emitter of output transistor: Connect PGND and
GND together.
— — 2 No connection
OUT 5 3
Output: Connect a capacitor close to device between OUT and GND for closed loop
stability. See the Applications Information section.
FB 4 4 Feedback Input. Threshold voltage 600mV nominal.
GND 2 5
Analog Ground: Ground return for reference and amplifier: Connect GND and PGND
together.
IN 3 6 Supply Input: Connect a 0.1 μF ceramic capacitor close to the device from IN to GND.
— — Flag Floating or connect to GND
