ZXLD1360

ZXLD1360

Document number: DS33471 Rev. 4 - 2

1 of 25

www.diodes.com

March 2011

© Diodes Incorporated

A Product Line of

Diodes Incorporated

30V 1A LED DRIVER with AEC-Q100

Description

The ZXLD1360 is a continuous mode inductive step-down
converter with integrated switch and high side current sense.

It operates from an input supply from 7V to 30V driving single
or multiple series connected LEDs efficiently externally
adjustable output current up to 1mA.

The ZXLD1360 has been qualified to AEC-Q100 Grade 1
enabling operation in ambient temperatures from -40°C to
125°C.

The output current can be adjusted by applying a DC voltage
or a PWM waveform to the ADJ pin; 100:1 adjustment of
output current is possible using PWM control. Applying
0.2V or lower to the ADJ pin turns the output off and switches
the device into a low current standby state.

Pin Assignments

Features

Simple low parts count

Single pin on/off and brightness control using DC voltage
or PWM

High efficiency (up to 95%)

Wide input voltage range: 7V to 30V

40V transient capability

Qualified to AEC-Q100 Grade 1

Available in thermally enhanced packages

o

TSOT23-5

θ

JA

82° C/W

• Available in Green molding (no Br, Sb) with lead free

finish/RoHS compliant

Up to 1MHz switching frequency

Typical 4% output current accuracy



















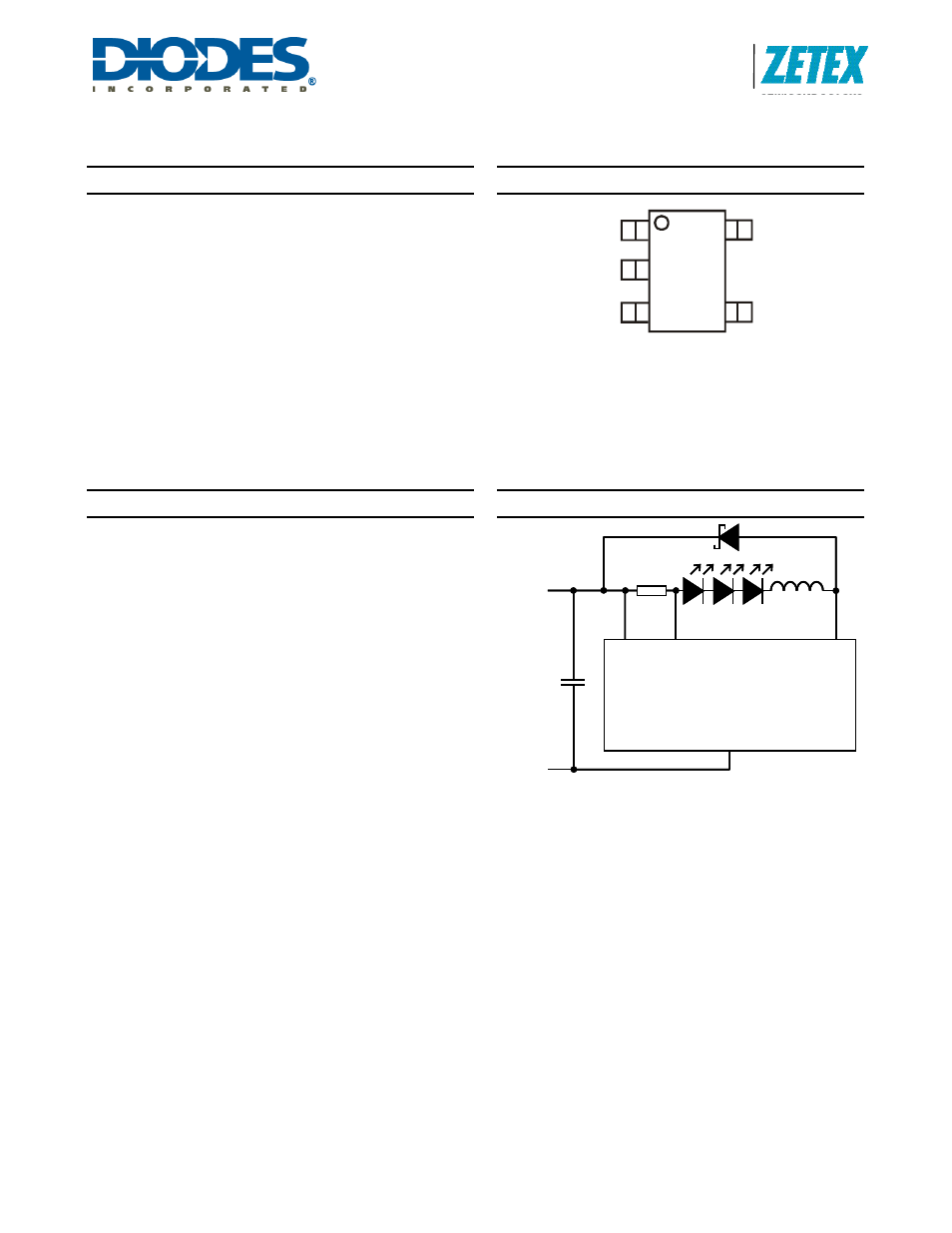

Typical Application Circuit

SET

V

IN

LX

GND

ADJ

ZXLD1360

R

S

0.1

Ω

L1

47µH

C1

4.7µF

GND

V

IN

`

7~30V

SET

V

IN

LX

GND

ADJ

ZXLD1360

R

S

0.1

Ω

L1

47µH

C1

4.7µF

GND

V

IN

`

7~30V

I

SENSE

V

IN

ADJ

GND

LX

TSOT23-5

Top View
