24
1. Screw the adapter onto the tripod.
2. Remove the eyecup from the Spark eyepiece.
3. Install the Spark on the adapter rail (A) and tighten the fixing screw (B).
4. Install the camera on the adapter rail (C) and insert the fixing screw (D) into the tripod socket of the
camera. Tighten the fixing screw.
5. Loosen the screws one by one. Align the optical axis of the Spark with the camera objective. Tighten
the screws (E and F).
6. To focus the image, loosen the screw (G) and adjust the distance between the monocular and the
camera’s eyepiece. Tighten the screw (G).
F
E
d
B
C

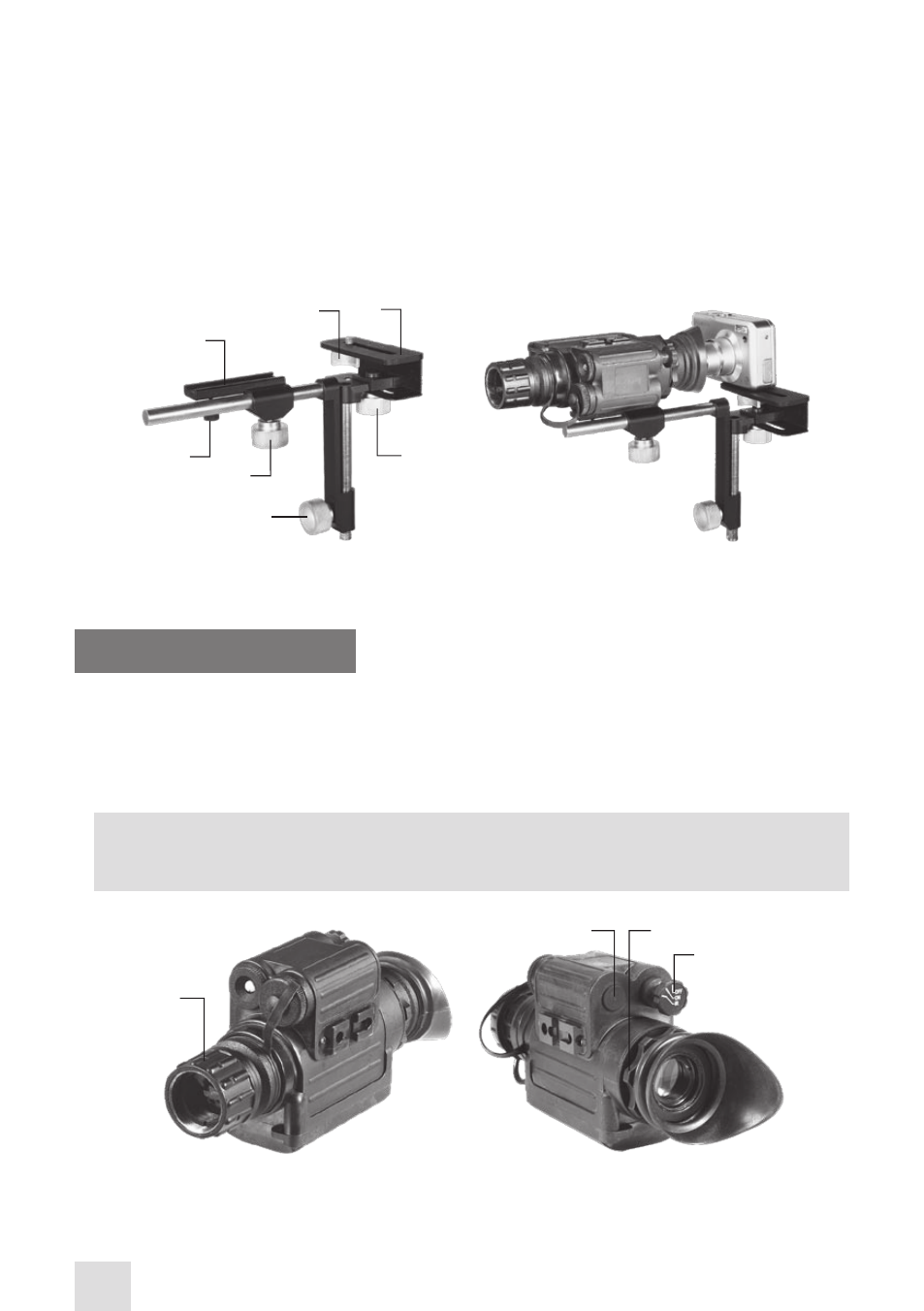

FIGURE 3-13. UNIVERSAL CAMERA ADAPTER APPLICATION
G
A
3.2 CONTROLS
3.2.1 CONTROLS
The Spark controls are defined in Table 3-1.
The Spark controls are shown in Figure 3-14.
CAUTION:
DO NOT over-adjust the controls by forcing them past their stopping points.
C
FIGURE 3-14. SPARK CONTROLS
B
A
d
