OPERATING INSTRUCTIONS
3.1 INSTALLATION AND MOUNTING
CAUTION :
To protect the intensifier tube when the sight is not in use or when it is being operated in day-
light, keep the protective lens cap securely fitted over the lens.
3.1.1 BATTERY INSTALLATION
The Spark operates on a single CR123A battery.
Install the CR123A battery as follows:
1. Unscrew the battery cap (A) and insert the CR123A battery (B), observing the polarity markings on
the body of the device.
2. Screw the battery cap (A) back on securely.

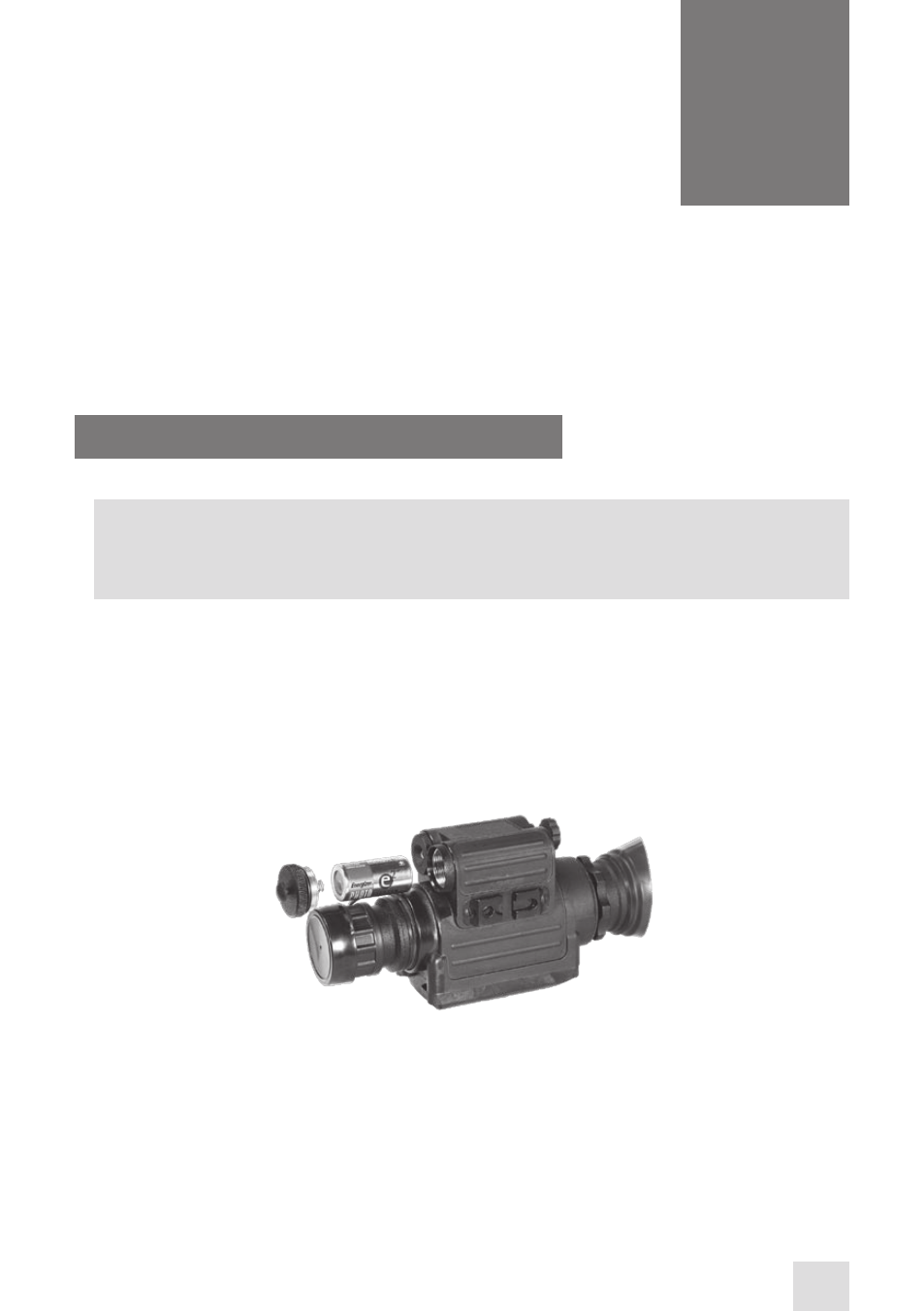

FIGURE 3-1. BATTERY INSTALLATION
3.1.2 MOUNTING THE SPARK TO A GOGGLE KIT
Mount the Spark to the optional goggle kit as follows:
1. Put on the goggle kit. Adjust the goggle kit strap pads until the goggles fit securely around your
head. Remove the goggle kit.
2. Loosen the screw (A). While pushing down on the button (B), insert the Spark rail into the guide (C) of
the goggle kit bracket. Tighten the screw (A). See Figure 3-2; the unit is shown in the correct position-
ing for the right eye.
