24
The NYX-14 configured with an 8X lens can be installed on a tripod. To mount the unit on a tripod, use
the 1/4’’ threaded socket (E) on the housing of the 8X lens.
D B C

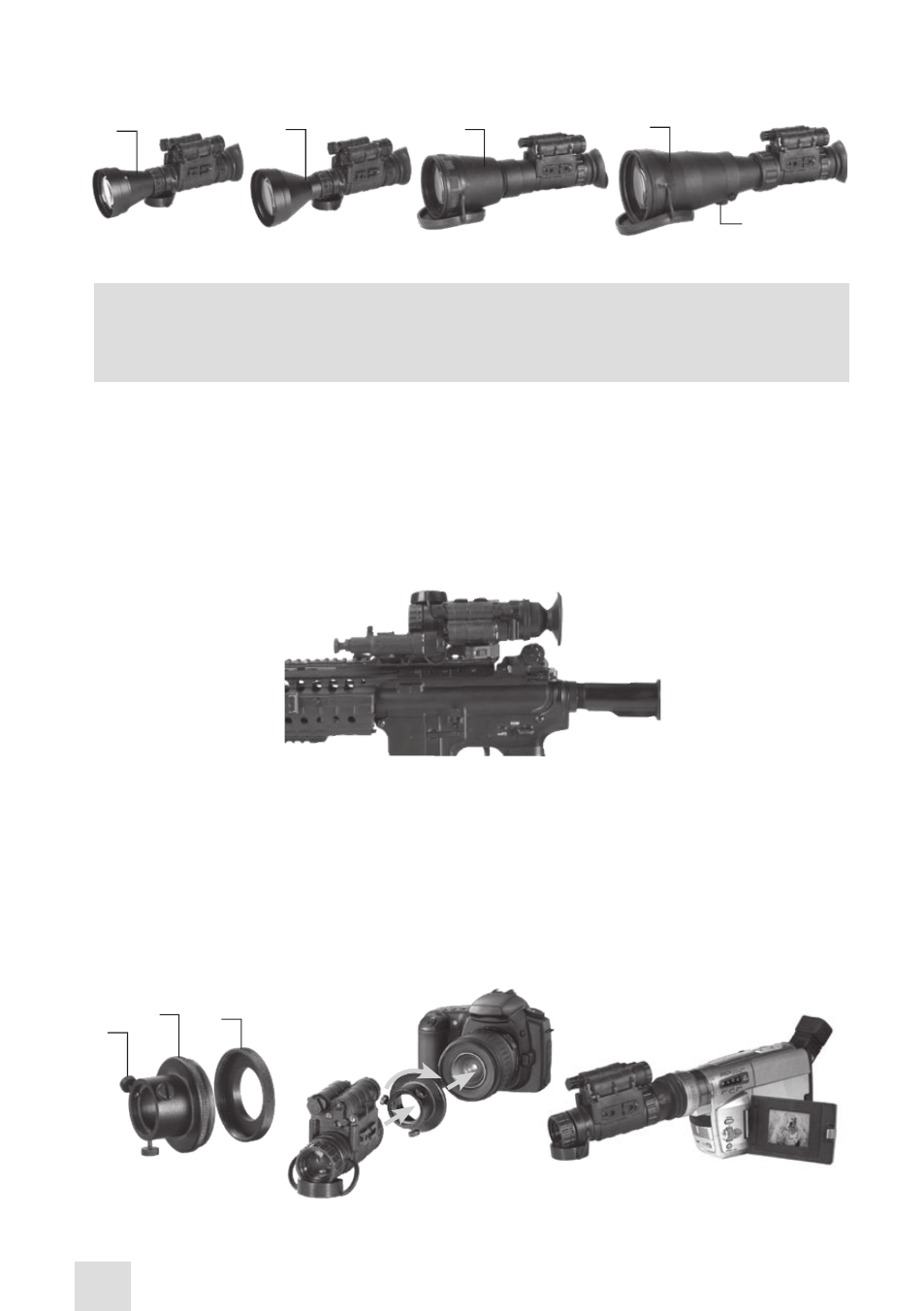

FIGURE 3-8. MOUNTING ACCESSORY LENSES TO NYX-14
E
A
NOTE:
The unit may be badly damaged if the tripod collapses or overturns. Remove the unit from the
tripod if it is not within your reach.
3.1.9 MOUNTING THE NYX-14 TO A WEAPON WITH AN AIM PRO ADVANCED
INTEGRATED MOUNT
The clamping system of the AIM PRO (AIM PRO-L) advanced integrated mount is the same as is seen on
the QRM. To mount the NYX-14 to a weapon with an AIM PRO, see Part 3.1.4 of this Manual. This section
details mounting instructions and procedures for the QRM.
For more information on the use of an AIM , see the AIM PRO User’s Manual.
FIGURE 3-9. MOUNTING THE NYX-14 TO A WEAPON WITH AN AIM PRO
3.1.10 MOUNTING A CAMERA/ CAMCORDER TO THE NYX-14
To mount any 35mm SLR photographic camera or 8mm camcorder to the NYX-14, use the optional
camera adapter and perform the following:
1. Using the (M37x0.75 threaded) adapter ring (B), screw the (M52x0.75 threaded) adapter (A) into the
front lens of the photographic camera or video camera.
2. Remove the eyecup from the NYX-14 eyepiece.
3. Connect the adapter with the eyepiece and tighten the three fixing screws (C) located on the adapt-
er.
B
C
FIGURE 3-10. MOUNTING A CAMERA/ CAMCORDER TO THE NYX-14
A
