12
13
9
7
10

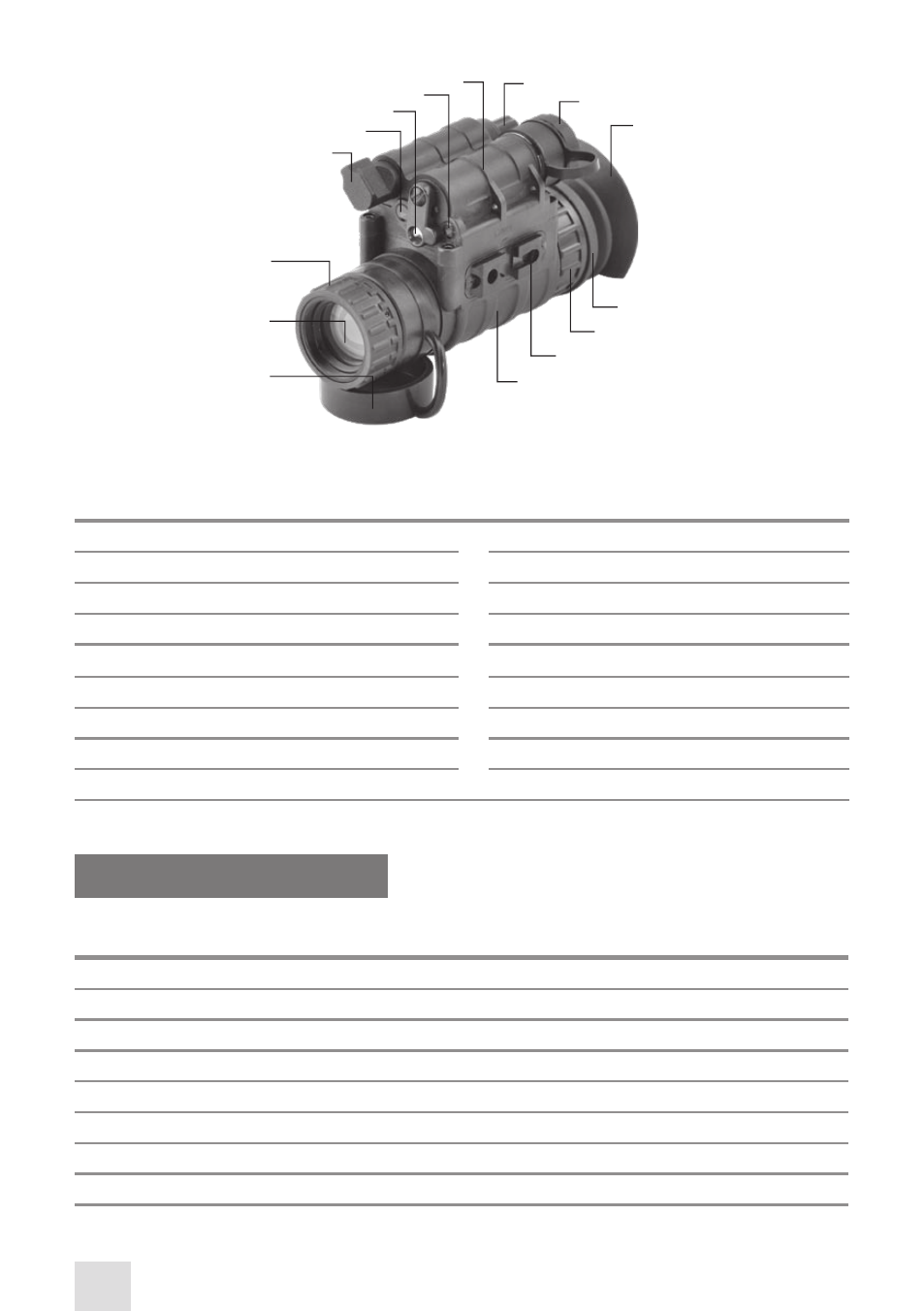

FIGURE 2-1. NYX-14 NIGHT VISION MONOCULAR
4
12
5
6
2
11
3
1
8
14
15
TABLE 2-1. NYX-14 SYSTEM DESCRIPTION
ITEM DESCRIPTION ITEM DESCRIPTION
1 Body 9 Photo Receiver
2 Rail 10 Pivotal Focusing Lens
3 Eyepiece Ring 11 IR Illuminator
4 Eyepiece 12 Turn-pull Function Switch
5 Eye-cup 13 Focus Ring
6 Battery Cap 14 Lens
7 Gain Control Knob * 15 Lens Cap
8 Battery Compartment
* For Nyx-14 MG version.
2.2 SPECIFICATIONS
TABLE 2-2. MECHANICAL DATA
EqUIPMENT ITEM DIMENSIONS, MM (L X W X H)/(DIA X L) WEIGHT, G
NYX-14/ NYX-14 MG Night Vision Monocular 140х49х69 398 /408**
Flip-up Helmet Mount* 120х170х150 280
Goggle Kit* 280х180х80 295
Picatinny/ Mil 1913 Weapon Mount Adapter* 110х59х13 58
Scope Adapter* 120х61х72 150
Sacrificial Window* Dia 30х7 5
Demist Shield* Dia 8.5х5.5 4
