14
ITEM DATA
FOV:
— with 1X Lens
— with 5X Lens*
— with 8X Lens*
— with 3X Afocal Lens*
— with 5X Afocal Lens* 40°
9°30’
6°30’
9°
7°
Exit Pupil Diameter 14 mm
Eyepiece Focal Length 27 mm
Eye Relief 25 mm
Eyepiece Diopter Adjustment -6 to +2 diopters
Built-in IR Illuminator
— Power
— Illumination Range
— Focus Distance
— Illumination Wavelength 50 mW
20 m
3 m
850 nm
* Optional.
TABLE 2-5. ENVIRONMENTAL DATA
ITEM DATA
Operating Temperature -40 to +50 °C
Storage Temperature -50 to +70 °C
Humidity 95 %, 25 °C to 40 °C for 48 hr
Illumination Required Natural night illumination
(overcast starlight to moonlight)
Immersion 20 m for 1 hr
MIL-STD-810 Complies
2.3 STANDARD COMPONENTS
The standard components of the NYX-14 are shown in Figure 2-2 and listed in Table 2-6.
The ITEM NO. column indicates the number used to identify items in Figure 2-2.
1
2
3
4
5 6
7

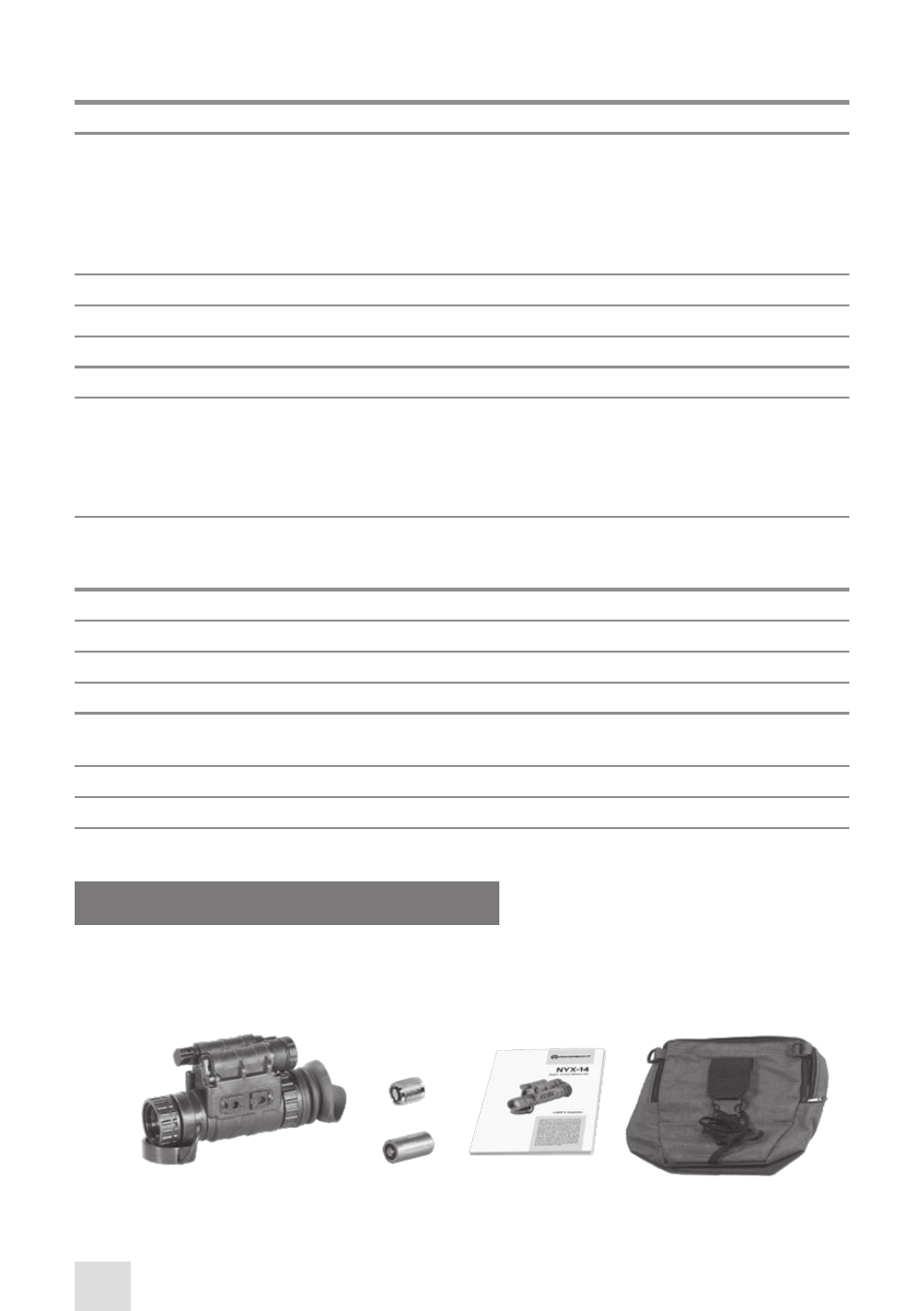

FIGURE 2-2. NYX-14 STANDARD COMPONENTS
TABLE 2-4. CONTINUED
