22
4. While pushing down on the lever holder (F), turn the lever (E) forward.
5. Install the NYX-14 on the QRM rail by inserting the stop (G) into the transverse slot of the unit rail.
6. Attach the NYX-14 to the QRM rail by turning the lever (E) backwards. Secure the QRM clamping
device (H tightly to the NYX-14 rail. To adjust the force of the lever clamp, loosen or tighten the nut (I)
as necessary.
A
B
F
D
B
A

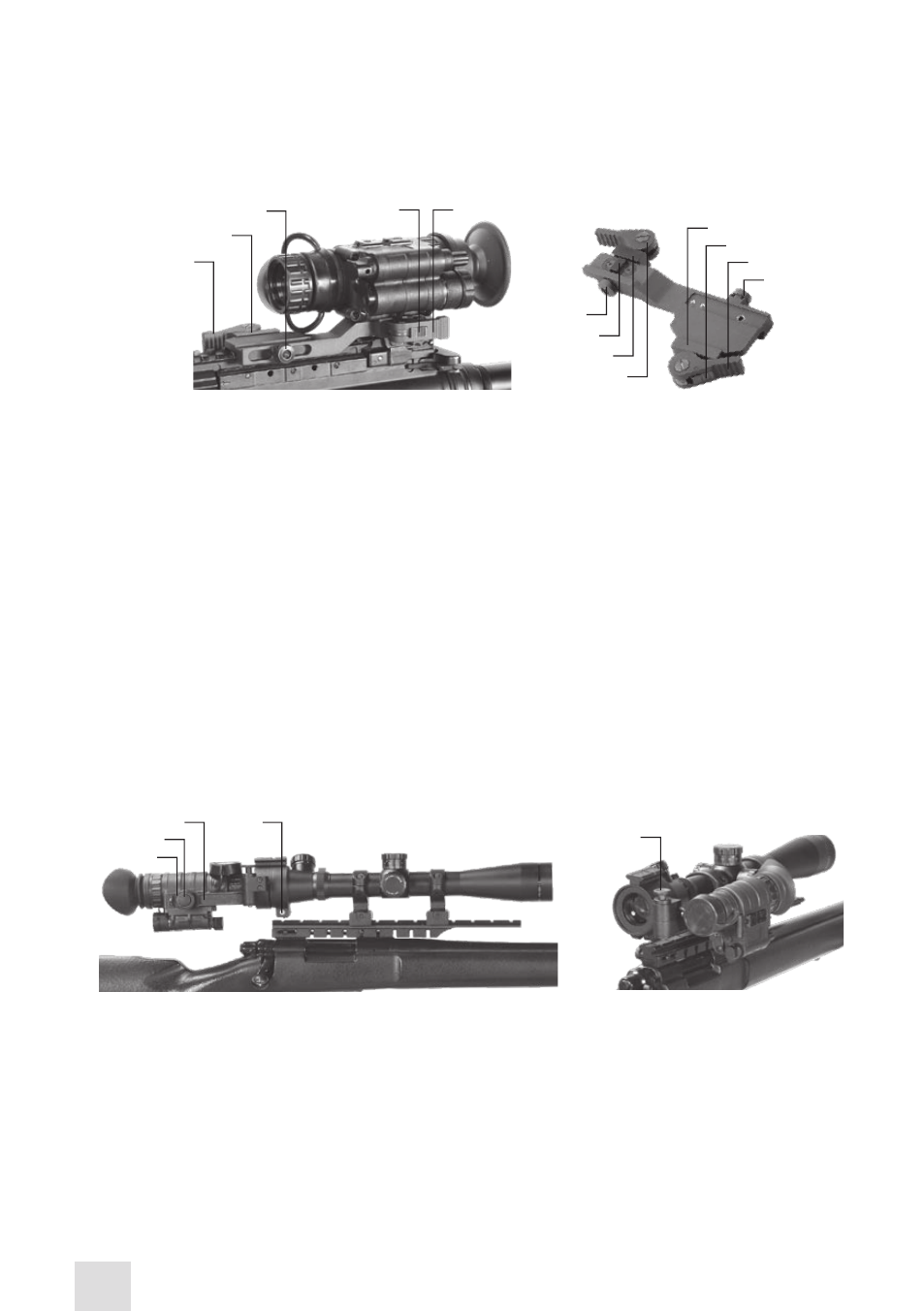

FIGURE 3-4. MOUNTING THE NYX-14 TO A WEAPON WITH A qUICK-RELEASE PICATINNY
MOUNT ADAPTER
E
C
D
G
I
H
E
3.1.5 MOUNTING THE NYX-14 TO A SCOPE
To mount the NYX-14 to a daytime scope using an optional flip-up scope adapter, perform the follow-
ing:
1. Loosen the adapter’s fixing screw (A).
2. Install the insert into the adapter (Armasight supplies inserts of different sizes for coupling with 38-
43mm eyepieces).
3. To attach the NYX-14 to the adapter bracket (B), push down on the button (C), loosen the fixing screw
(D), and insert the unit rail into the bracket guide. Tighten the screw (D) to secure the NYX-14 to the
bracket.
4. Insert the daytime riflescope eyepiece into the adapter (now attached to the NYX-14). Be sure to leave
a small space between the riflescope eyepiece and the monocular’s front lens.
5. Tighten the adapter fixing screw (A).
6. To work solely with the daytime scope, push down on the button (E) and flip the NYX-14 over (180º).
D
B
C
FIGURE 3-5. MOUNTING THE NYX-14 TO A SCOPE
E
A
3.1.6 MOUNTING AN IR ILLUMINATOR TO THE NYX-14
To mount an IR illuminator to the NYX-14, use the optional Dovetail to Weaver Transfer Piece. Perform
the following steps:
1. Install the transfer piece (A) onto one of the NYX-14 rails.
2. Tighten the two fixing screws (B) on the transfer piece .
