ASUS RS920A-E6/RS8; RS924A-E6/RS8
2.3
System memory
2.3.1
Overview
The motherboard comes with thirty-two (32) Double Data Rate 3 (DDR3) Dual
Inline Memory Modules (DIMM) sockets.

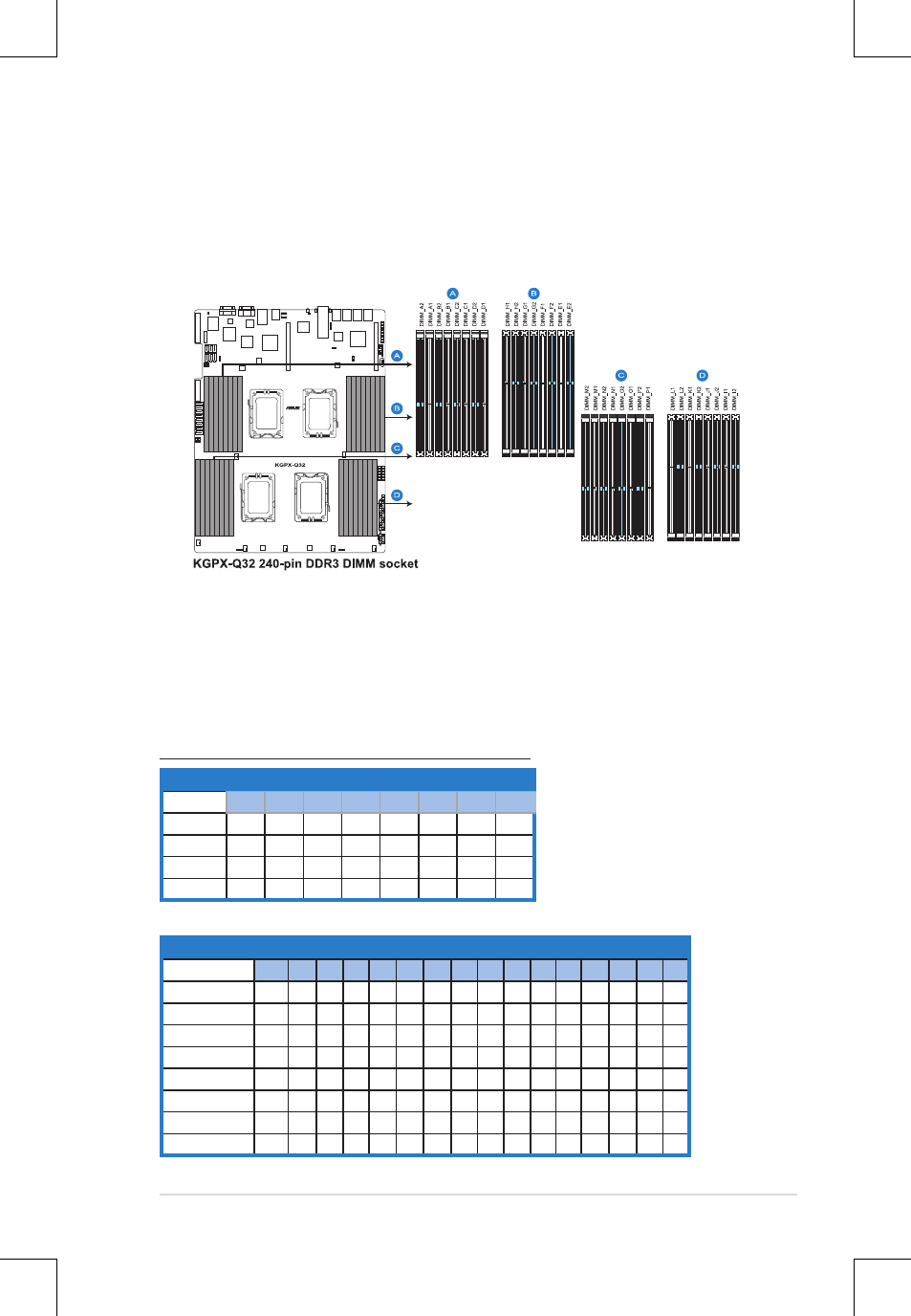

The figure illustrates the location of the DDR3 DIMM sockets:
2.3.2
Memory Configurations
You may install 1GB/2GB/4GB/8GB/16GB Registerd or 1GB/2GB/4GB Unbuffered
with ECC/Non-ECC DDR3 DIMMs into the DIMM sockets using the memory
configurations in this section.
Memory population table
For UDIMM and RDIMM (Single Rank, Dual Ranks)
CPU1 Configuration
A2 A1 B2 B1 C2 C1 D2 D1
2 DIMMs V
V
4 DIMMs V
V
V
V
6 DIMMs V
V
V
V
V
V
8 DIMMs V
V
V
V
V
V
V
V
CPU1+CPU2 Configuration
A2 A1 B2 B1 C2 C1 D2 D1 E2 E1 F2 F1 G2 G1 H2 H1
2 DIMMs
V
V
4 DIMMs
V
V
V
V
6 DIMMs
V
V
V
V
V
V
8 DIMMs
V
V
V
V
V
V
V
V
10 DIMMs
V
V V
V
V
V V V
V
V
12 DIMMs
V
V V
V V V
V V V
V V V
14 DIMMs
V
V V V V V V
V V V V V V V
16 DIMMs
V
V V V V V V V V V V V V V V V
