2 lan (rj-45) leds, Lan5 leds, Lan1 to lan4 leds – Asus RS924A-E6/RS8 User Manual
Page 21
ASUS RS920A-E6/RS8; RS924A-E6/RS8
1-9

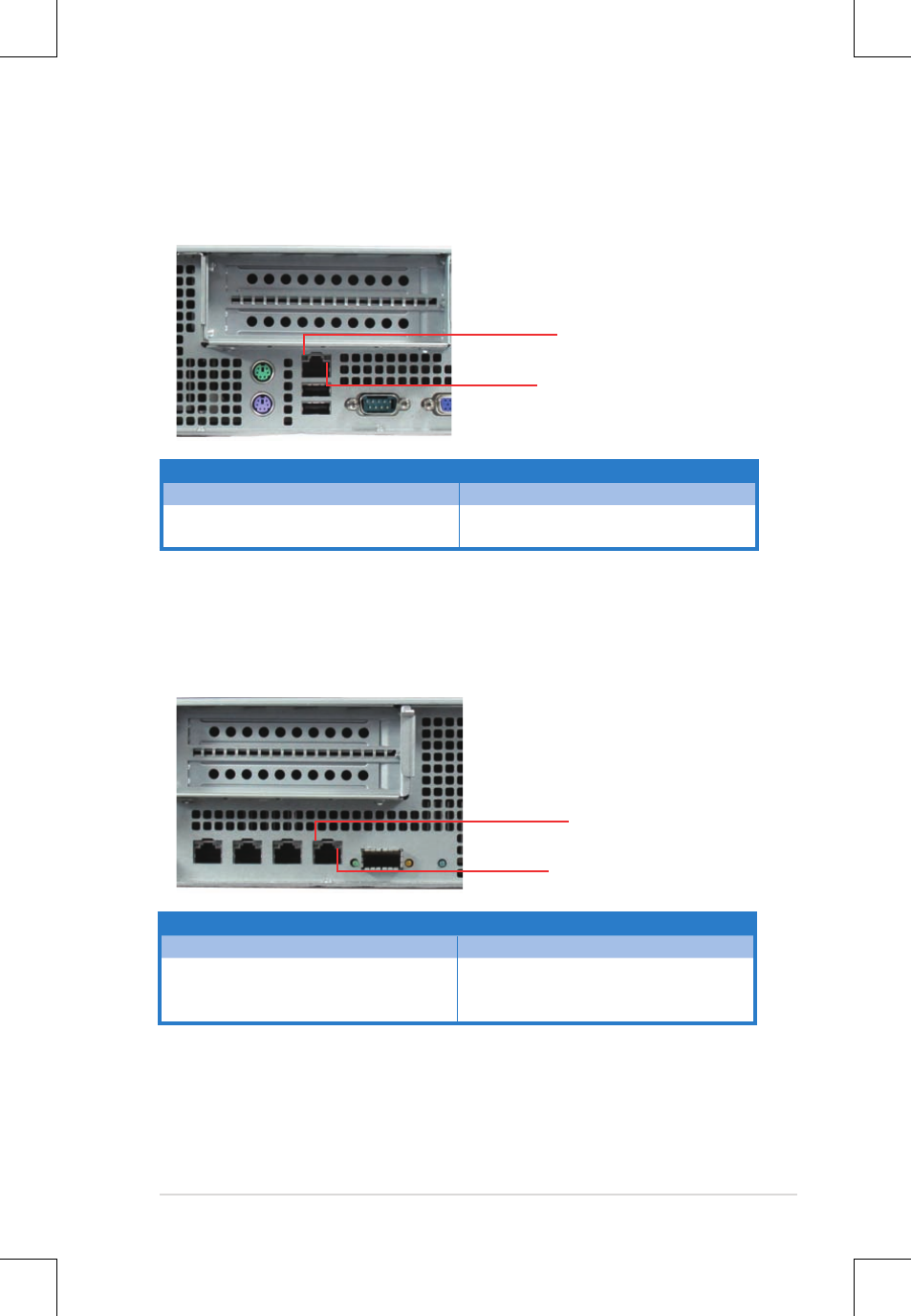

1.7.2
LAN (RJ-45) LEDs
ACT/LINK LED
SPEED LED
Status
Description
Status
Description
OFF
No link
OFF
10 Mbps connection
GREEN
Linked
ORANGE
100 Mbps connection
ACT/LINK LED
SPEED LED
LAN5 LEDs
ACT/LINK LED
SPEED LED
Status
Description
Status
Description
OFF
No link
OFF
10 Mbps connection
GREEN
Linked
ORANGE
100 Mbps connection
BLINKING
Data activity
GREEN
1 Gbps connection
SPEED LED
ACT/LINK LED
LAN1 to LAN4 LEDs
