3.. Serial.ATA.connectors.(7-pin.SATA1.[red],.SATA2.[red],.SATA3.[black],.
SATA4.[black])
These connectors are for the Serial ATA signal cables for Serial ATA hard disk
drives.

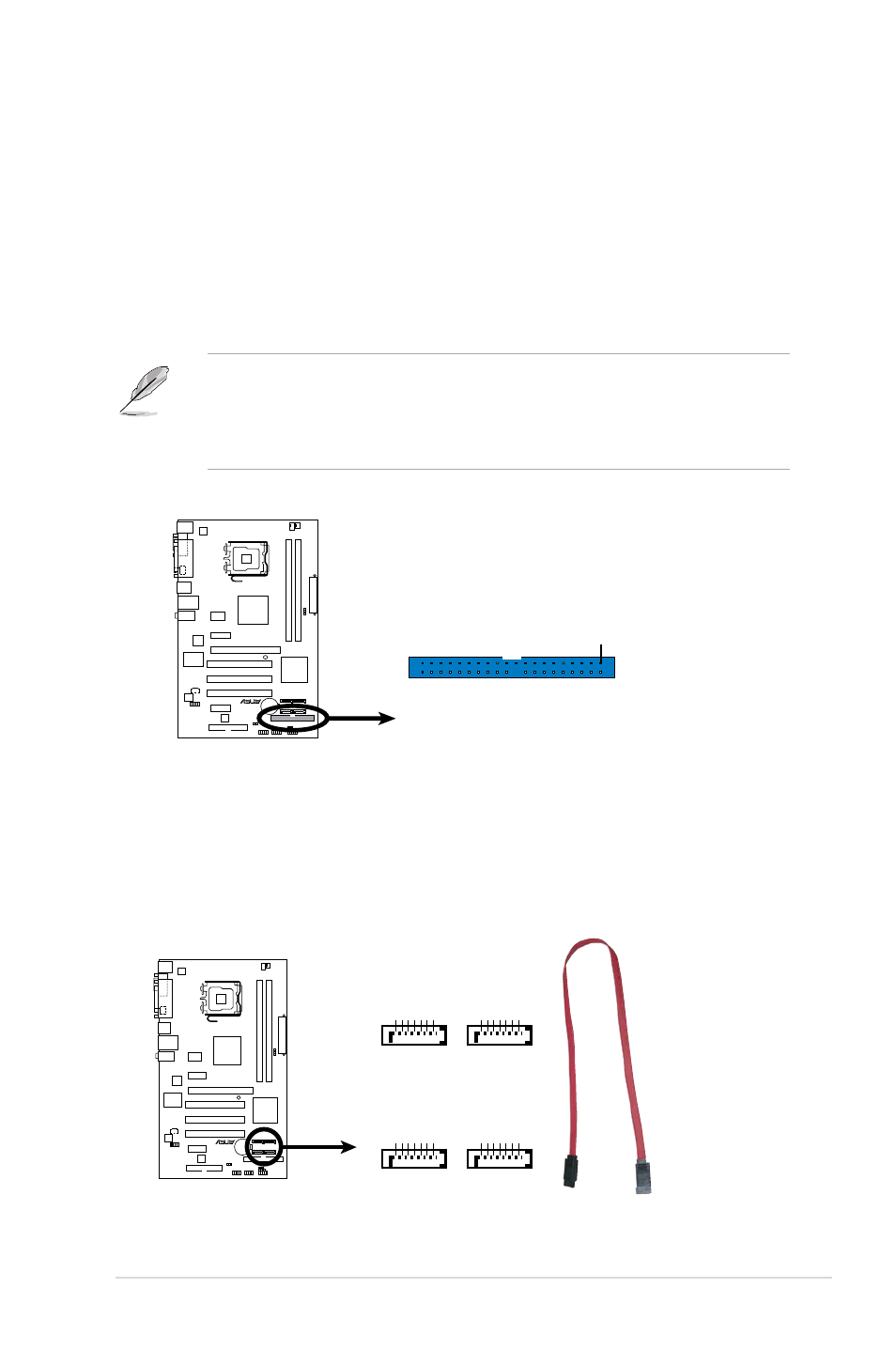

P5LD2-X/1333.SATA.Connectors
G
ND
RS
AT
A_
TX
P1
RS
AT
A_
TX
N1
G
ND
RS
AT
A_
RX
P1
RS
AT
A_
RX
N1
G
ND
G
ND
RS
AT
A_
TX
P2
RS
AT
A_
TX
N2
G
ND
RS
AT
A_
RX
P2
RS
AT
A_
RX
N2
G
ND
SATA1 SATA2
G
ND
RS
AT
A_
TX
P3
RS
AT
A_
TX
N3
G
ND
RS
AT
A_
RX
P3
RS
AT
A_
RX
N3
G
ND
G
ND
RS
AT
A_
TX
P4
RS
AT
A_
TX
N4
G
ND
RS
AT
A_
RX
P4
RS
AT
A_
RX
N4
G
ND
SATA3 SATA4
P5LD2-X/1333
2.. ICH7.Primary.IDE.connector.(40-1.pin.PRI_IDE)
This connector is for an Ultra DMA 100/66/33 signal cable. The Ultra
DMA 100/66/33 signal cable has three connectors: a blue connector for the
primary IDE connector on the motherboard, a black connector for an Ultra
DMA 100/66/33 IDE slave device (optical drive/hard disk drive), and a gray
connector for an Ultra DMA 100/66/33 IDE master device (hard disk drive).
If you install two hard disk drives, you must configure the second drive
as a slave device by setting its jumper accordingly. Refer to the hard disk
documentation for the jumper settings.
• Pin 20 on the IDE connector is removed to match the covered hole on the
Ultra DMA cable connector. This prevents incorrect insertion when you
connect the IDE cable.
• Use the 80-conductor IDE cable for Ultra DMA 100/66/33 IDE devices.
P5LD2-X/1333.IDE.Connector
NOTE: Orient the red markings
(usually zigzag) on the ID
ribbon cable to PIN 1.
PRI_IDE PIN1
P5LD2-X/1333
