ASUS P5LD2-X/1333 2-23

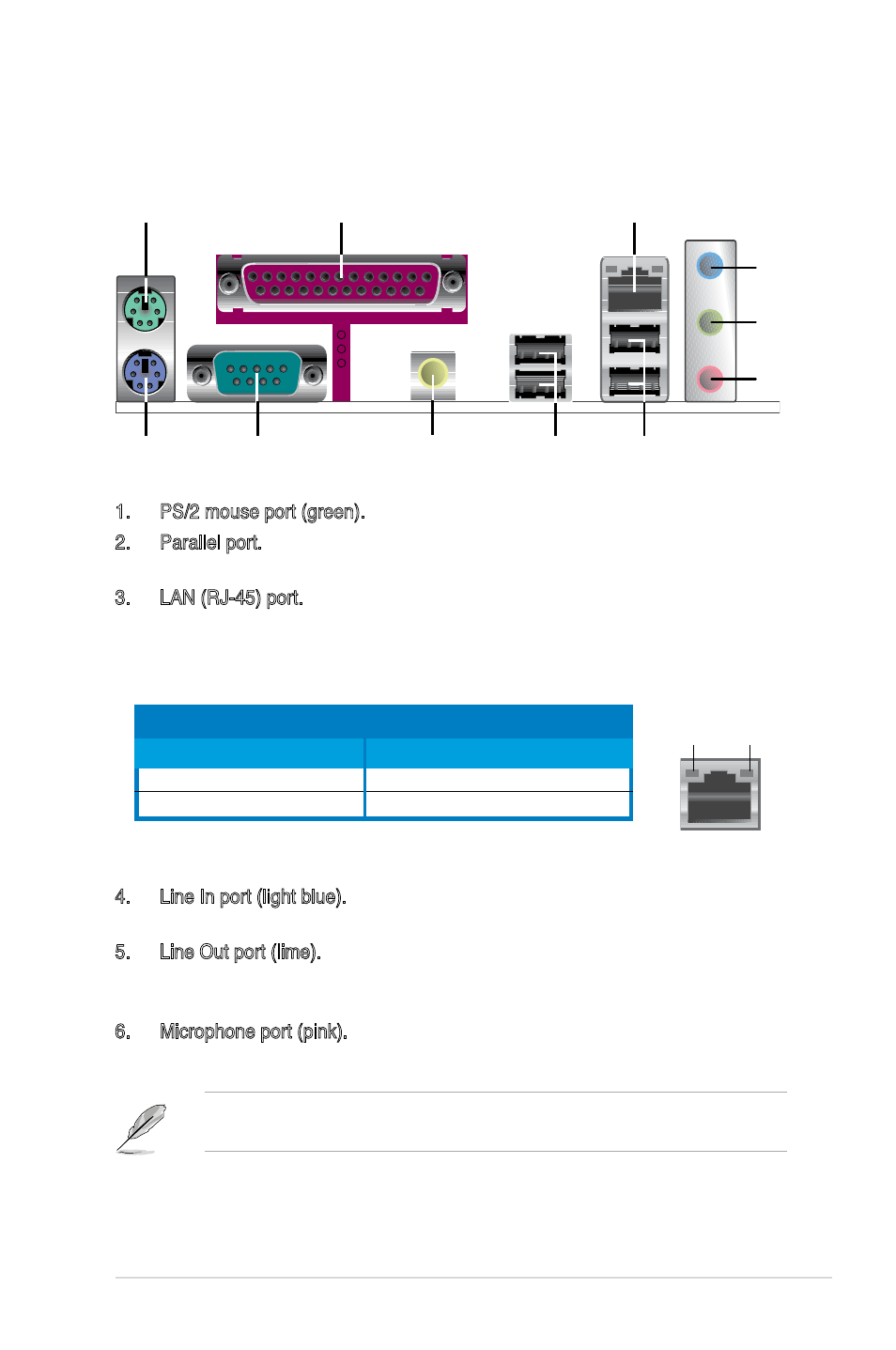

2.7 Connectors
2.7.1. Rear.panel.connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. LAN (RJ-45) port. This port allows 10/100Mb connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
4. Line In port (light blue). This port connects a tape, CD, DVD player, or other
audio sources.
5. Line Out port (lime). This port connects a headphone or a speaker. In 4-
channel, and 6-channel configuration, the function of this port becomes Front
Speaker Out.
6. Microphone port (pink). This port connects a microphone.
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked Orange 100 Mbps connection
LAN port LED indications
LAN.port
SPEED.
LED
ACT/LINK.
.LED
1
11
4
5
6
7
2 3
10 8 9
Refer to the audio configuration table on next page for the function of the audio
ports in 2, 4, or 6-channel configuration.
