10.. ATX.power.connectors.(24-pin.EATXPWR,.4-pin.EATX12V)
These connectors are for ATX power supply plugs. The power supply plugs are
designed to fit these connectors in only one orientation. Find the proper orientation and
push down firmly until the connectors completely fit.
• For a fully configured system, we recommend that you use a power supply unit (PSU)
that complies with ATX 12 V Specification 2.0 (or later version) and provides a minimum
power of 400 W.
• Do not forget to connect the 4-pin ATX12V power plug; otherwise, the system will not
boot.
• Use of a PSU with a higher power output is recommended when configuring a system
with more power-consuming devices. The system may become unstable or may not boot
up if the power is inadequate.
• If you are uncertain about the minimum power supply requirement for your system,
refer to the Recommended Power Supply Wattage Calculator at http://support.asus.
com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.
• The ATX 12 V Specification 2.0-compliant (400W) PSU has been tested to support the
motherboard power requirements.
P5KPL SE

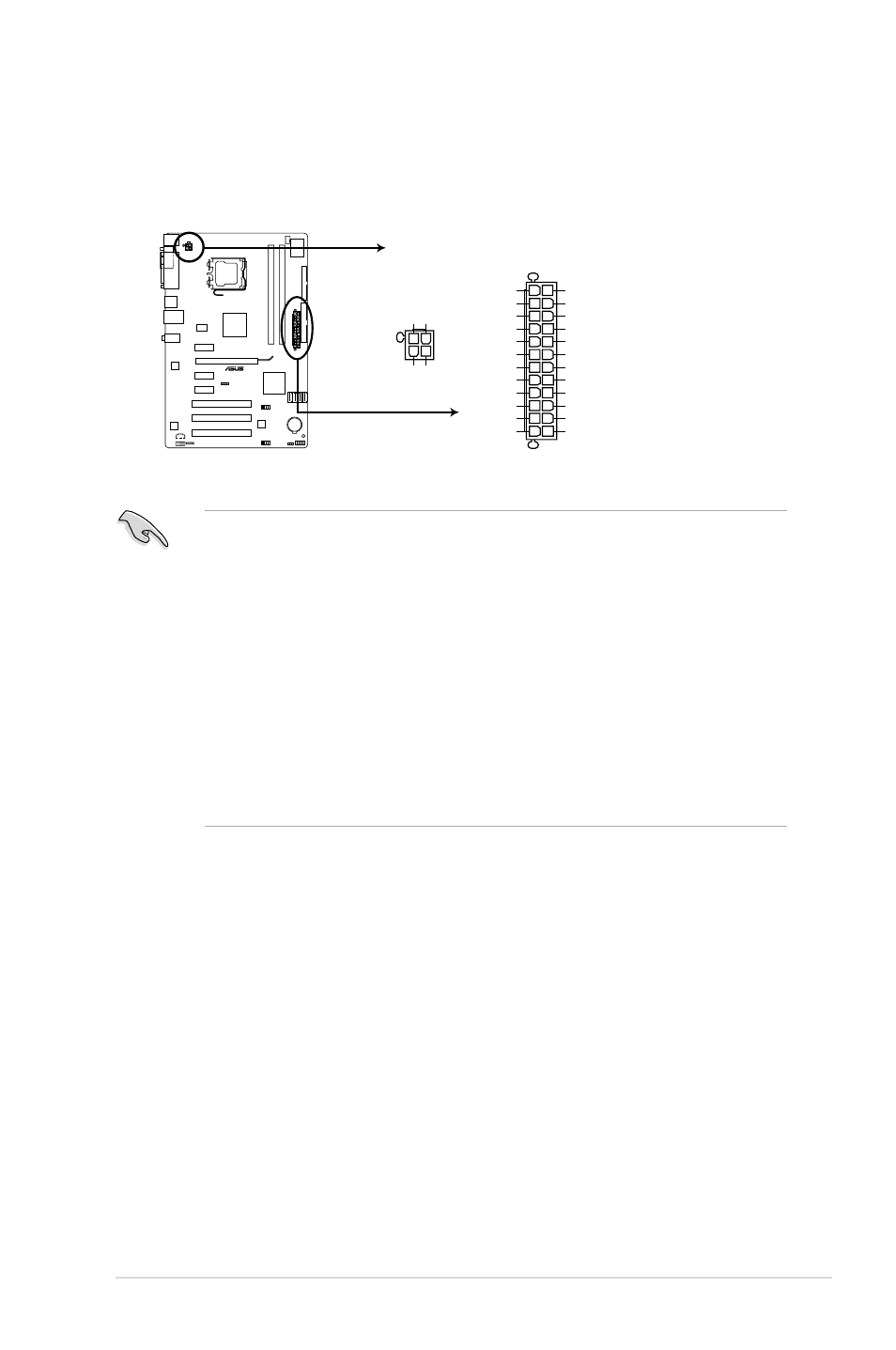

P5KPL SE ATX power connectors
EATXPWR
PIN 1
+3 Volts
-12 Volts
GND
PSON#
GND
GND
GND
-5 Volts
+5 Volts
+5 Volts
+5 Volts
GND
+3 Volts
+3 Volts
GND
+5 Volts
GND
+5 Volts
GND
Power OK
+5V Standby
+12 Volts
+12 Volts
+3 Volts
ATX12V
PIN 1
+12V DC +12V DC
GND GND
