ASUS P5KPL SE 1-19
1.10. Connectors

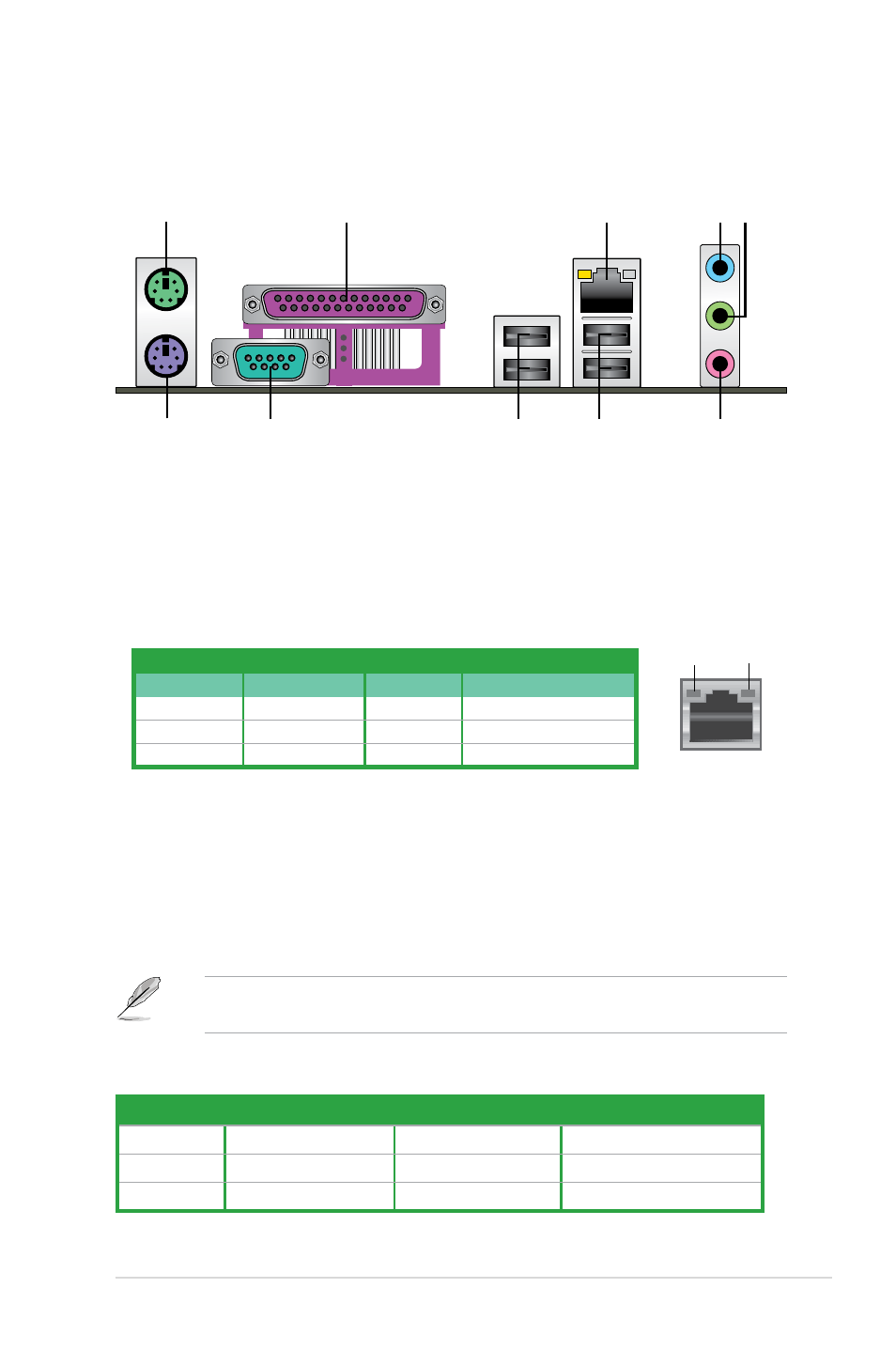

1.10.1. Rear.panel.connectors
4 5 3
6 8 7
2
9
1
10
Refer to the audio configuration table on the next page for the function of the audio ports in
2, 4, or 6-channel configuration.
LAN.port.LED.indications
SPEED.
LED
ACT/LINK.
LED
LAN.port
Activity/Link.LED Speed.LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
1.. PS/2.mouse.port.(green). This port is for a PS/2 mouse.
2.. Parallel.port..This 25-pin port connects a parallel printer, a scanner, or other devices.
3.. LAN.(RJ-45).port. Supported by L1 PCIE Gigabit LAN controller, this port allows
Gigabit connection to a Local Area Network (LAN) through a network hub. Refer to the
table below for the LAN port LED indications.
4.. Line.In.port.(light.blue). This port connects the tape, CD, DVD player, or other audio
sources.
5.. Line.Out.port.(lime)..This port connects a headphone or a speaker. In 4-channel and
6-channel configuration, the function of this port becomes Front Speaker Out.
6.. Microphone.port.(pink). This port connects a microphone. In a 6-channel
configuration, the function of this port becomes Center/Bass.
Audio 2, 4, or 6-channel configuration
Port Headset.2-channel 4-channel 6-channel
Light Blue Line In Rear Speaker Out Rear Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Bass/Center
