3. HARDWARE SETUP
DMA Channels 3. H/W SETUP
Connectors
3. H/W SETUP

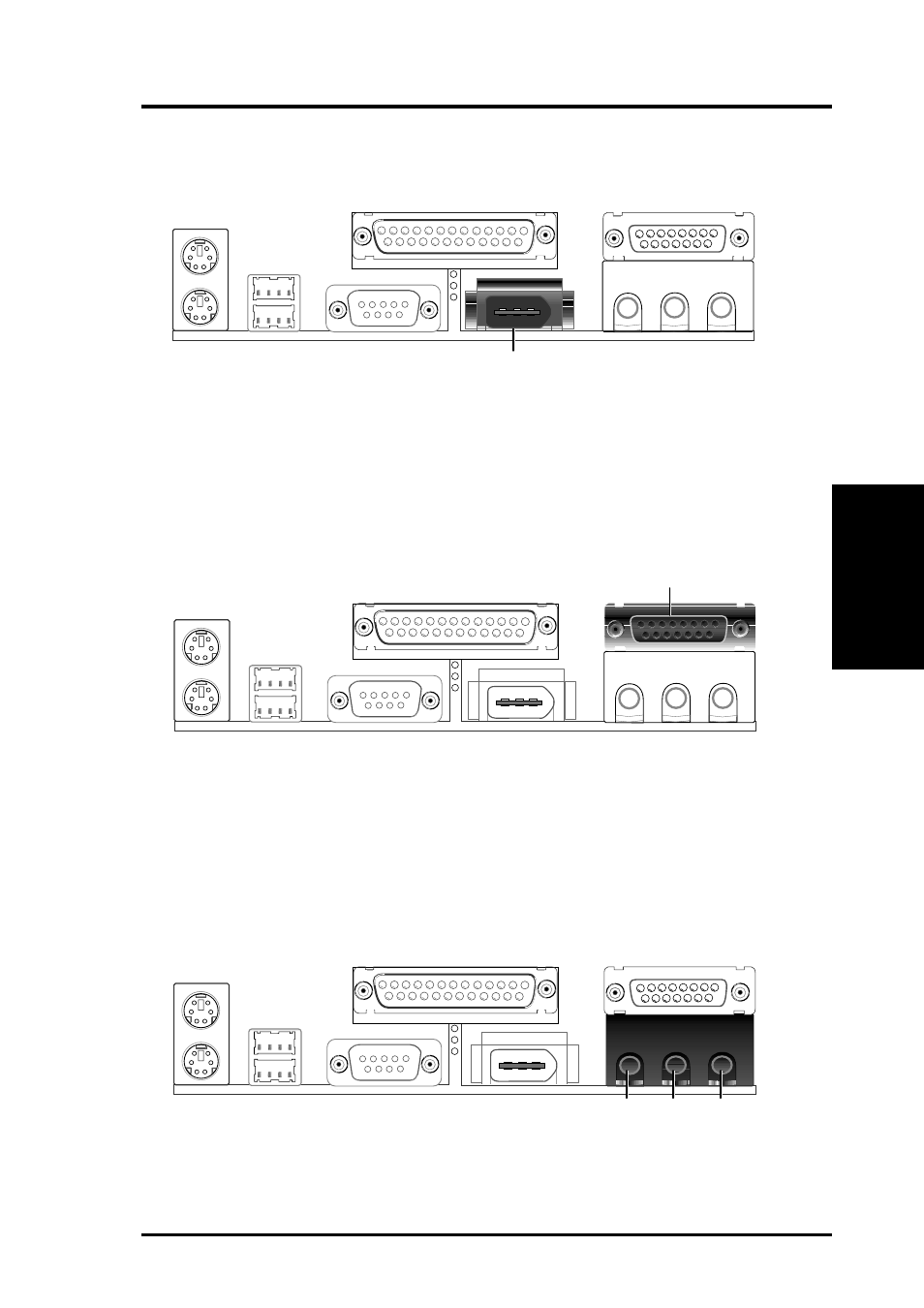

6) IEEE-1394 Connector (6-pin 1394_CON)
This connector supports external devices with a 6-pin IEEE-1394 connector.
IEEE-1394 (6 pins)
7) Joystick/MIDI Connector (15-pin GAME_AUDIO) (with optional onboard audio)
You may connect game joysticks or game pades to this connector for playing
games. Connect MIDI devices for playing or editing audio.
Joystick/Midi (15-pin Female)
8) Audio Port Connectors (Three 1/8” Female) (with optional onboard audio)
Line Out can be connected to headphones or preferably powered speakers.
Line In allows tape players or other audio sources to be recorded by your com-
puter or played through the Line Out. Mic allows microphones to be connected
for inputting voice.
Mic Line In Line Out
1/8" Stereo Audio Connectors
