ASUS P/I-P65UP5 User's Manual 11
III. INSTALLATION
DRAM Memory Installation Procedures:
IMPORTANT: Install memory modules in symmetric pairs.
1. The SIMM memory modules will only fit in one orientation as shown because
of a "Plastic Safety Tab" on one end of the SIMM slots which requires the
"Notched End" of the SIMM memory modules.

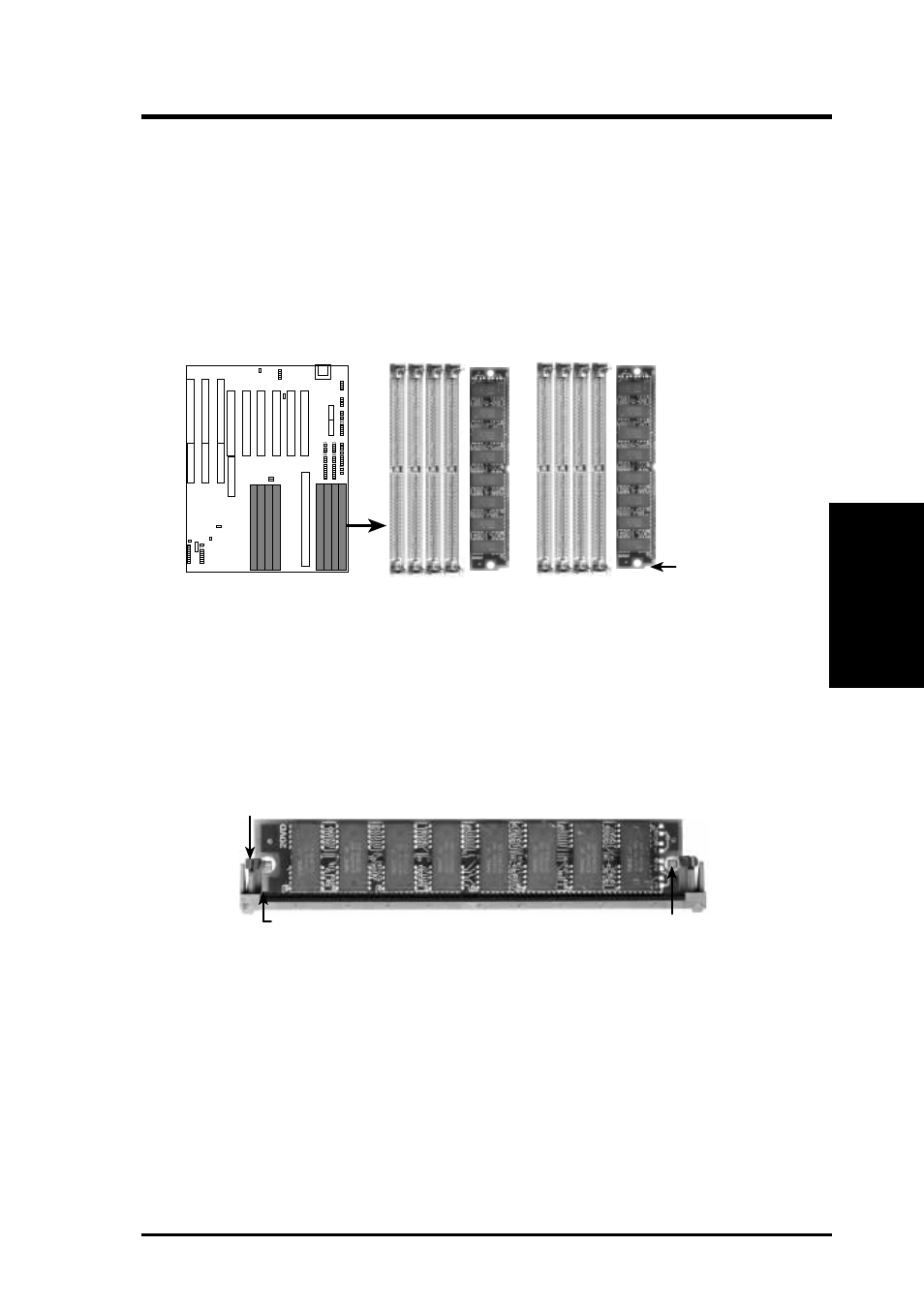

72 Pin SIMM DRAM Sockets & Module
2 4 6 8 1 3 5 7
Notched End
B0 B1 B2 B3 B0 B1 B2 B3
B=Bank
2. Press the memory module firmly into place starting from a 45 degree angle
making sure that all the contacts are aligned with the slot.
3. With your finger tips, rock the memory module into a vertical position so that
it clicks into place.
Metal Clip
Plastic Safety Tab (This Side Only) Mounting Hole
72 Pin DRAM in SIMM Socket
4. The plastic guides should go through the two "Mounting Holes" on the sides
and the "Metal Clips" should snap on the other side.
5. To release the memory module, squeeze both "Metal Clips" outwards and rock
the module out of the "Metal Clips".
(DRAM Memory)
