6 ASUS P/I-P65UP5 User's Manual
III. INSTALLATION
Installation Steps
Before using your computer, you must complete the following steps:
1. Set Jumpers on the Baseboard
2. Install DRAM Memory Modules
3. Install the Central Processing Unit (CPU) Card
4. Install Expansion Cards
5. Connect Ribbon Cables, Cabinet Wires, and Power Supply
6. Setup the BIOS Software (see the CPU Card BIOS section)
1. Jumpers
Several hardware settings are made through the use of jumper caps to connect jumper
pins (JP) on the baseboard. See "Map of the Baseboard" on page 4 for locations of

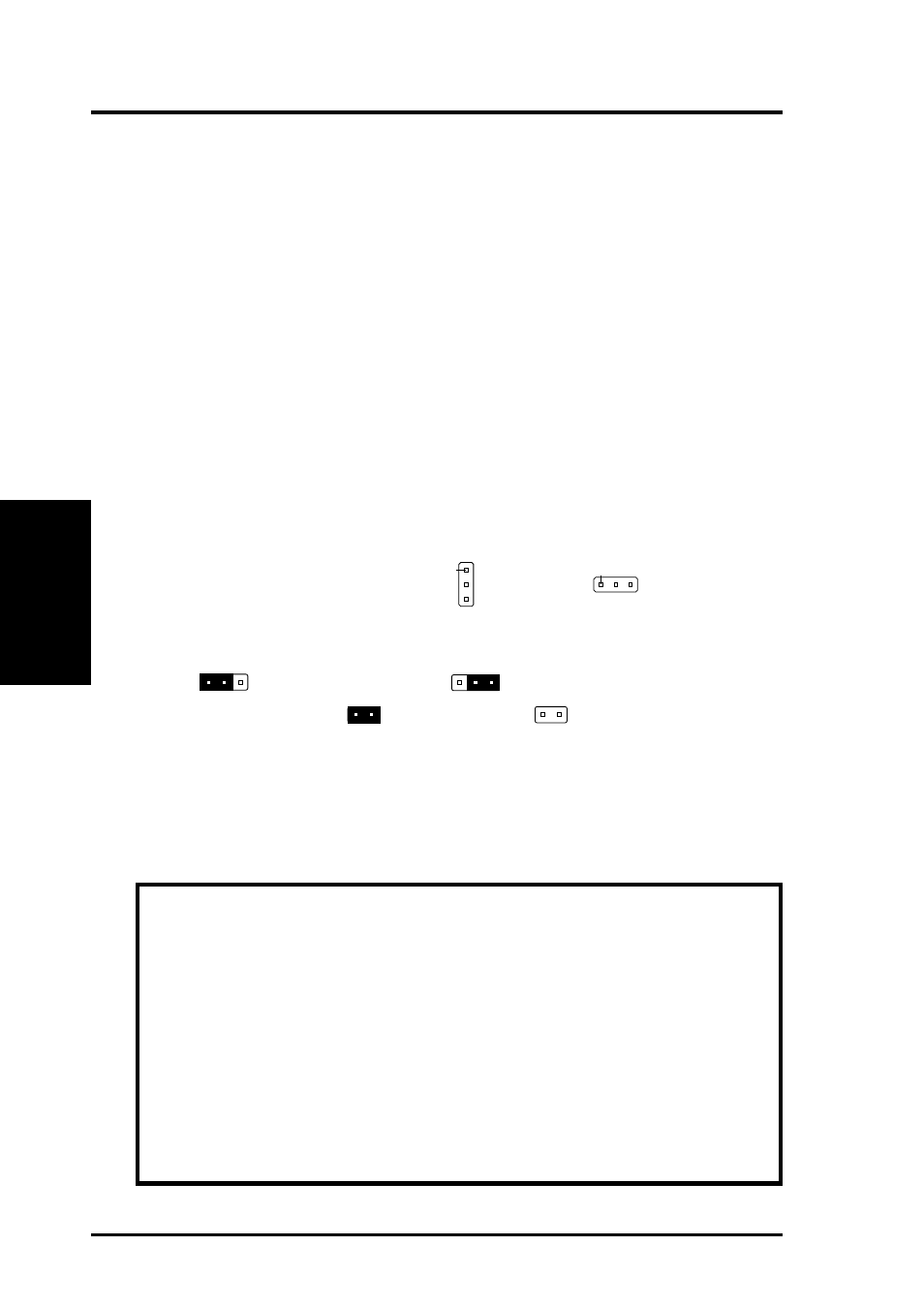

jumpers. The jumper settings will be described numerically such as [----], [1-2],
[2-3] for no connection, connect pins 1&2, and connect pins 2&3 respectively. Pin
1 for our baseboards is always on top
Pin 1
or on the left
Pin 1
when holding the
baseboard with the keyboard connector away from yourself. A "1" is written be-
sides pin 1 on jumpers with three pins. The jumpers will also be shown graphically
such as to connect pins 1&2 and to connect pins 2&3. Jumpers with
two pins will be shown as for short (On) and for open (Off). For manu-
facturing simplicity, the jumpers may be sharing pins from other groups. Use the
diagrams in this manual instead of following the pin layout on the board. Settings
with two jumper numbers require that both jumpers be moved together. To connect
the pins, simply place a plastic jumper cap over the two pins as diagramed.
(Jumpers)
III. INST
ALLA
TION
WARNING: Computer motheboards and components contain very delicate
Integrated Circuit (IC) chips. To protect the motherboard and other components
against damage from static electricity, you should follow some precautions when-
ever you work on your computer.
1. Unplug your computer when working on the inside.
2. Hold components by the edges and try not to touch the IC chips, leads, or
circuitry.
3. Use a grounded wrist strap before handling computer components.
4. Place components on a grounded antistatic pad or on the bag that came with
the component whenever the components are separated from the system.
