Asus KCMR-D12 User Manual
Page 51
ASUS KCMR-D12
2-33

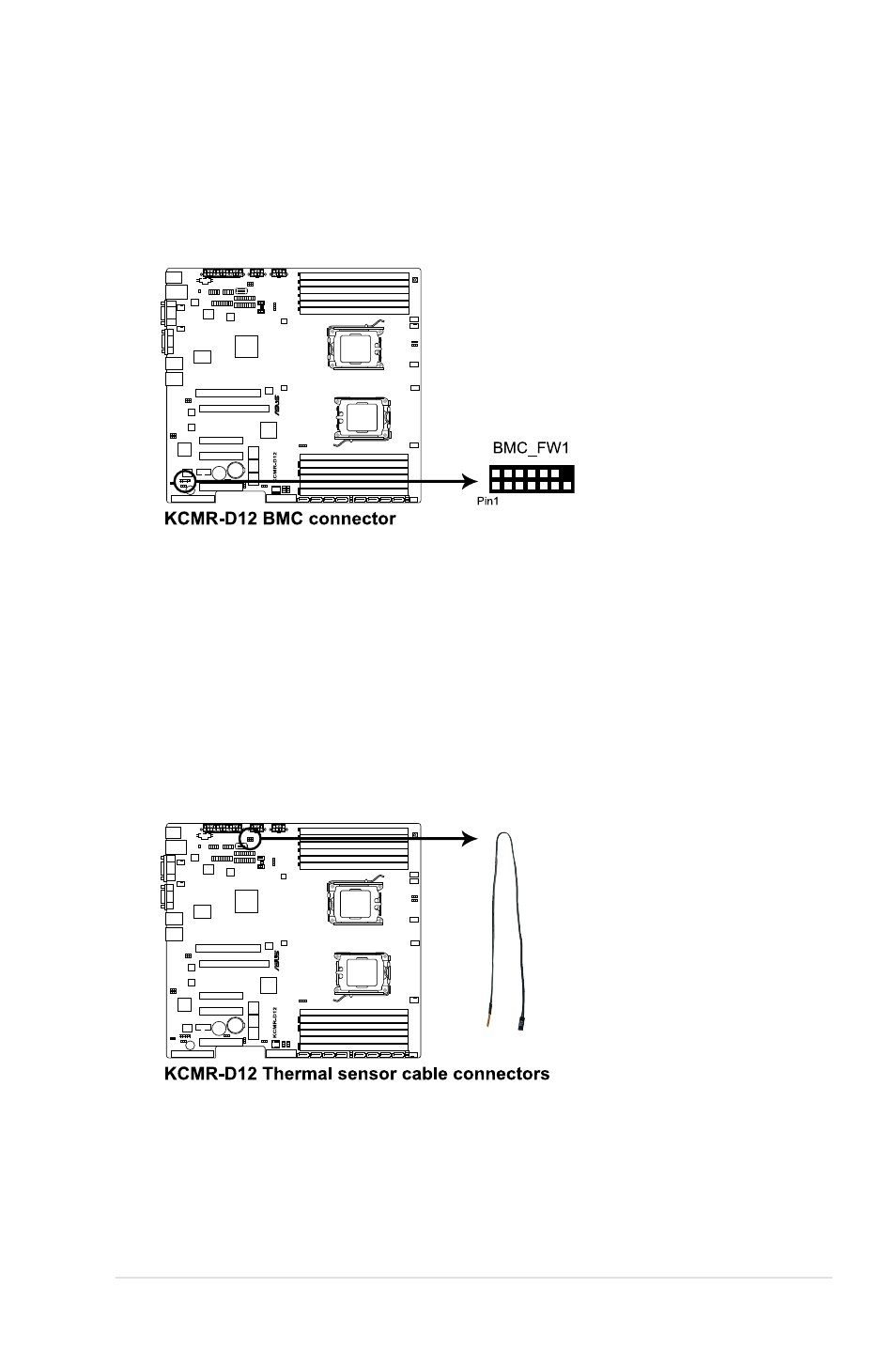

6. BMC header (BMC_FW1)
The BMC connector on the motherboard supports an ASUS
®
Server
Management Board 4 Series (ASMB4).
7. Thermal sensor cable connectors (3-pin TR1, TR2)
These connectors are for temperature monitoring. Connect the thermal
sensor cables to these connectors and place the other ends to the devices,
which you want to monitor temperature.
