ASUS KCMR-D12 2-11

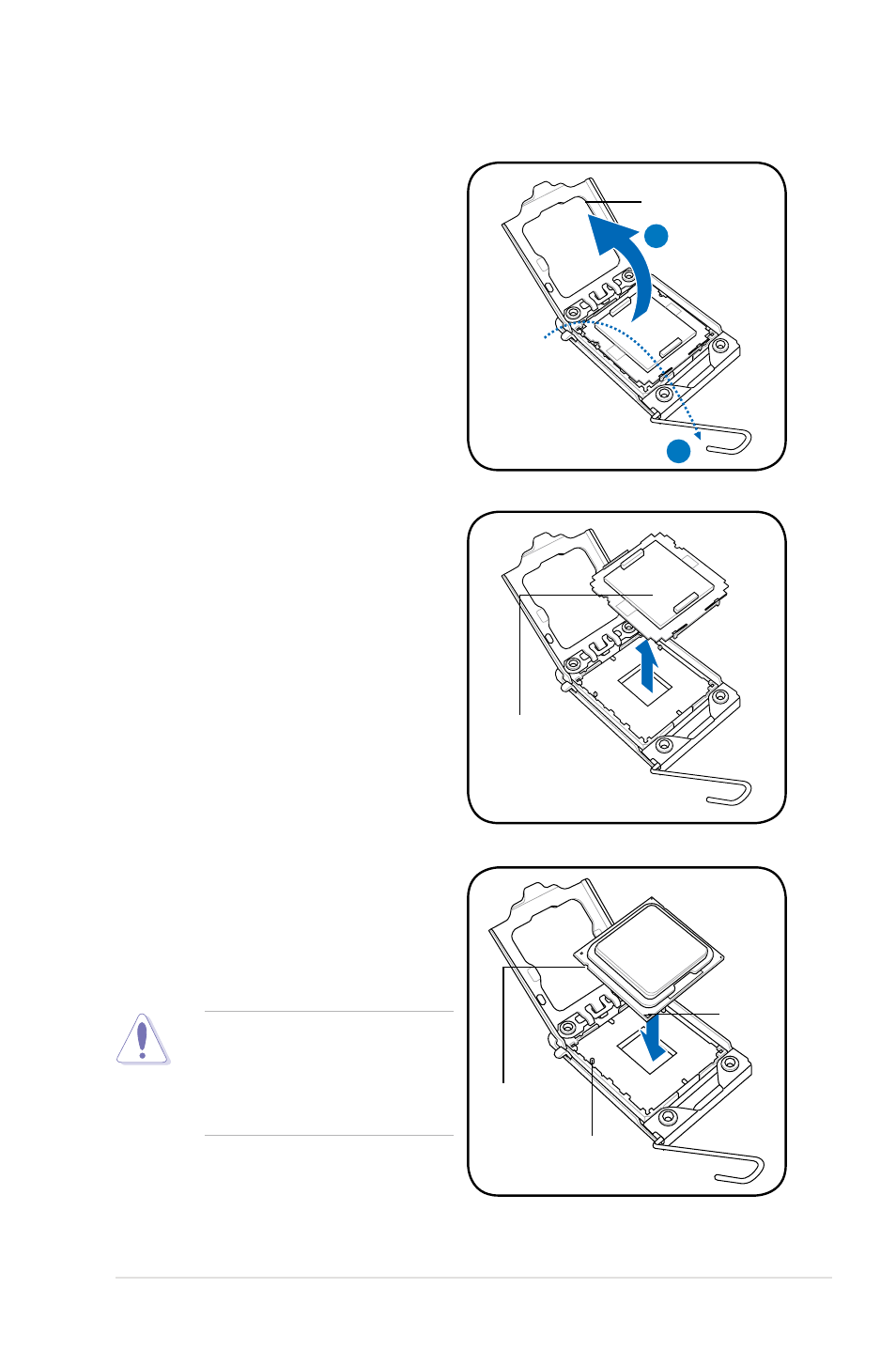

3. Lift the load lever in the direction of
the arrow to a 135º angle.
4. Lift the load plate with your thumb
and forefinger to a 100º angle.
Load plate
4
3
5. Remove the PnP cap from the CPU
socket.
PnP cap
The CPU fits in only one correct
orientation. DO NOT force the
CPU into the socket to prevent
bending the connectors on the
socket and damaging the CPU!
6. Position the CPU over the socket,
ensuring that the gold triangle is on
the bottom-left corner of the socket,
and then fit the socket alignment key
into the CPU notch.
Gold
triangle
mark
Alignment key
CPU notch
