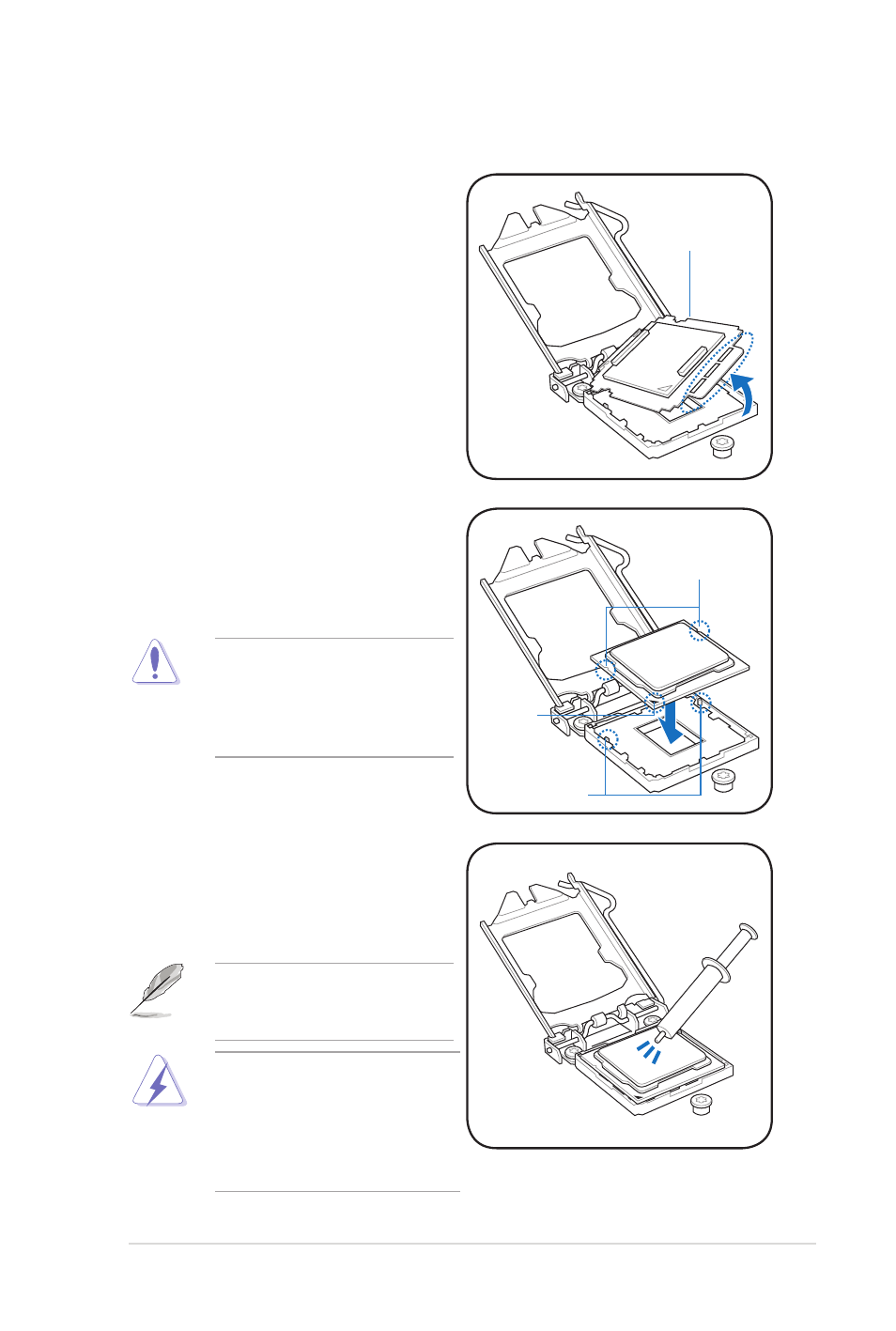

4. Remove the PnP cap from the CPU

socket.

The CPU fits in only one correct

orientation. DO NOT force the

CPU into the socket to prevent

bending the connectors on the

socket and damaging the CPU!

5. Position the CPU over the socket,

ensuring that the gold triangle is on

the bottom-left corner of the socket,

and then fit the socket alignment

keys into the CPU notches.

Gold

triangle

mark

Alignment keys

CPU notches

PnP cap

6. Apply some Thermal Interface

Material to the exposed area of

the CPU that the heatsink will be

in contact with, ensuring that it is

spread in an even thin layer.

Some heatsinks come with

pre-applied thermal interface

material. If so, skip this step.

The Thermal Interface Material is

toxic and inedible. DO NOT eat it.

If it gets into your eyes or touches

your skin, wash it off immediately,

and seek professional medical

help.

ASUS P7P55 WS Supercomputer

2-7
