62 Chapter 4: Motherboard information

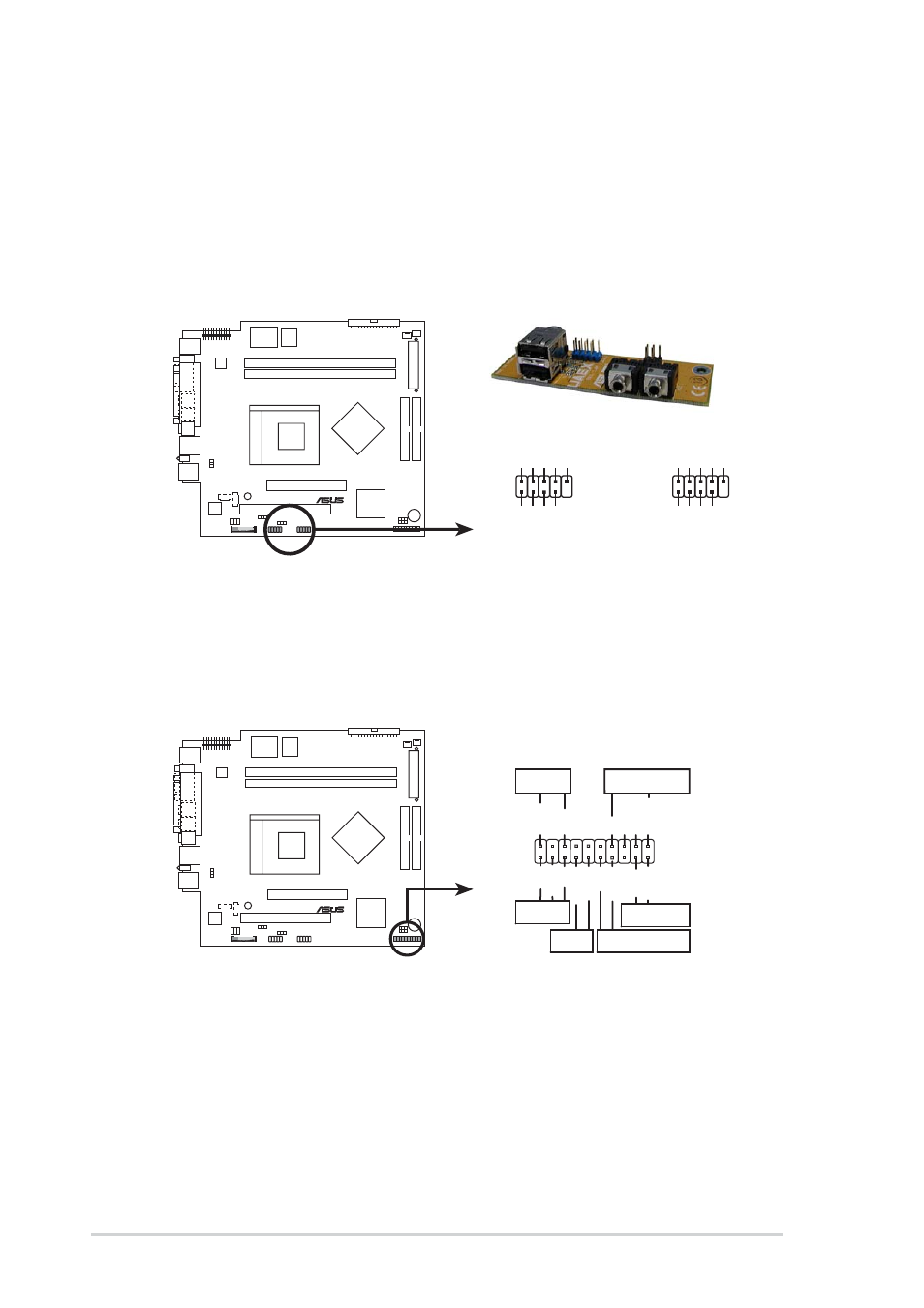

9. System panel connector (20-pin PANEL)
This connector supports several chassis-mounted functions.
A7VT
®
A7VT System panel connector
* Requires an ATX power supply.
PLED
Ground
NC
PWR
+5VSB +5V Speaker
SPEAKER PLED
Ground
HDLED
RESET
SMI
HDLED
ExtSMI#
Ground
Reset
Ground Ground
PWRBTN*
+5 V
8. USB 2.0 connectors (10-1 pin USB34, USB56)
These connectors are for USB 2.0 ports. Connect the USB module
cable to any of these connectors, then install the module to a slot
opening at the back of the system chassis. These USB connectors
comply with USB 2.0 specification that supports up to
480 Mbps connection speed.
A7VT
®
A7VT USB connectors
USB Power USBP4– USBP4+ GND NC
USB Power
USBP3– USBP3+
GND
2 10
1 9
USB Power USBP6– USBP6+ GND NC
USB Power
USBP5– USBP5+
GND
2 10
1 9
USB34 USB56
