ASUS Terminator T1 A7VT barebone system 61
6. CPU and chassis fan connectors
(3-pin CPU_FAN, CHA_FAN)
These connectors support cooling fans of 350mA~740mA (8.88W
max.) or a total of 1A~2.22A (26.64W max) at +12V. Connect the fan
cables to the fan connectors on the motherboard, making sure that
the black wire of each cable matches the ground pin of the connector.
A7VT
®

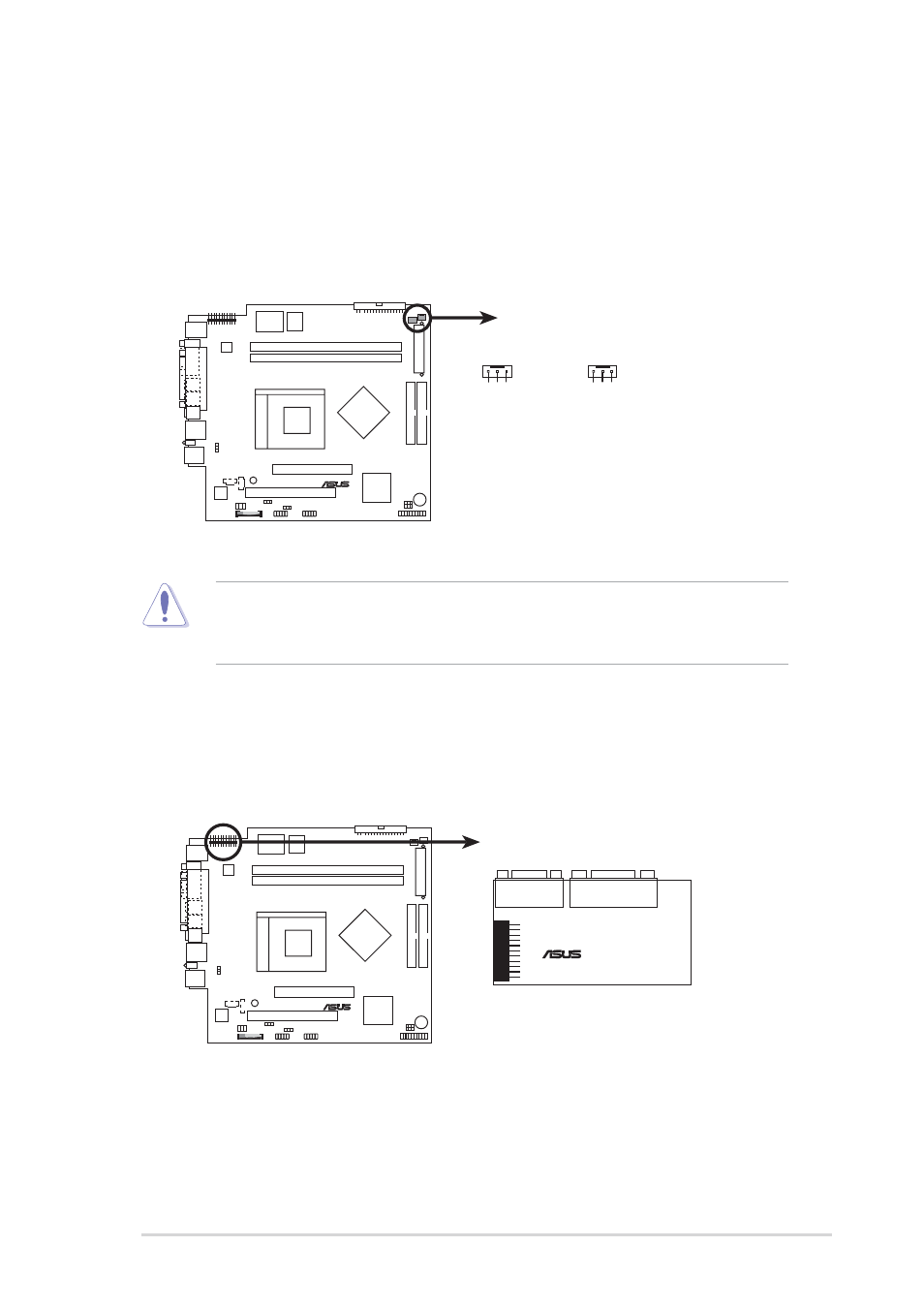

A7VT Fan connectors
CHA_FAN CPU_FAN
GND
Rotation
+12V GND
Rotation
+12V
Do not forget to connect the fan cables to the fan connectors. Insufficient
air flow inside the system may damage the motherboard components.
These are not jumpers! Do not place jumper caps on the fan connectors!
7. IO extension module connector (22-pin IOC_MB)
This connector is for the CGAEX extension module.
A7VT
®
A7VT CGAEX extension module
®
CGAEX
COM1 GAME
IOC_DC
