54 Chapter 4: Motherboard information
4.1 Introduction
The ASUS A7VT motherboard comes already installed in the ASUS
Terminator 1 A7VT barebone system. This chapter provides technical
information about the motherboard for future upgrades or system
reconfiguraiton.

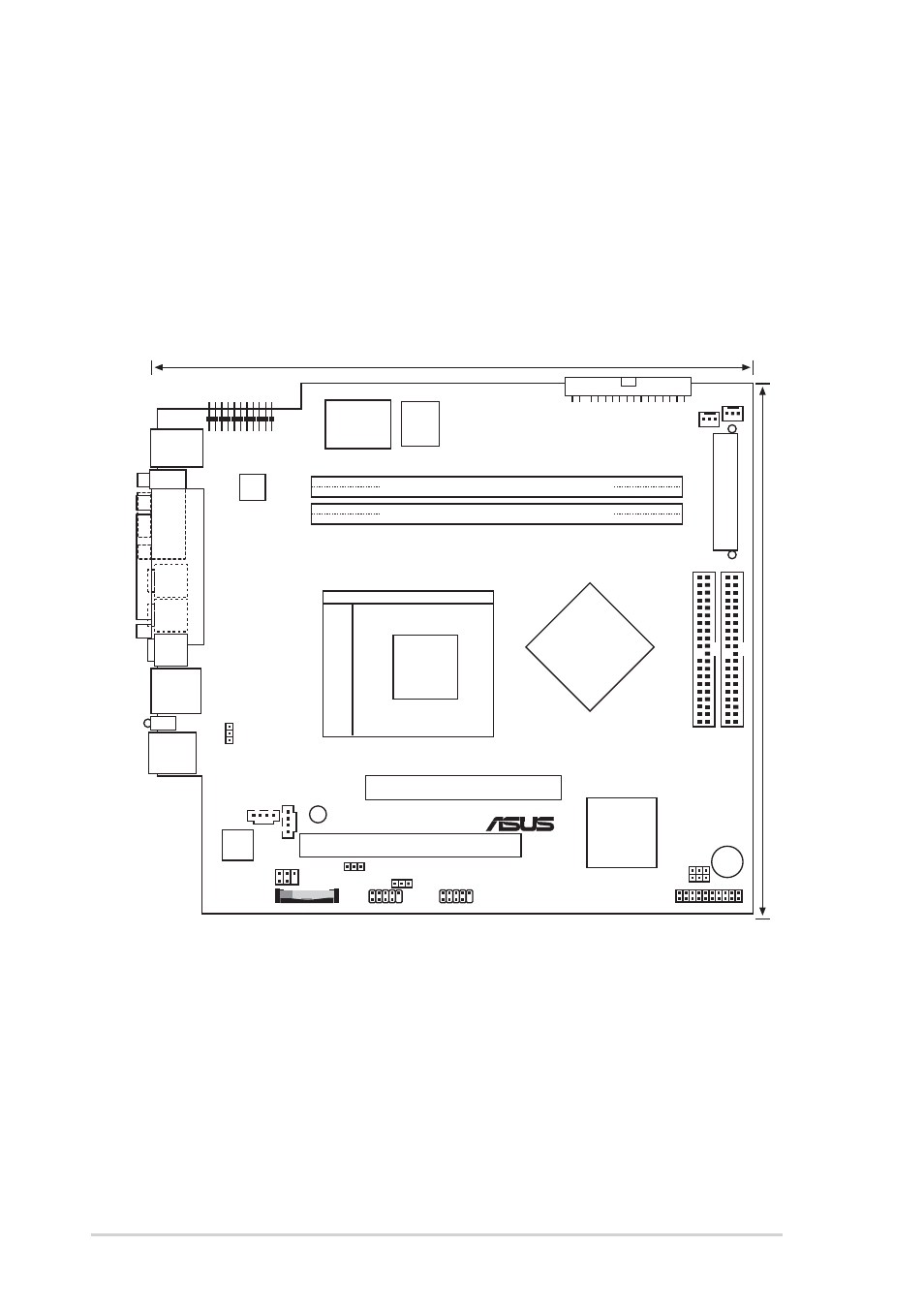

4.2 Motherboard layout
23cm (9.06in)
CPU_FAN
VIA
KM266 PRO
CHA_FAN
FLOPPY
AD1888
PANEL USB34
USBPWR12
A7VT
®
IOC_MB
DDR DIMM2 (64/72-bit, 184-pin module)
PCI1
Super
I/O Flash
BIOS
22.4cm (8.82in)
PS/2
T:Mouse
B:Keyboard
RJ-45
USB
T:Port2
B:Port1
DDR DIMM1 (64/72-bit, 184-pin module)
PRI_IDE
ATX12V
LANLED
BUZZER
VIA
VT8235 CE
Socket 462
CLRTC
SEC_IDE
USB56
USBPWR34
Accelerated Graphics Port (AGP)
P
ARALLEL
PORT
VGA
Mic
In
Line
In
Line
Out
A
TXPWR
USBPWR56
CD4
AUX
SB_PWR
FSB
BATTERY
SPDIF_OUTMIC_LOUT
