Chapter 2: Basic Installation
2.4
Detaching the drive frame
You must release the power socket module from the rear panel before
detaching the drive frame to avoid breaking the power cable.
Follow these steps to detach the
drive frame.
1.

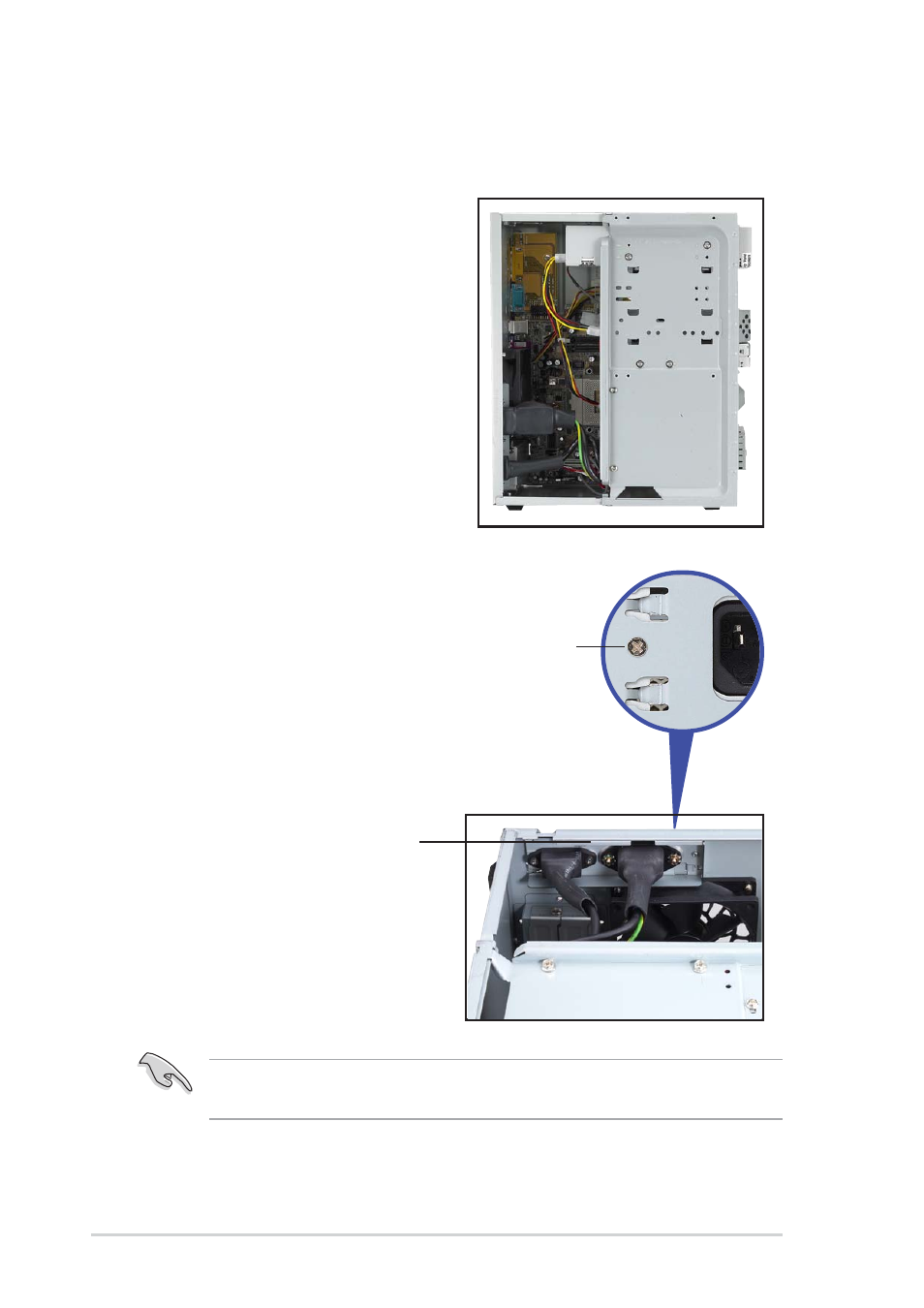

Place the chassis on a flat
surface and turn it on its side.
2.
The power socket and voltage
selector switch are attached to
a metal module secured to
the rear panel by a screw.
Remove the screw to release
the power socket module.
Power socket
module screw
Power socket module
