Asus P8H61-M EVO - Manual (Page 35)

ASUS P8H61-M EVO 1-23

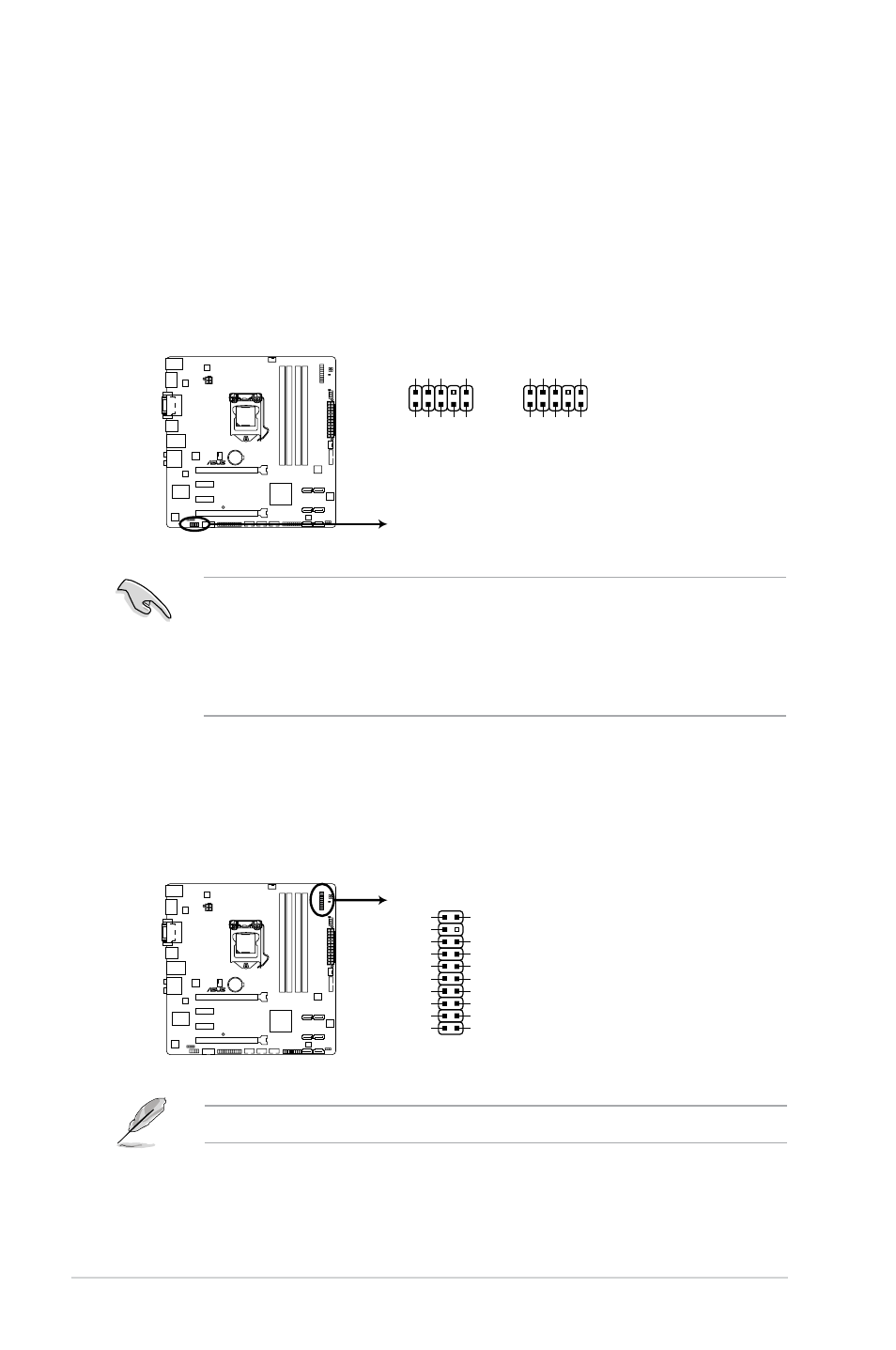

1.10.2 Internal connectors
1. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either High Definition Audio or AC`97 audio standard. Connect one end of the front
panel audio I/O module cable to this connector.
• We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard’s high-definition audio capability.
• If you want to connect a high-definition front panel audio module to this connector, set
the Front Panel Type item in the BIOS setup to [HD]. If you want to connect an AC'97
front panel audio module to this connector, set the item to [AC97]. By default, this
connector is set to [HD]. See section 2.5.6 Onboard Devices Configuration for details.
2. TPM connector (20-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which can securely
store keys, digital certificates, passwords, and data. A TPM system also helps enhance
network security, protects digital identities, and ensures platform integrity.
The TPM module is purchased separately!
P8H61-M EVO
P8H61-M EVO Front panel audio connector
AAFP
PIN 1
GN
D
PRESENCE# SENSE1_RETUR SENSE2_RETUR
PORT1
L
PORT1
R
PORT2
R
SENSE_SEND
PORT2
L
HD-audio-compliant
pin definition
PIN 1
AGND NC NC NC
MIC
2
MICPWR
Line out_
R
NC
Line out_L
Legacy AC’97
compliant definition
P8H61-M EVO
P8H61-M EVO TPM connector
TPM
PIN 1
3.3V
AD0
PWRDW#
NC
PCICLK
FRAME#
PCIRST#
AD3
GND
3.3VSB
AD1
AD2
SERIRQ#
CLKRUN#
GND
NC
GND
NC
NC
