ASUS P8H61-M EVO 1-7

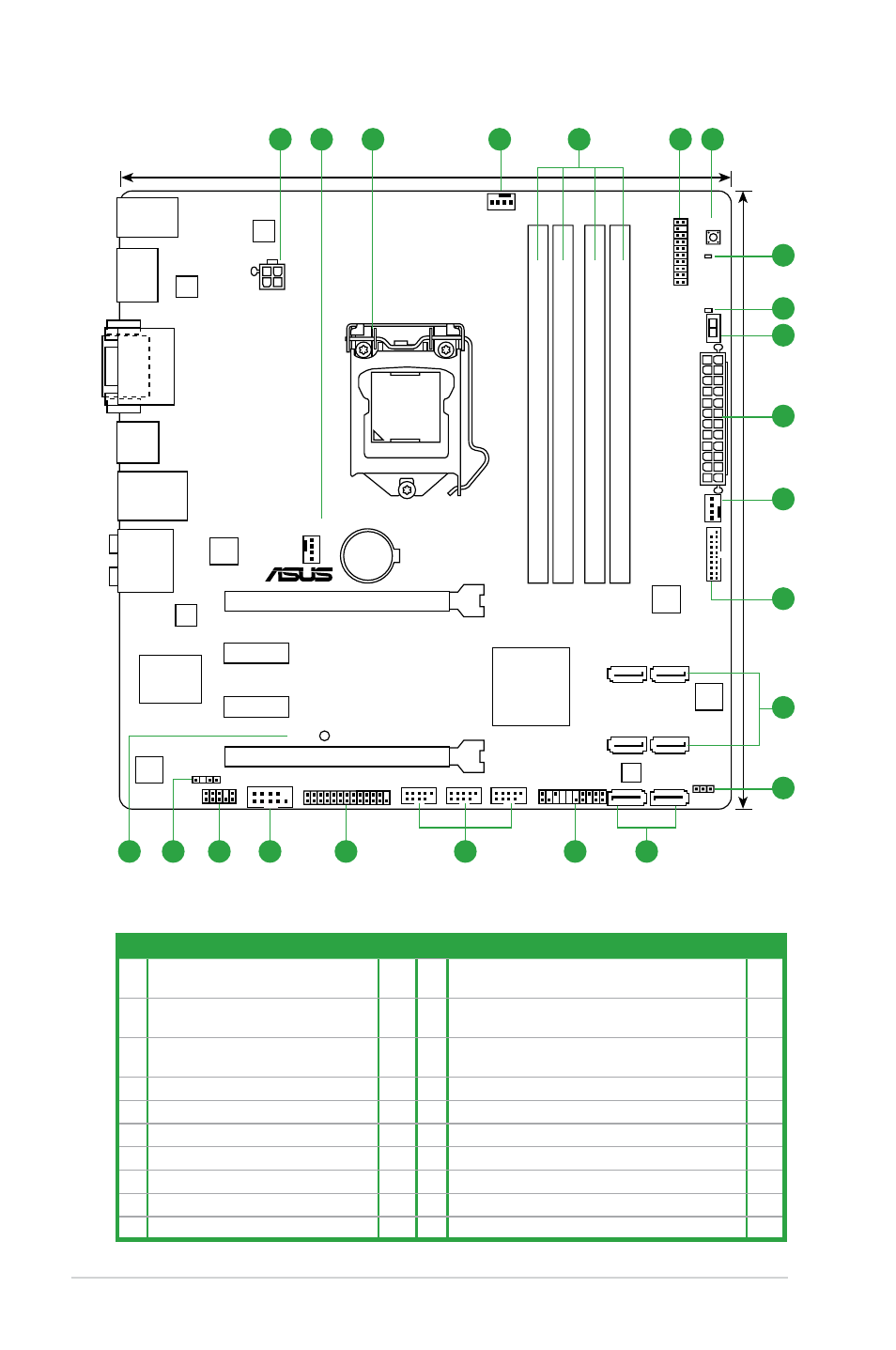

1.5.3 Motherboard layout
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1.
ATX power connectors
(24-pin EATXPWR, 4-pin EATX12V)
1-26 11. Intel
® H61 Serial ATA 3.0Gb/s connectors (7-pin
SATA3G_1~4 [blue])
1-24
2.
CPU and Chassis fan connectors
(4-pin CPU_FAN, 4-pin CHA_FAN1/2)
1-25 12. Clear RTC RAM (3-pin CLRTC) 1-20
3. Intel ® CPU socket 1-8 13. Asmdedia
® Serial ATA 6.0Gb/s connectors (7-pin
SATA6G_E1/2 [gray])
1-24
4. DDR3 DIMM sockets 1-13 14. System panel connector (20-8 pin PANEL) 1-28
5. TPM connector (20-1 pin TPM) 1-23 15. USB connectors (10-1 pin USB56, USB78, USB910) 1-27
6. MemOK! switch 1-29 16. LPT connector (26-1 pin LPT ) 1-26
7. DRAM LED 1-31 17. Serial port connectors (10-1 pin COM1) 1-25
8. GPU Boost LED (O2LED2) 1-31 18. Front panel audio connector (10-1 pin AAFP) 1-23
9. GPU Boost switch 1-30 19. Digital audio connector (4-1 pin SPDIF_OUT) 1-27
10. USB 3.0 connector (20-1 pin USB3_34) 1-28 20. Onboard LED (SB_PWR) 1-30
P8H61-M EVO
PCIEX16_1
PCIEX16_2
PCIEX1_1
PCIEX1_2
CLRTC
AAFP
EATXPW
R
CPU_FAN
CHA_FAN1
CHA_FAN2
Lithium Cell
CMOS Power
ALC
887
RTL
8111E
EPU
ASM
1442
32Mb
BIOS
ASM
1061
ASM
1042
ASM
1042
SB_PWR
SPDIF_OUT
24.4cm(9.6in)
24.4cm(9.6in)
LGA1155
Intel ®
H61
DDR3 DIMM_A1 (64bit, 240-pin module
)
DDR3 DIMM_A2 (64bit, 240-pin module
)
DDR3 DIMM_B1 (64bit, 240-pin module
)
DDR3 DIMM_B2 (64bit, 240-pin module
)
SATA3G_3 SATA3G_4
SATA6G_E1
SATA6G_E2
SATA3G_1 SATA3G_2
PANEL
TPM
MemOK!
DRAM_LED
AUDIO
KB_USB34
LAN1_USB12
HDMI
SPDIF_O
2
USB3_12
DVI_VG
A
Super
I/O
COM1
ATX12V
LPT
USB56 USB78 USB910
USB3_34
O2LED2
GPU Boost
2 1 4 3 2 5 6
9
1
2
7
8
12
10
11
13 14 16 17 19 20 18 15
