6.2.2 Adding or viewing a RAID configuration
You can add a new RAID configuration or view an existing configuration using the
View/Add Configuration command.
Adding a new RAID configuration
To add a new RAID configuration:
1. From the Management Menu, select Configure > View/Add Configuration,
and then press .

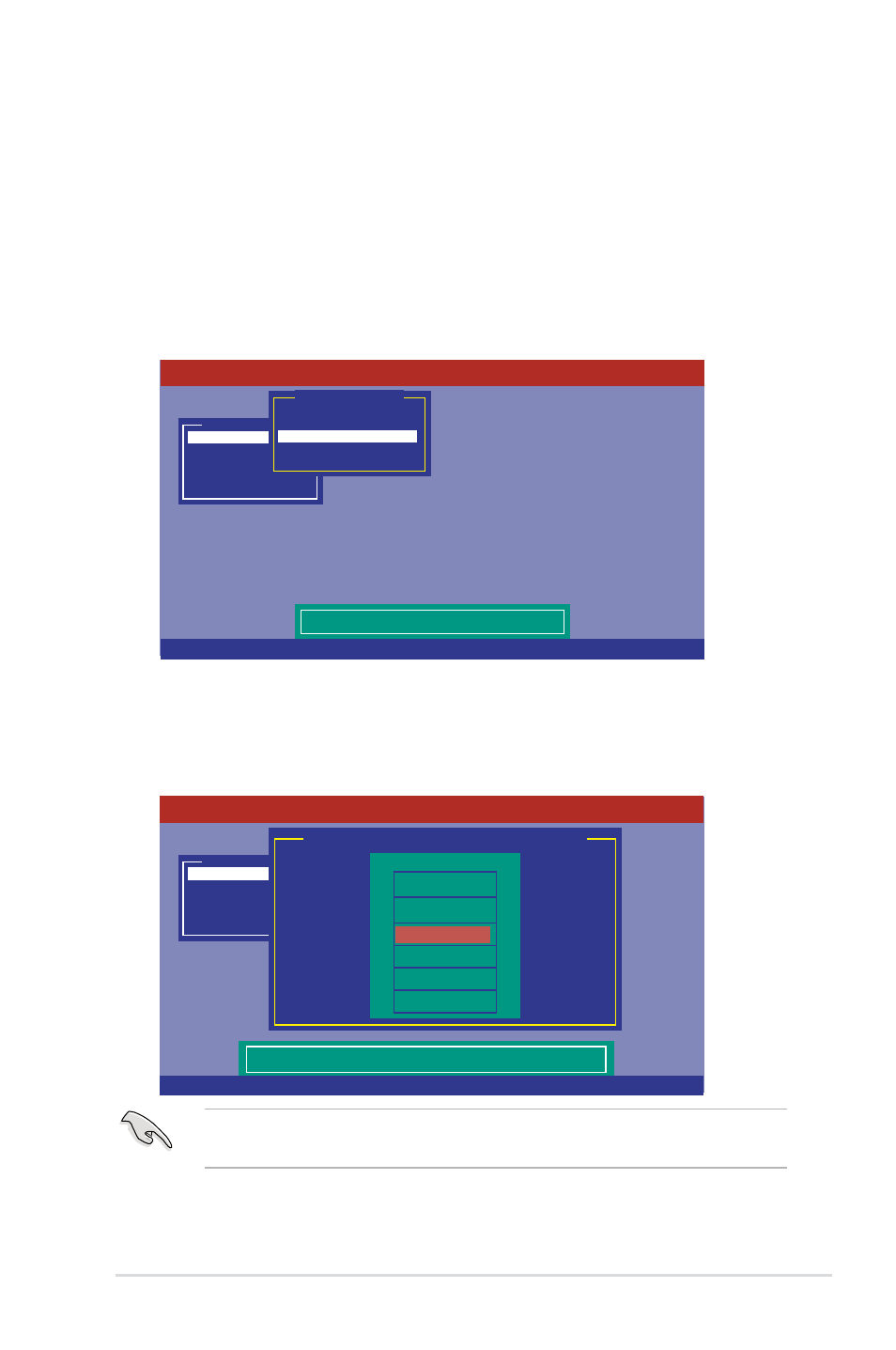

2. The ARRAY SELECTION MENU displays the available drives connected to
the SATA ports. Select the drive(s) you want to include in the RAID set, then
press . When selected, the drive indicator changes from READY to
ONLIN A[X]-[Y], where X is the array number, and Y is the drive number.
The information of the selected hard disk drive displays at the bottom of the
screen.
3. Follow step 3 to 12 of section 6.2.1 Creating a RAID set: Using Easy
Configuration to add a new RAID set.
