Chapter 6: RAID configuration

3. Select all the drives required for the RAID set, and then press to

configure array setting.

4. Press to select the configurable array.

2. The ARRAY SELECTION MENU displays the available drives connected to

the SATA ports. Use the up/down arrow key to select the drives you want to

include in the RAID set, and then press . When selected, the drive

indicator changes from READY

to ONLIN A[X]-[Y], where X is the array

number, and Y is the drive number.

• The information of the selected hard disk drive displays at the bottom of the

screen.

• You need at least two identical hard disk drives when creating a RAID 1 set.
• You need at least four identical hard disk drives when creating a RAID 10

set.

Management Menu

Configure

Initialize

Objects

Rebuild

Check Consistency

PORT #

DNLIN A00-00

DNLIN A00-01

0
1

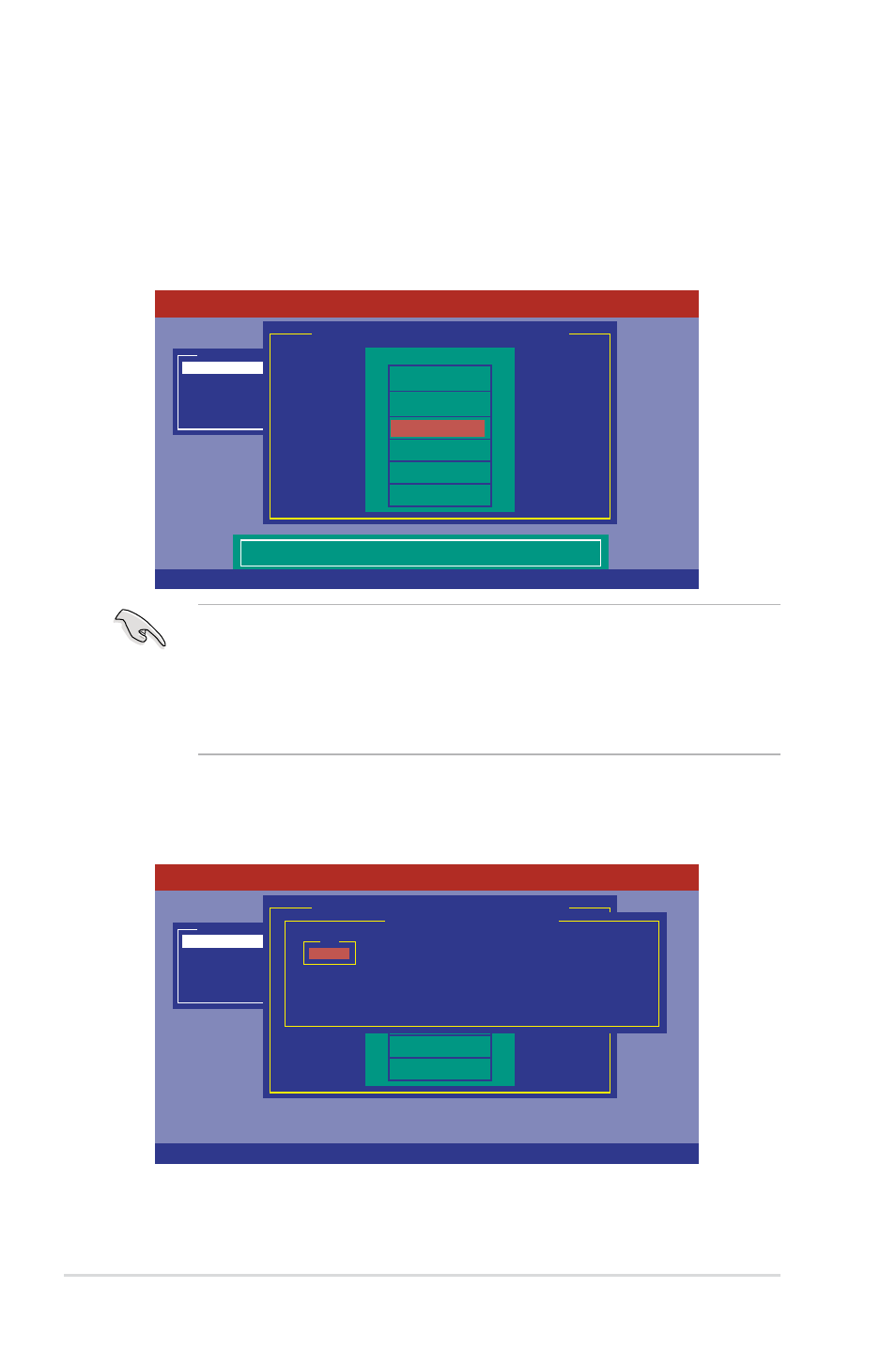

Easy Configuration - ARRAY SELECTION MENU

Select Configurable Array(s)

A-0

SPAN-1

LSI Software RAID Configuration Utility Ver A.60 Jul 30, 2008

BIOS Version A.08.09161344R

Cursor Keys, SPACE-(De)Select F2-ChIdInfo F3-SlotInfo F10-Configure Esc-Quit
