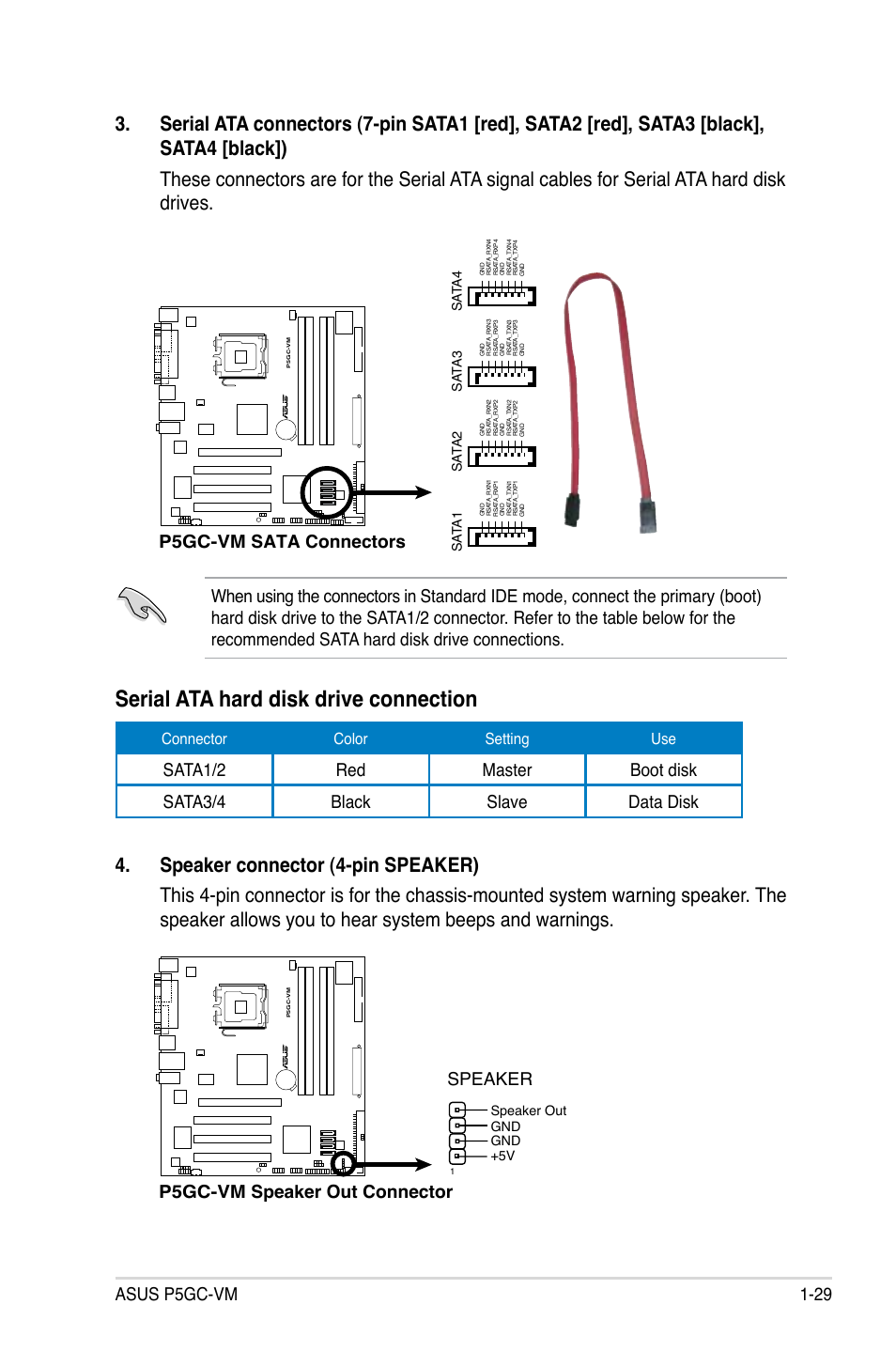

Serial ata hard disk drive connection, Asus p5gc-vm 1-29, P5gc-vm sata connectors – Asus P5GC-VM User Manual

Page 41: P5gc-vm speaker out connector speaker, Connector color setting use, Sa ta 1, Sa ta 2, Sa ta 3, Sa ta 4, 5v gnd gnd speaker out

Serial ata hard disk drive connection, Asus p5gc-vm 1-29, P5gc-vm sata connectors | P5gc-vm speaker out connector speaker, Connector color setting use, Sa ta 1, Sa ta 2, Sa ta 3, Sa ta 4, 5v gnd gnd speaker out | Asus P5GC-VM User Manual | Page 41 / 94 Serial ata hard disk drive connection, Asus p5gc-vm 1-29, P5gc-vm sata connectors | P5gc-vm speaker out connector speaker, Connector color setting use, Sa ta 1, Sa ta 2, Sa ta 3, Sa ta 4, 5v gnd gnd speaker out | Asus P5GC-VM User Manual | Page 41 / 94
