5.3 LSI Logic Configuration Utility
( S C S I m o d e l o n l y ) ( S C S I m o d e l o n l y ) ( S C S I m o d e l o n l y ) ( S C S I m o d e l o n l y ) ( S C S I m o d e l o n l y )
The LSI Logic Configuration Utility allows you to create RAID 0, RAID 1, and
RAID-1E from SCSI hard disk drives connected to the SCSI connectors
supported by the LSI 1020A SCSI controller.
To enter the LSI Logic Configuration Utility:
1. Turn on the system after installing all the SATA hard disk drives.

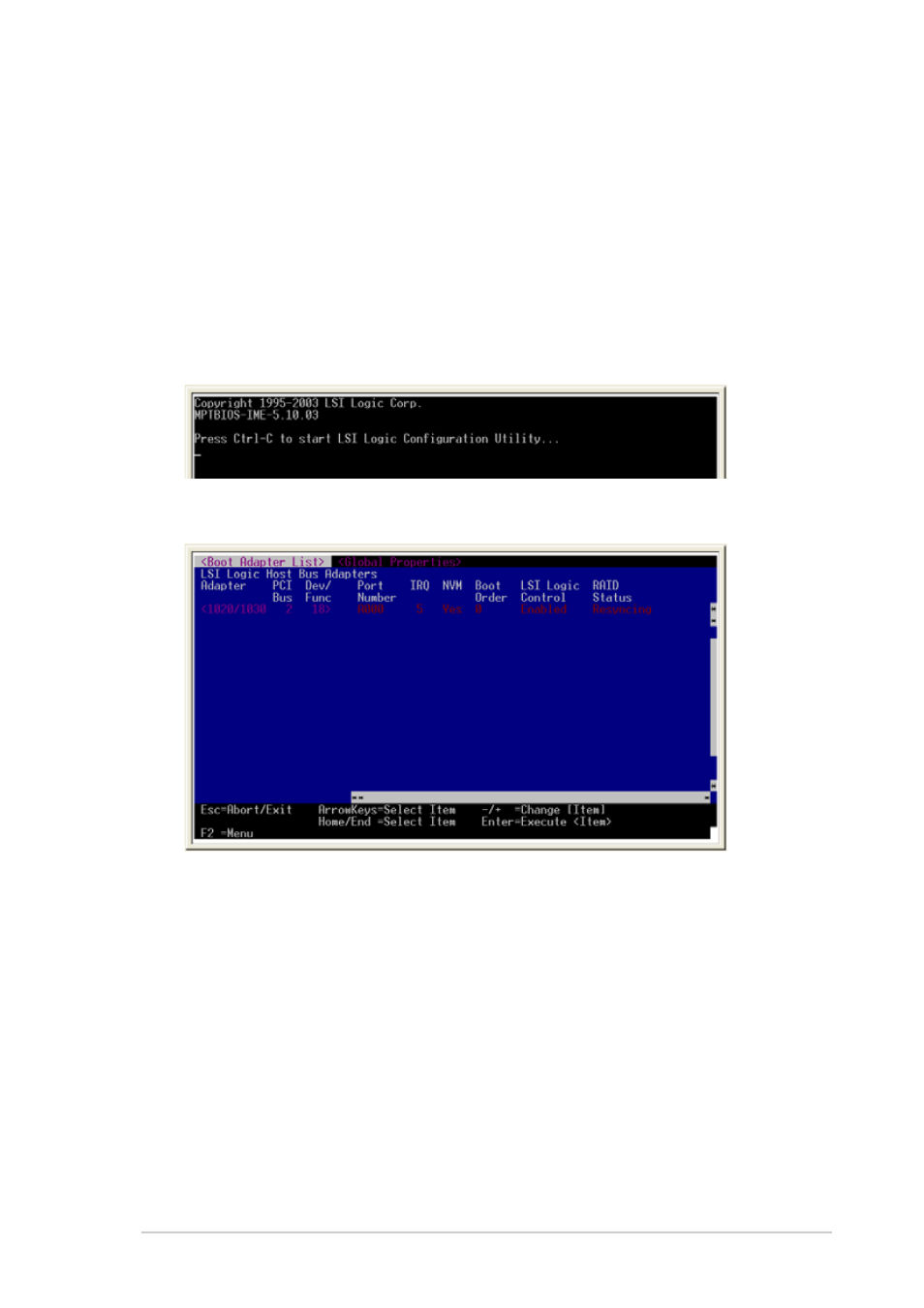

2. During POST, Press + to enter the LSI Logic Configuration
Utility.
The LSI Logic Configuration Utility main menu appears.
The LSI Logic Configuration Utility has two tabbed menus that you can
select by pressing . Refer to the next section for details.
