ASUS P8P67-M PRO 1-32

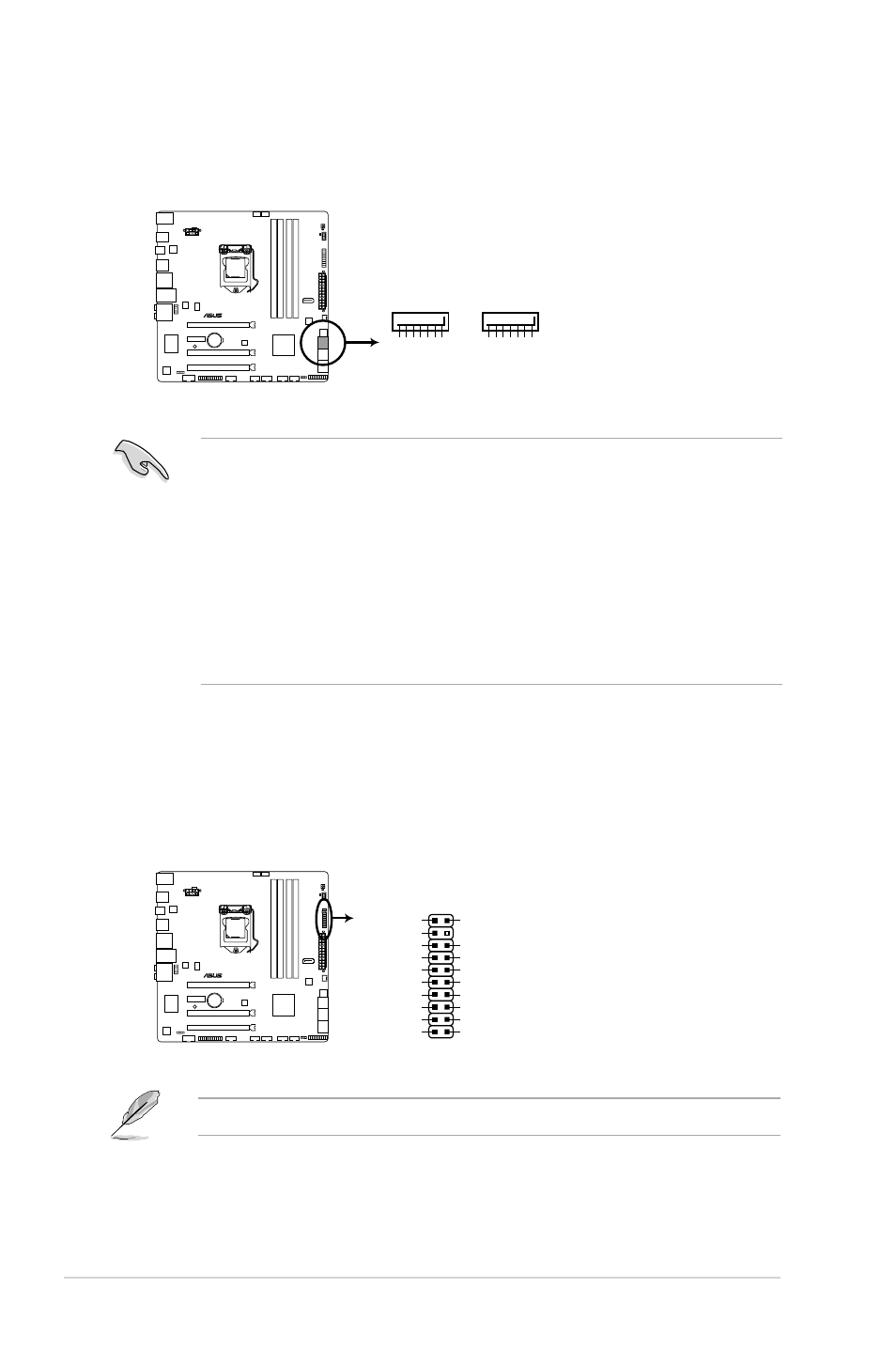

11. TPM connector (20-1 pin TPM)
This connector supports a Trusted Platform Module (TPM) system, which can
securely store keys, digital certificates, passwords, and data. A TPM system also
helps enhance network security, protects digital identities, and ensures platform
integrity.
The TPM module is purchased separately!
P8P67-M PRO
P8P67-M PRO TPM connector
PIN 1
TPM
3.3V
AD0
PWRDW#
NC
PCICLK
FRAME#
PCIRST#
AD3
GND
3.3VSB
AD1
AD2
SERIRQ#
CLKRUN#
GND
NC
GND
NC
NC
10. Intel ® P67 Serial ATA 6.0Gb/s connectors (7-pin SATA6G_1/2 [gray])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial ATA
RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID Mode].
See section 2.5.4 SATA Configuration for details.
• Before creating a RAID set, refer to the RAID Supplementary Guide included in the
folder named Manual in the support DVD.
• You must install Windows ® XP Service Pack 3 or later version before using Serial ATA
hard disk drives. The Serial ATA RAID feature (RAID 0, 1, 5, and 10) is available only if
you are using Windows ® XP SP3 or later version.
• When using hot-plug and NCQ, set the SATA Mode item in the BIOS to [AHCI Mode].
See section 2.5.4 SATA Configuration for details.
SATA6G_1 SATA6G_2
GN
D
RSATA_TXP
1
RSATA_TXN1
GN
D
RSATA_RXP1 RSATA_RXN1
GN
D
GN
D
RSATA_TXP
2
RSATA_TXN2
GN
D
RSATA_RXP2 RSATA_RXN2
GN
D
P8P67-M PRO
P8P67-M PRO Intel ® SATA 6.0 Gb/s connectors
