ASUS P8P67-M PRO 1-30
8. Marvell ® Serial ATA 6.0Gb/s connector (7-pin SATA6G_E1 [navy blue])
These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0
Gb/s signal cables.
• The SATA6G_E1 (navy blue) connector is for data drives only. ATAPI device is not
supported.
• You must install Windows ® XP Service Pack 3 or later versions before using Serial ATA
hard disk drives.
• When using hot-plug and NCQ, set the Marvell Storage Controller item in the BIOS to
[AHCI Mode]. Refer to section 2.5.6 Onboard Devices Configuration for details.
• Press + during POST to enter the Marvell RAID utility to create or delete a
RAID configuration.
• If you want to install a Windows operating system to a RAID configuration created
using the Marvell SATA controller, you have to create a RAID driver disk using the
motherboard support DVD and load the driver during OS installation. For 32/64bit
Windows XP OS, load first the Marvell shared library driver, and then load Marvell
91xx SATA Controller Driver. For Windows Vista / Windows 7 OS, load only the
Marvell 91xx SATA Controller Driver.
SATA6G_E1
GN
D
RSATA_RXN
1
RSATA_RXP
1
GN
D
RSATA_TXN
1
RSATA_TXP
1
GN
D
P8P67-M PRO

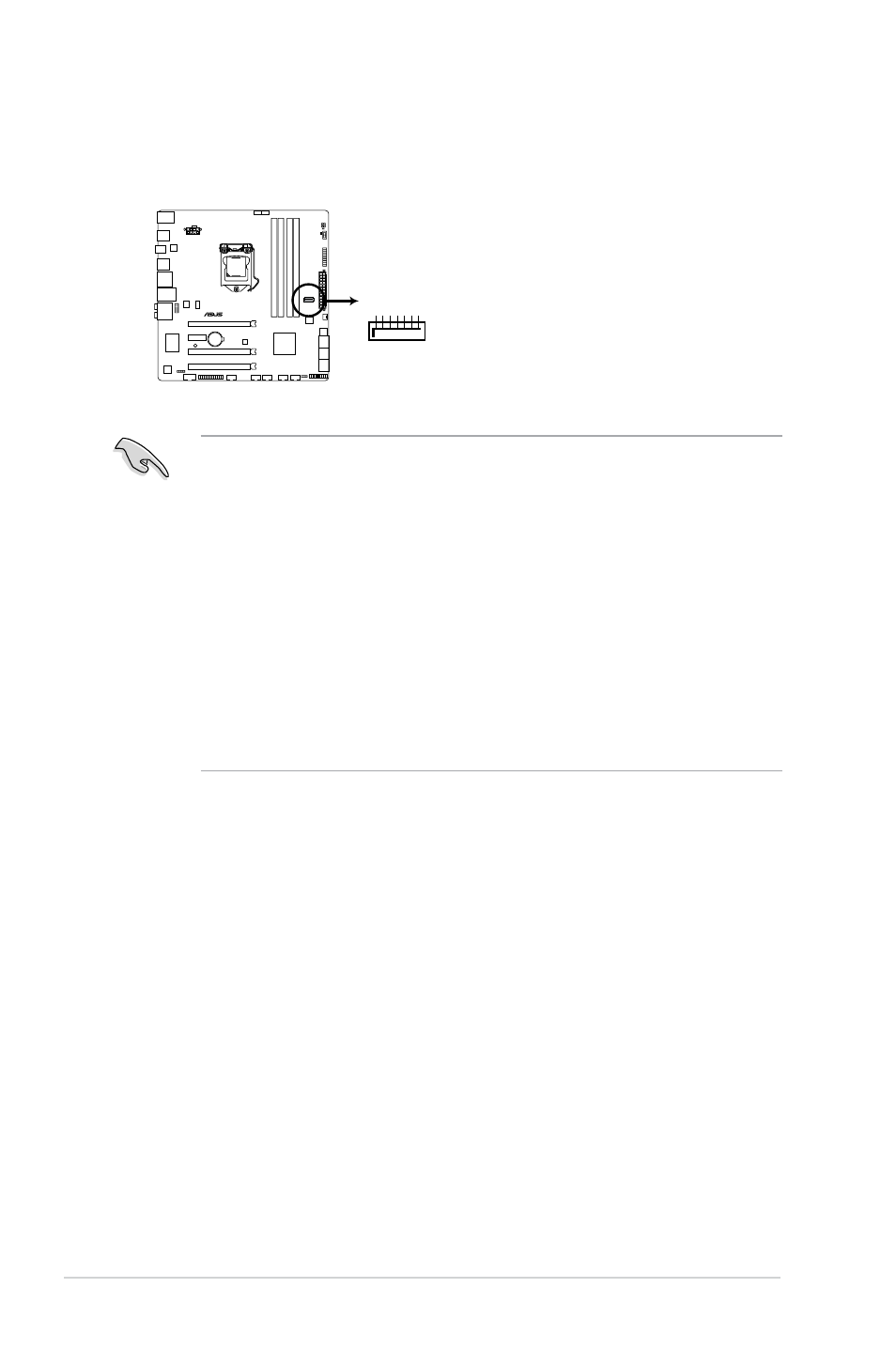

P8P67-M PRO Marvell ® SATA 6.0 Gb/s connector
