1-31 Chapter 1: Product introduction
9. Intel ® P67 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~4 [blue])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 0+1(10)
configurations with the Intel ® Rapid Storage Technology through the onboard Intel ® P67
chipset.
• These connectors are set to [AHCI Mode] by default. If you intend to create a Serial ATA
RAID set using these connectors, set the SATA Mode item in the BIOS to [RAID Mode].
See section 2.5.4 SATA Configuration for details.
• Before creating a RAID set, refer to the RAID Supplementary Guide included in the
folder named Manual in the support DVD.
• You must install Windows ® XP Service Pack 3 or later version before using Serial ATA
hard disk drives. The Serial ATA RAID feature (RAID 0, 1, 5, and 10) is available only if
you are using Windows ® XP SP3 or later version.
• When using hot-plug and NCQ, set the SATA Mode item in the BIOS to [AHCI Mode].
See section 2.5.4 SATA Configuration for details.
GN
D
RSATA_TXP1 RSATA_TXN1
GN
D
RSATA_RXP
1
RSATA_RXN1
GN
D
SATA3G_1 SATA3G_2
GN
D
RSATA_TXP2 RSATA_TXN2
GN
D
RSATA_RXP
2
RSATA_RXN2
GN
D
GN
D
RSATA_TXP3 RSATA_TXN3
GN
D
RSATA_RXP3 RSATA_RXN3
GN
D
SATA3G_3 SATA3G_4
GN
D
RSATA_TXP4 RSATA_TXN4
GN
D
RSATA_RXP4 RSATA_RXN4
GN
D
P8P67-M PRO

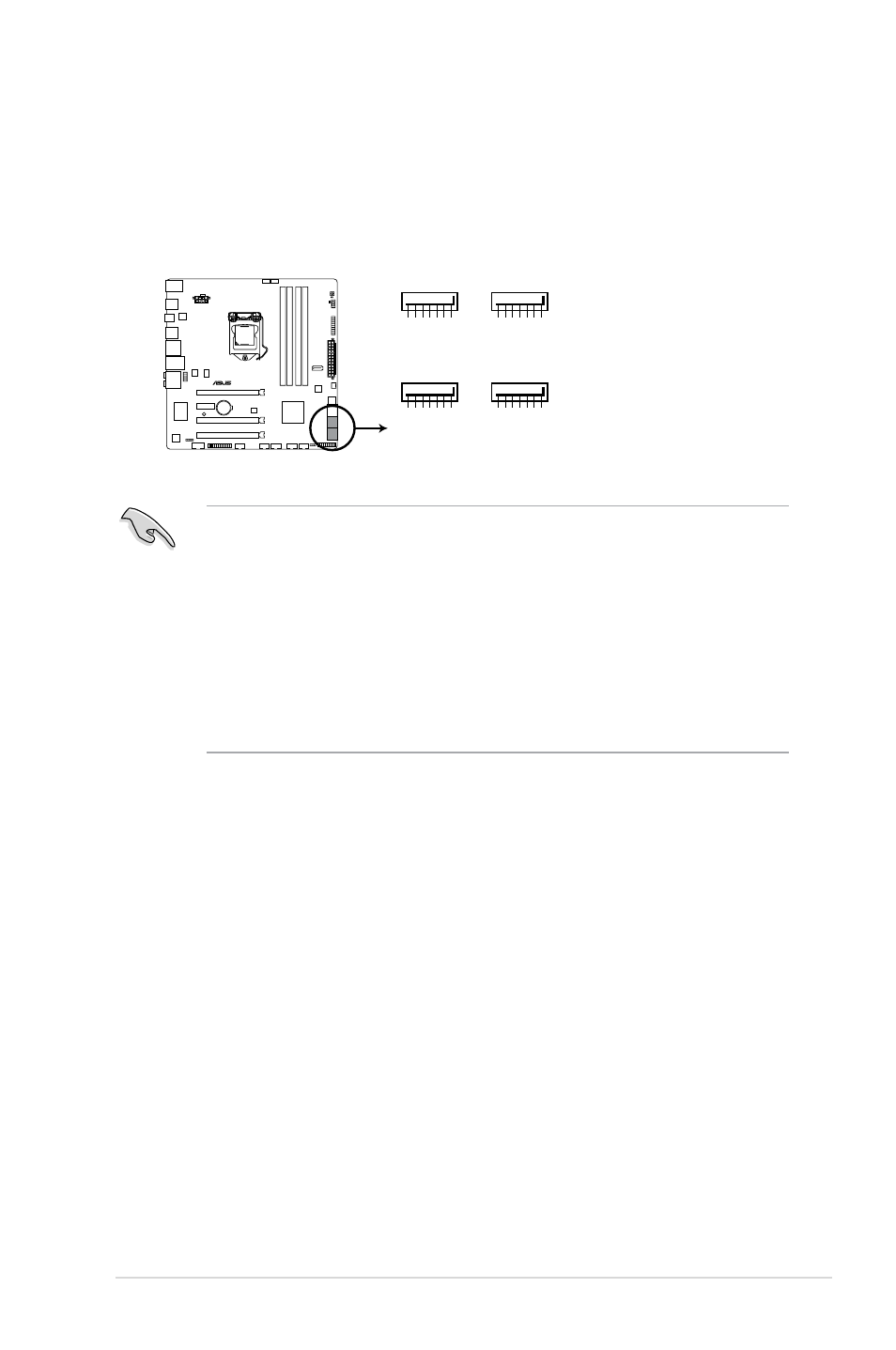

P8P67-M PRO Intel ® SATA 3.0 Gb/s connectors
