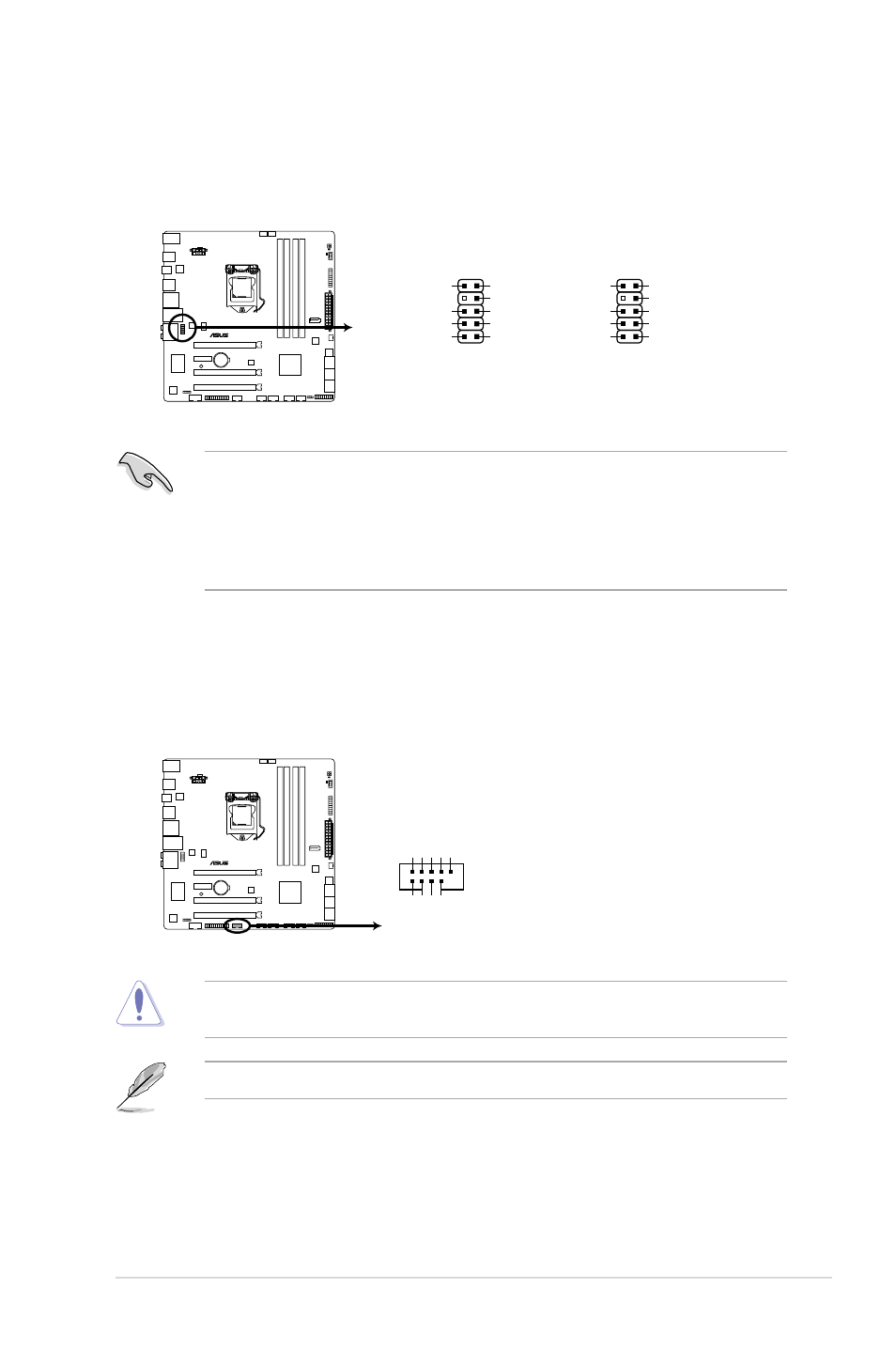

Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports

either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel

audio I/O module cable to this connector.

• We recommend that you connect a high-definition front panel audio module to this

connector to avail of the motherboard’s high-definition audio capability.

• If you want to connect a high-definition front panel audio module to this connector, set

the Front Panel Type item in the BIOS setup to [HD]. If you want to connect an AC'97

front panel audio module to this connector, set the item to [AC97]. By default, this

connector is set to [HD]. See section 2.5.6 Onboard Devices Configuration for details.

3.

IEEE 1394a connector (10-1 pin IE1394_1)
This connector is for an IEEE 1394a port. Connect the IEEE 1394a module cable

to this connector, then install the module to a slot opening at the back of the system

chassis.

Never connect a USB cable to the IEEE 1394a connector. Doing so will damage the

motherboard!

The IEEE 1394a module is purchased separately.

P8P67-M PRO

P8P67-M PRO

IEEE 1394a connector

PIN 1

TPA1-

GND

TPB1-

+12V

GND

TPA1+

GND

TPB1+

+12V

IE1394_1

P8P67-M PRO

P8P67-M PRO Front panel audio connector

AAFP

PIN 1

PIN 1

SENSE2_RETUR

SENSE1_RETUR

PRESENCE#

GND

PORT2 L
SENSE_SEND
PORT2 R
PORT1 R
PORT1 L

HD-audio-compliant

pin definition

NC

NC
NC

AGND

Line out_L
NC
Line out_R
MICPWR
MIC2

Legacy AC’97

compliant definition
