Page 38

ASUS P8P67-M PRO

1-26

10. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are

available for connecting USB 2.0/1.1 devices.

11. eSATA port. This port connects to an external Serial ATA hard disk drive.
12. IEEE 1394a port. This 6-pin IEEE 1394a port provides high-speed connectivity for

audio/video devices, storage peripherals, or portable devices.

13. USB 2.0 ports 5 and 6. These two 4-pin Universal Serial Bus (USB) ports are

available for connecting USB 2.0/1.1 devices.

14. Optical S/PDIF Out port. This port connects an external audio output device via an

optical S/PDIF cable.

15. USB 3.0 ports 1 and 2. These two 9-pin Universal Serial Bus (USB) ports are

available for connecting USB 3.0/2.0 devices.

• DO NOT connect a keyboard / mouse to any USB 3.0 port when installing Windows

operating system.

• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under Windows

OS environment and after the USB 3.0 driver installation.

• USB 3.0 devices can only be used as data storage only.
• We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster

and better performance for your USB 3.0 devices.

16. PS/2 Keyboard port (purple). This port is for a PS/2 keyboard.

Audio 2, 4, 6, or 8-channel configuration

Port

Headset

2-channel

4-channel

6-channel

8-channel

Light Blue

Line In

Lime

Line Out

Front Speaker Out

Pink

Mic In

Orange

–

Center/Subwoofer

Black

–

Rear Speaker Out

Gray

–

Side Speaker Out

1.10.2

Internal connectors

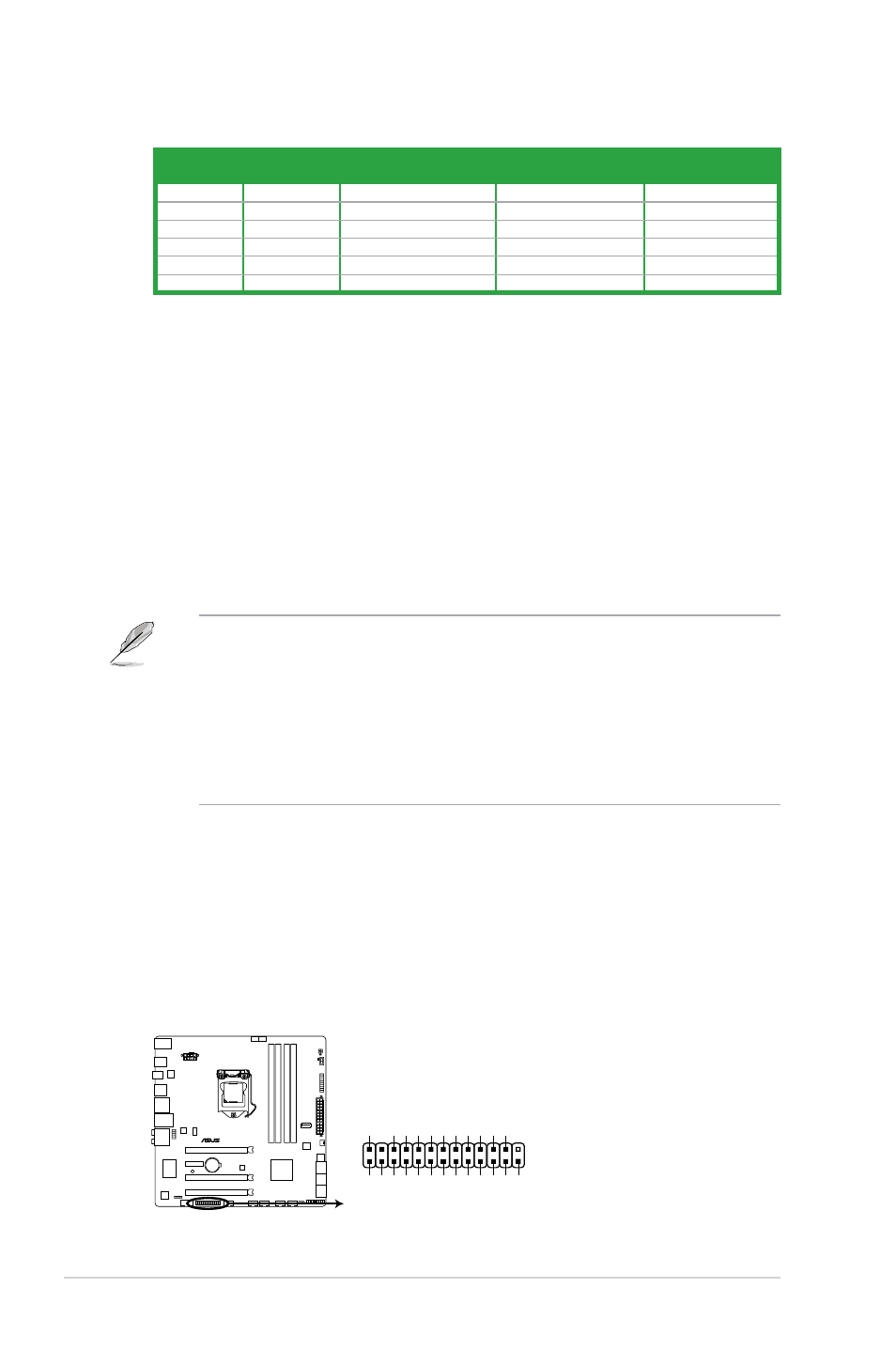

LPT connector (26-1 pin LPT)

The LPT (Line Printing Terminal) connector supports devices such as a printer. LPT is

standardized as IEEE 1284, which is the parallel port interface on IBM PC-compatible

computers.

P8P67-M PRO

P8P67-M PRO LPT connector

LPT

STB# PD

ACK# BUSY

SLCT

ERR# INIT

SLIN
