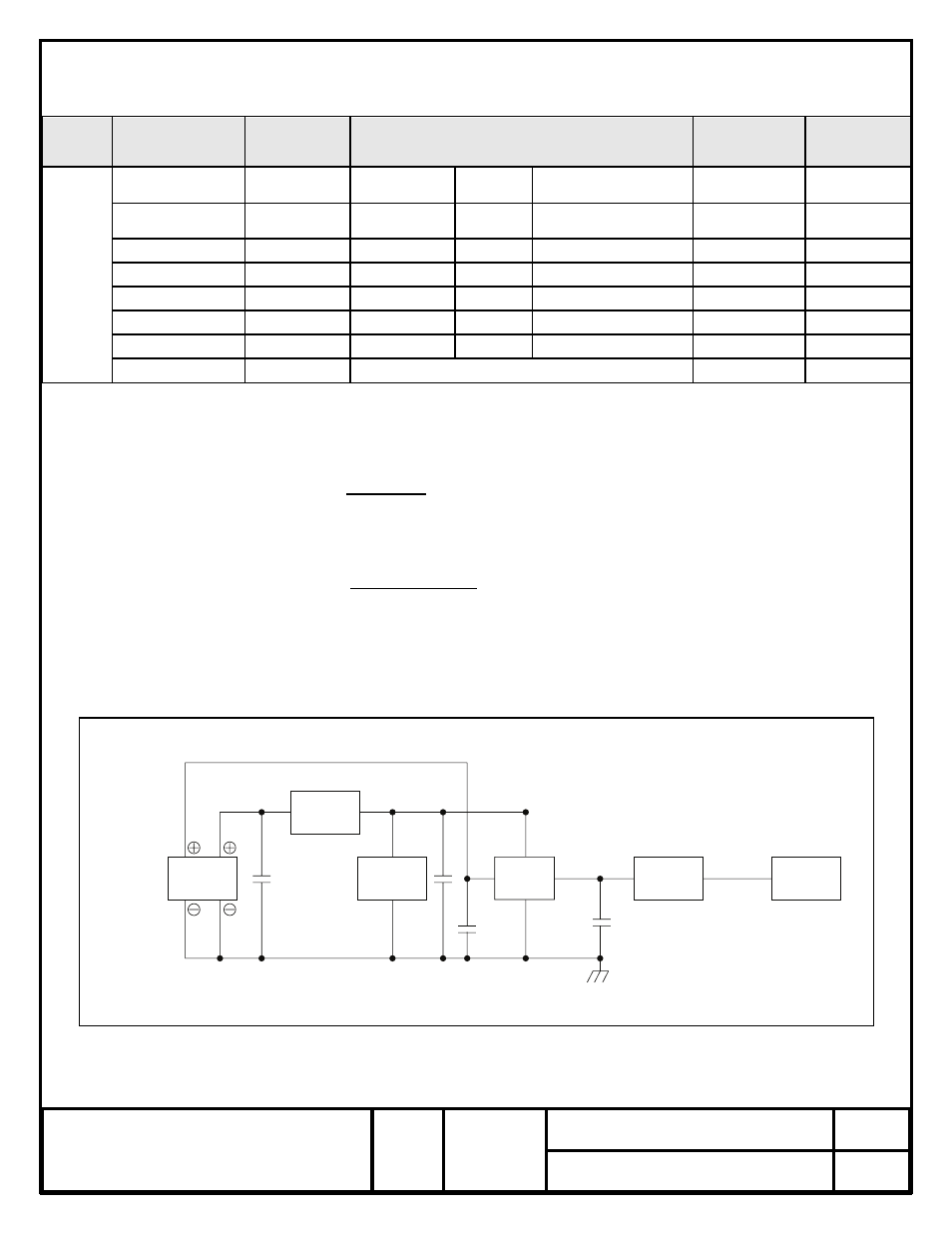

background image

QTV721 and QTV722 Square-

Wave

REV.

Q-TECH Corporation

10150 W. Jefferson Blvd.
Culver City, CA 90232

SIZE

A

CAGE NO.

51774

Sheet 7 of 8

1.0

FLUKE 8050A

COM

mA

V

VOLT-

METER

.01

uF

.01

uF

.01

uF

VC

Vcc

DEVICE

UNDER

TEST

OUT

GND

TEK2465B

OSCILLO-

SCOPE

VERT

SIGNAL

OUT

15

pF (including probes)

common

HP6205C

POWER

SUPPLY

AMP-

METER

FREQ

COUNTER

HP53181A

PART NUMBER GENERATION

SERIES

Output type and

supply voltage

SYMMETRY

TEMPERATURE RANGE (°C)/ Max. Overall

Stability/ Min. APR and Voltage Control

Level

FREQUENCY

(MHz)

1: HCMOS…5.0V
Vc=0.5..4.5

A:40%…60%

N: 0.....+50°C ±25 ppm

±50 ppm Vc=0.5..4.5V

E: Eng. Model

2.000…90.000

(See note 1)

2: HCMOS.,,3.3V
Vc=0...3.3V

T:(See note 2) P: 0.....+70°C ±35 ppm

±70 ppm Vc=0.5..6.0V M: Flight Model

Q: 20…+70°C ±40 ppm

±80 ppm Vc=0.5..6.0V

R: 40…+85°C ±45 ppm

±90 ppm Vc=0.5..6.0V

U: -55.+125°C ±65 ppm

±130 ppm Vc=0.5..6.0V

QTV72:

32 Pin

Flat Pack

(See note 1 below)

1. Variations from standard specification are available, please contact factory.
2. 45/55 Symmetry Contact factory for options available.


EXAMPLE:

QTV722AURM-50.000000 would be a Flight Model version VCXO, 32 pin SMD flat pack, HCMOS 3.3 volts, 40/60
symmetry, overall frequency stability (including Operating Temperature, ±5% Load Change, ±5% Supply Voltage
change. 10 year aging, and radiation)±45 ppm over -40…+85°C, @ 50 MHz with frequency pulling range from minimum
of 90 ppm below center frequency at 0V to a minimum of 90 ppm above center frequency at 3.3V.

QTV722AURE-50.000000 would be an Engineering Model version VCXO, 32 pin SMD flat pack, HCMOS 3.3 volts, 40/60
symmetry, overall frequency stability (including Operating Temperature, ±5% Load Change, ±5% Supply Voltage change.
10 year aging, and radiation) ±45 ppm over -40…+85°C, @ 50 MHz with frequency pulling range from minimum of 90 ppm
below center frequency at 0V to a minimum of 90 ppm above center frequency at 3.3V.

RECOMMENDED ELECTRICAL TEST DIAGRAM
