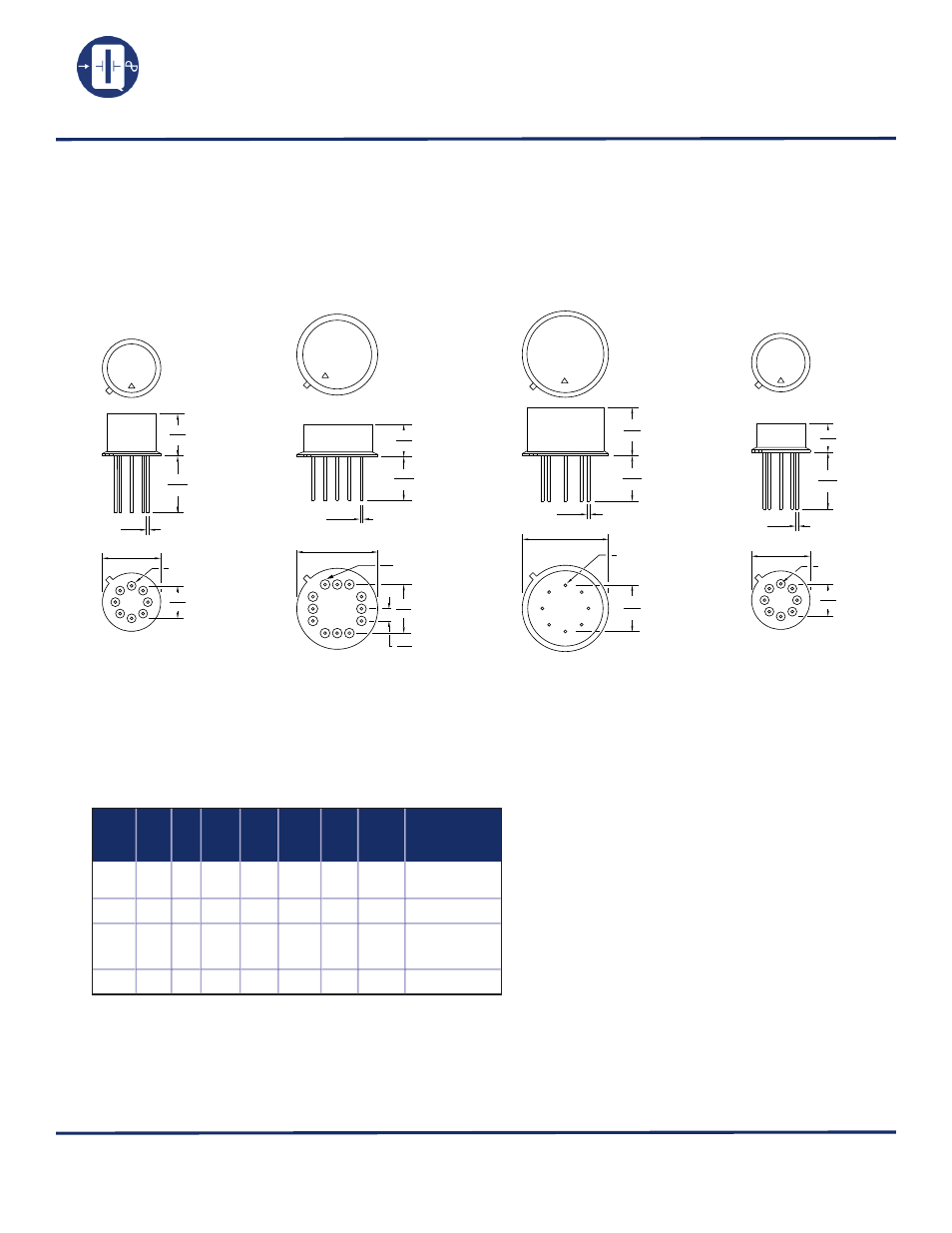

TRANSISTOR OUTLINE PACKAGES
TO-5 and TO-8 CRYSTAL CLOCK OSCILLATORS
1.8 to 15Vdc - 0.045Hz to 125MHz
Q-TECH
CORPORATION
Transistor Outline Packages (Revision F, March 2011 ) (ECO# 10145)
(6.60)
.260
.500
(12.70)
(.457)
.018
(5.08)
.200
PIN No. 1
(9.14)
.360
FREQ.
D/C S/N
P/N
Q-TECH
MAX.
MIN.
A
QT1
MIN.
Q-TECH
P/N
FREQ.
D/C S/N
.360
(9.14)
PIN No. 1
.200
(5.08)
.018
(.457)
(12.70)
.500
.175
(4.45)
D
QT14
Q-TECH
P/N
PIN No. 1
.500
(12.70)
.075
(1.91)
.300
(7.62)
(5.08)
.200
FREQ.
D/C S/N
.018
(.457)
.500
(12.70)
MIN.
MAX.
B
QT2
PIN No. 1
(7.16)
.282
(13.72)
.540
Q-TECH
P/N
FREQ.
D/C S/N
.500
(12.70)
MIN.
(.457)
.018
MAX.
(7.62)
.300
C
QT3
QT # Conf Vcc GND Case Output
E/D
or
N/C
Ext.
Cap
Equivalent
MIL-PRF-55310
Configuration
QT1 A 8 4 4 5 3 1 & 2
/09 = QT1T
/12 = QT1C
QT2 B 12 6 6 5 3 9 & 10 N/A
QT3 C 8 4 4 5 3 1 & 2
/10 = QT3T
/13 = QT3C
QT14 D 8 4 4 5 3 1 & 2 N/A
Package Information
• Package material (header and leads): Kovar
• Lead finish: Gold Plated – 50µ ~ 80µ inches
Nickel Underplate – 100µ ~ 250µ inches
• Cover: Pure Nickel Grade A
• Package to lid attachment: Resistance weld
• Weight: 2.0g typ., 4.96g max.
Package Outline and Pin Connections
Dimensions are in inches (mm)
