80° – 100° 80° – 100°
I
K
L M
OSRAM GmbH
Kunden Service Center
Customer-Service-Center (CSC)
Steinerne Furt 62
86167 Augsburg
Germany
Tel : +49 (0) 1803 677 - 200
(kostenpflichtig / charges apply)
Fax.: +49 (0) 1803 677 - 202
www.osram.com
www.osram.de
40083210230250
4008321023025
Fitting (cont.)
VII 2008
TouchDIM-LSPD-LI_ma0807en_we1.02.indd

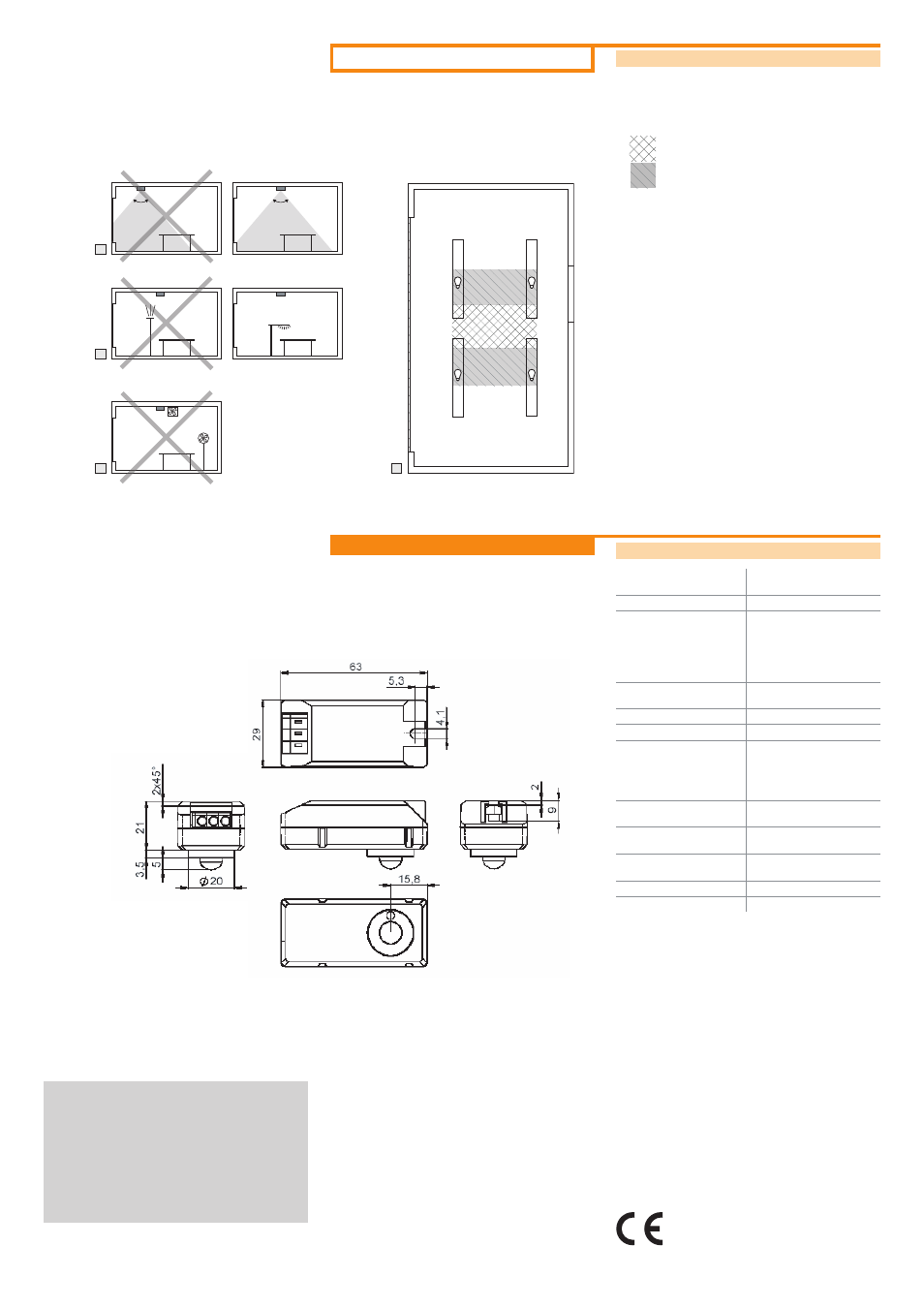

Selecting the installation location
I Surveillance cone: entire workplace; not on window surfaces
K Avoid direct light irradiation
L Avoid drafts (e.g. from ventilators or fans)
M Place centrally.
80° – 100°
Touch DIM Sensor
Optimum installation location
80° – 100°
Touch DIM Sensor
Possible installation location
Appendix
Technical data
Operating voltage 220-240 V / 50-60 Hz (no DC
operation)
Connections L, N, S (signal)
Interface Osram-specific, maximum
4 QTi DALI coil ballast
or 4 HTi transformers or
4 OTi LED dimmers can be
connected
Maximum overall length of
the signal line
10 m
Power consumption approx. 0.5 W
Operating temperature 0 °C ... +50 °C
Adjustable light value approx. 0-300 lx measured
on the sensor (corresponds
to approx. 10-1200 lx on the
work surface)
Motion detection area conical, approx. 80° ... 100°
aperture angle
Pollution severity 2 (dry, not conductive to
IEC 664)
Dimensions 63 x 29 x 21 mm
(L x W x H)
Protection class II
Protection type IP 20
The EMC requirements to EN 61547 are fulfilled.
Conformity with the relevant EU directives is
confirmed by the CE symbol.
