OSRAM PD MULTI 3 - Manual (Page 2)

Fitting (cont.)

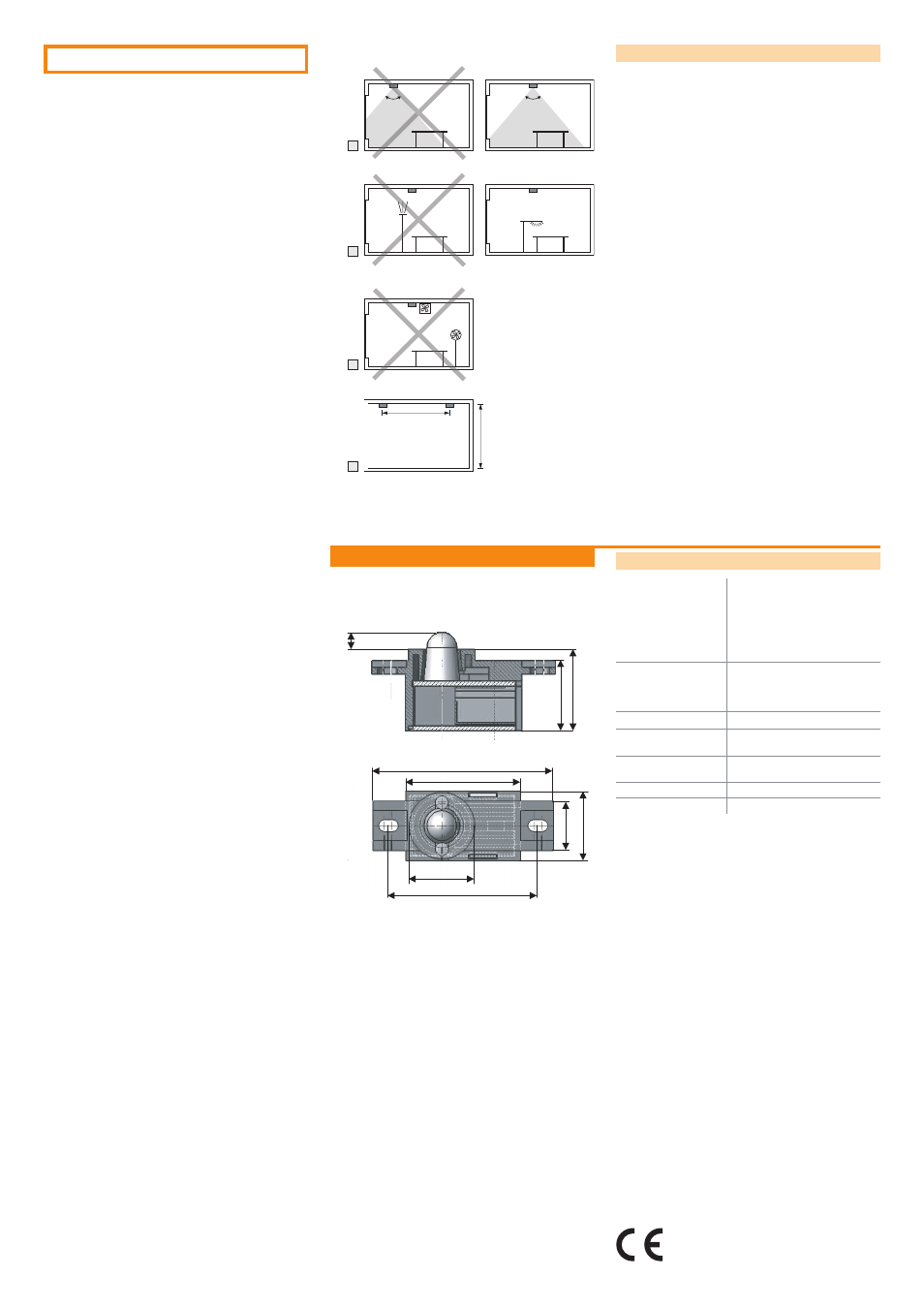

Selecting the installation location
H Surveillance cone: entire workplace; not on window surfaces
I Avoid exposure to direct light
K Avoid drafts (e.g. from ventilators or fans)
L Installation distance = min. installation height
Appendix
Technical data
Combined control and
supply connection
4-pin modular connection (4p4c)
1: Supply voltage
2: Light measurement value
3: Motion signal
4: Signal ground
Length 2.1 m
Maximum total length
of signal line (incl. all
connections to the
control units)
See control unit
Insulation Basic insulation as per IEC 664
Dimensions
(L x W x H)
55 x 21 x 24.5 mm
Light sensor detection
area
20 - 600 lx (measured at sensor),
opening angle approx. 90°
Motion detection area Conical, opening angle approx. 80°
Installation height 2 - 4 m
80° 80°
H
I
K
L
> h
h
21mm
24,5 mm
5 mm
20 mm
45mm
15 mm 21 mm
35 mm
55 mm
The CE requirements to EN 60928 are fulfilled.
The EMC requirements to EN 61547 are fulfilled.
Conformity with the relevant EU directives is
confirmed by the CE symbol.
