13

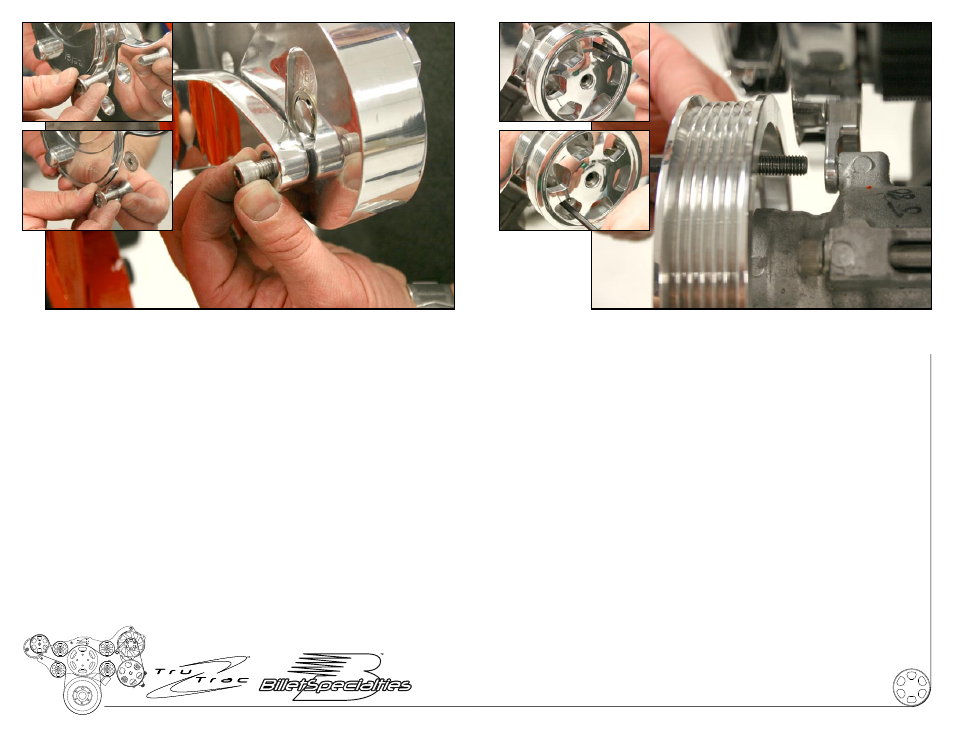

Figure 8 – Install Power Steering Pump With Pulley
Apply anti seize to the two 5/16-18 x 2-3/4” socket head cap screws and to the
8mm-1.25 x 25mm socket head cap screw.
Place the power steering pump between the bridge bracket and the
alternator bracket aligning the pump ears with the mount holes in the power
steering bracket.
[A,B] Thread the two 5/16-18 x 2-3/4" socket head cap screws with 5/16” medium
split lock washers through the power steering pump and into the power steering
bracket and finger tighten.
[C] Thread the 8mm-1.25 x 25mm socket head cap screw through the small
support bracket into the power steering pump and tighten firmly. Tighten the
two other power steering fasteners firmly at this time.
Tighten all bridge bracket fasteners and accessory hardware at this time firmly.
Figure 7 – Install Tensioner
Apply anti seize to the two 8mm-1.25 x 25mm flat head screws, place tensioner
body between the bridge bracket and the tensioner bracket.
[A,B] Align tensioner holes with bridge bracket and thread the two
8mm-1.25 x 25mm flat head cap screws through the bridge bracket and into the
tensioner and tighten firmly.
[C] Apply anti seize to the 5/16-18 x 1/2” socket head cap screw, thread the cap
screw through back of tensioner bracket and into tensioner and tighten firmly.
For kits without power steering: Tighten all bridge bracket fasteners and accessory
hardware at this time firmly - proceed to Figure 9.
[A]
[C]
[B]
[A]
[B]
[C]
