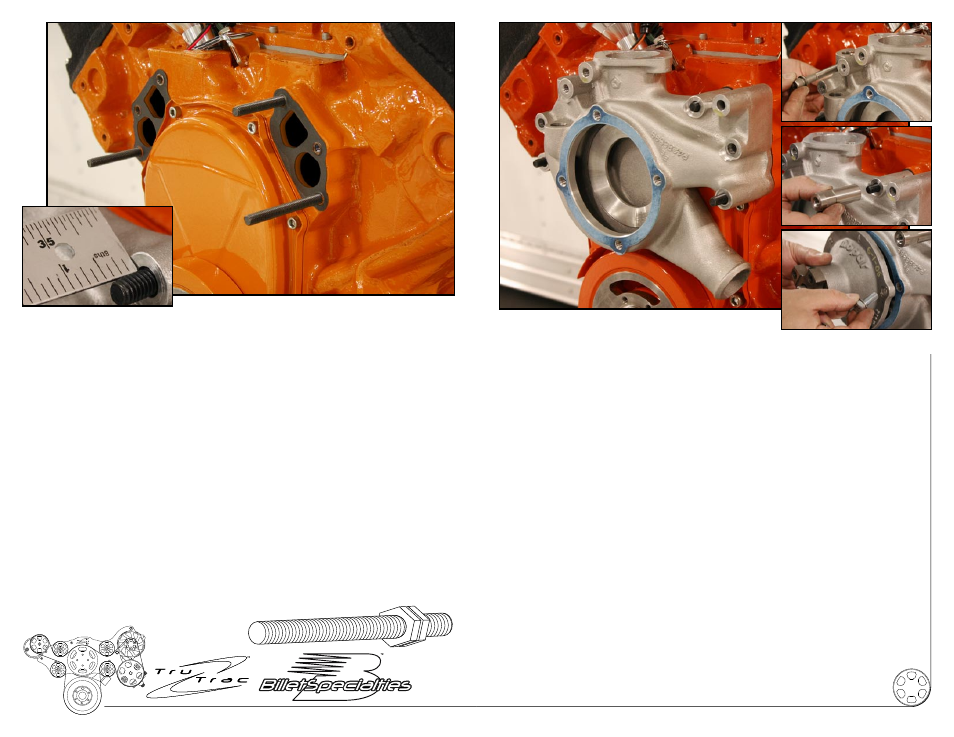

Figure 1 – Prepping The Block

Disconnect battery; remove all existing accessory drive brackets and components
from motor.

Remove water pump and housing, scrape away any existing gasket material with
a gasket scraper and dress surface with a Scotch Brite® pad.

Clean and prep threads on engine block at water pump, use a 3/8-16 thread
chaser if necessary. Thread chasers are available at your local auto parts store or
tool dealer and are different from a thread cutting tool.

Apply RTV sealer to one end of the 3/8-16 x 3” threaded stud and thread stud
into the driver side top water pump mount hole. Next apply RTV sealer to one
end of the 3/8-16 x 4-1/4” stud and thread into the lower driver side mount hole
and tighten. Apply RTV sealer to one end of the remaining 3/8-16 x 3-1/2” stud
and thread into the bottom passenger side mount hole and tighten. The studs
can easily be tightened by threading two 3/8-16 zinc coated nuts onto the stud
and tighten them against each other to act as a drive nut, see example. Apply
anti-seize to the exposed threads of the studs at this time. Check installed height
of studs by sliding water pump housing on to the studs. There should be 1/2” of
exposed threads on each stud, readjust as necessary.

Figure 2 – Install Water Pump Housing & Pump

Apply Permatex Hylomar® gasket dressing to both sides of water pump housing
gaskets and slip over studs on block. Install water pump housing onto studs make
sure top passenger gasket is still aligned.

(A) Apply anti-seize to the 3/8-16 x 2-1/2” socket head cap screw with 3/8”
washer and thread through water pump housing and into block, finger tighten.

(B) Thread the 2-3/32” long spacer nut to the driver side top stud and finger
tighten.

(C) Apply gasket dressing to both sides of water pump gasket and install water
pump to housing and tighten firmly. Seep hole on pump should point down.

Example

1/2"

[A]

[B]

[C]
