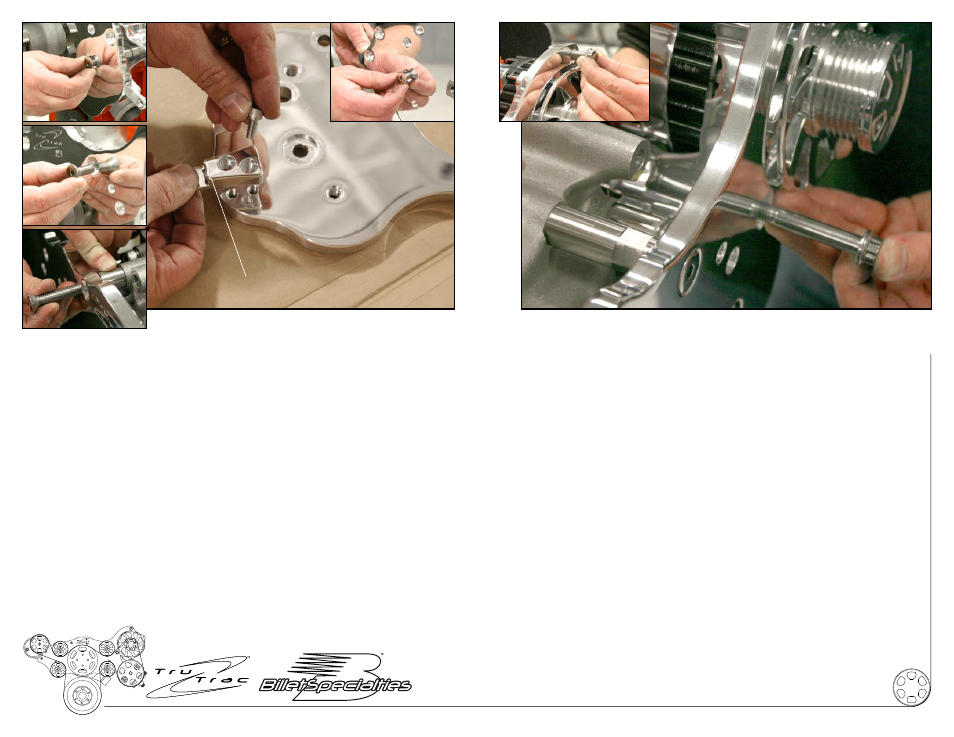

Figure 6 - Install Alternator
Apply anti-seize to the 10mm-1.5 x 70mm ARP 12pt cap screw. Place and align the
alternator between the bridge bracket and the alternator bracket with the long
mounting boss at the bottom.
[A] Thread the 10mm-1.5 x 70mm ARP 12pt cap screw through the bridge bracket
and alternator into the alternator bracket and finger tighten.
[B] Apply anti seize to the 8mm-1.25 x 25mm ARP 12pt cap screw, align top
alternator boss with the bridge bracket and thread cap screw through bridge
bracket and into alternator – finger tighten.
The alternator mounting boss may vary in width due to the polishing process.
10mm shim washers are provided to shim the alternator if needed at the bottom.
Figure 5 - Install Bridge Bracket
For kits with power steering: attach the power steering support bracket to the
back of the driver side bridge bracket with two 1/4-28 x 1/2” socket head cap
screws and tighten firmly.
Place bridge bracket onto face of motor and align bracket mount holes with
spacer nuts and water pump bosses.
[A] Apply anti seize to the 3/8-16 x 3/4” flat head cap screw and thread through
the lower driver side of the bridge bracket and into the spacer nut, finger tighten.
[B] Apply anti seize to the 3/8-16 x 1” flat head cap screw and thread through the
top driver side bridge bracket and into upper spacer nut, finger tighten.
[C] Apply anti seize to the 3/8-16 x 1-3/4” flat head cap screw. Place the 13/16”
stainless spacer between bridge bracket and the top of the water pump housing,
thread the 3/8-16 x 1-3/4” flat head screw through the bridge bracket, spacer and
into the housing, finger tighten.
[D] Apply anti-seize to the 5/16-18 x 1” flat head screw and thread through the
lower passenger side of the bridge bracket into the spacer nut and finger tighten.
[A]
[B]
[C]
[D]
Power Steering Support Bracket
[B]
[A]
