Required Tools & Materials
Anti-seize Compound
RTV Silicone
Permatex Hylomar®
gasket dressing
Gasket Scraper
Scotch-Brite® Pad
3/8-16 Thread Chaser* & Holder
*Thread chasers are available at your
local parts store and are different from
a thread cutting tap.
PLEASE READ ALL INSTRUCTIONS BEFORE INSTALLING ANY
COMPONENTS OF THE TRU TRAC SERPENTINE SYSTEM
3/16” Allen
5/16” Allen
1/4” Allen
7/32” Allen
5mm Allen
6mm Allen 5/8” Box End Wrench
9/16” Box End Wrench
3/4” Box End Wrench
11/16” Box End Wrench
Socket Wrench & Extension
10mm 12pt. socket
12mm 12pt. socket
3/8” 12pt. Socket
IMPORTANT: Must use thin crank vibration damper Mopar Performance number
P3830183 or similar with this kit.
Tech Line: 708.588.0505
Fax: 708.588.7181
www.billetspecialties.com
TECH TIP:
Billet Specialties recommends the use of Anti-Seize on all
fasteners to prevent thread lock-up.

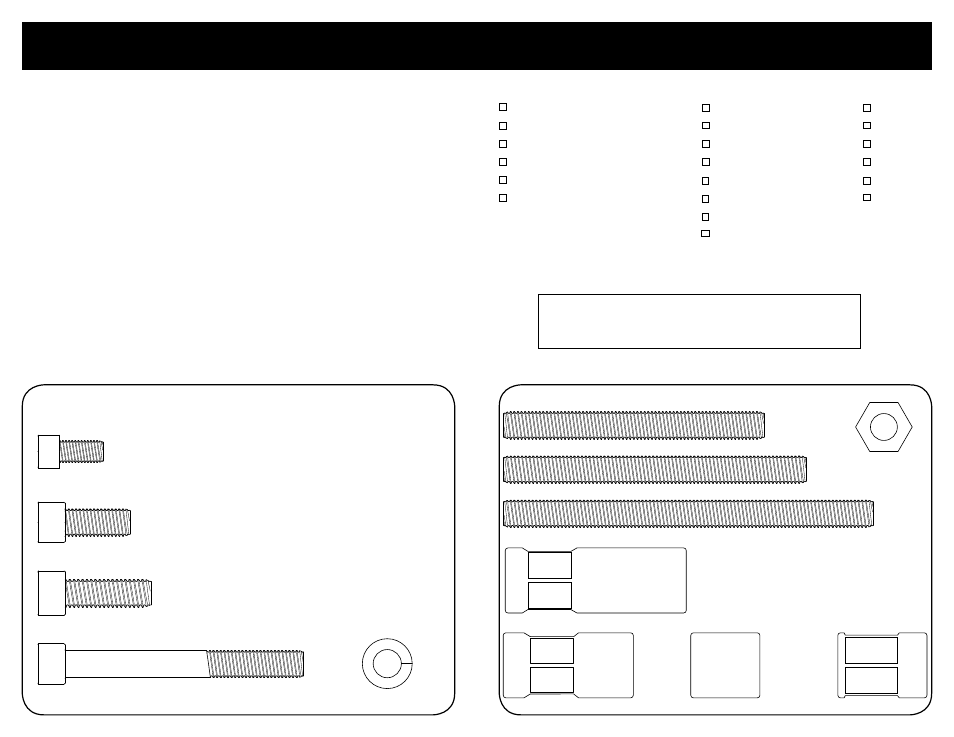

Skin Board #1 - Packaged with Power Steering Pump Skin Board #2 - Packaged with Water Pump
1/4-28 X 1/2” Socket Head Cap Screw
Power Steering Pump To Bracket
Power Steering Bracket To Alternator Bracket
Power Steering Pump To Power Steering Support Bracket
Power Steering Support Bracket To Bridge Bracket
5/16” Lock Washer
5/16-18 x 3/4” Socket Head Cap Screw
8mm-1.25 x 25mm Socket Head Cap Screw
5/16-18 x 2-3/4” Socket Head Cap Screw
x2
x2 x2
3/8-16 Zinc Coated
Hex Nuts
x2
x3
3/8-16 x 3” Block Mounting Stud
3/8-16 x 3-1/2” Block Mounting Stud
3/8-16 x 4-1/4” Block Mounting Stud
2-3/32” Spacer Nut
13/16” Spacer 1-1/32” Spacer Nut 1-1/2” Spacer Nut
x1
x1
x1 x1 x1
x1
x1
x1
