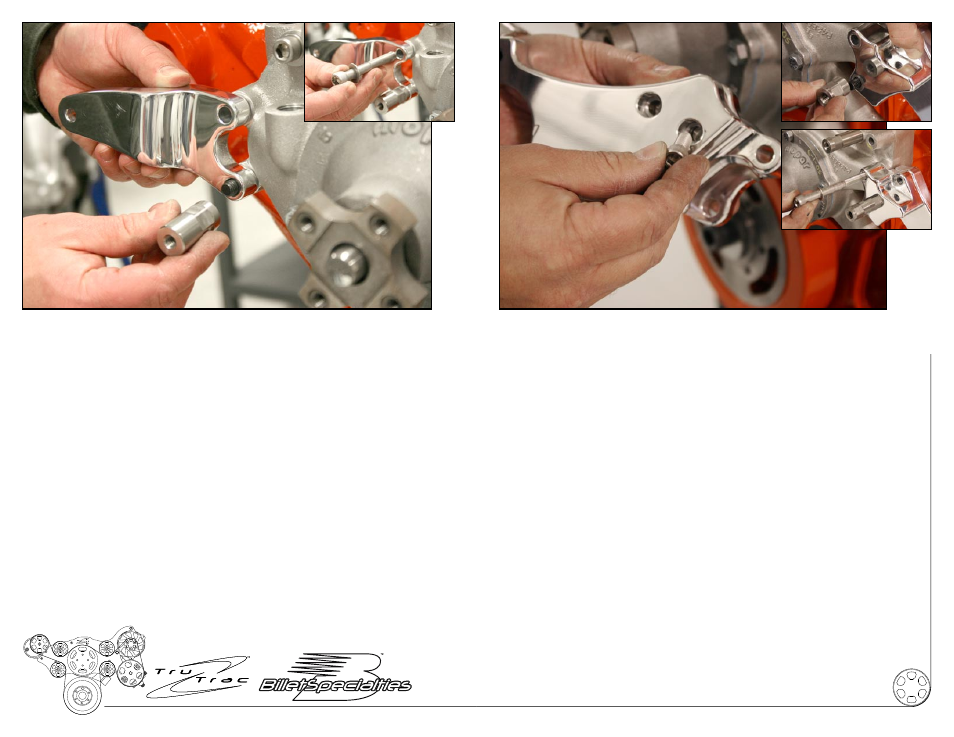

Figure 4 - Install Alternator Bracket

For kits without power steering proceed to Step 2.

Step 1: Attach the power steering pump bracket to the back of the alternator
bracket (14801) with three 5/16-18 x 3/4” socket head cap screws and tighten
firmly.

Step 2: [A] Place alternator bracket on driver side of water pump and thread the
1-1/32” spacer nut onto the bottom stud and finger tighten.

[B] Apply anti-seize to the 3/8-16 x 3-3/4” socket head cap screw with 3/8”
washers and thread through upper hole in bracket, water pump housing,
and into block.

Tighten all fasteners at this time firmly.

Figure 3 - Install Tensioner Bracket

Place tensioner bracket (14827) on passenger side of water pump housing and
align with the two left mount bosses.

[A] Thread the 1-1/2" long spacer nut onto the lower stud and tighten firmly.

[B] Apply anti seize to the 3/8-16 x 3" socket head cap screw with 3/8" washer and
thread through tensioner bracket, water pump housing and into block,
tighten firmly.

[A]

[B]

[A]

[B]

Step 1
