Other Hardware / Gaskets
Goodyear Poly-V Serpentine Belt - 74.50” #4060745 (with power steering)
Goodyear Poly-V Serpentine Belt - 64.25” #4060642 (without power steering)

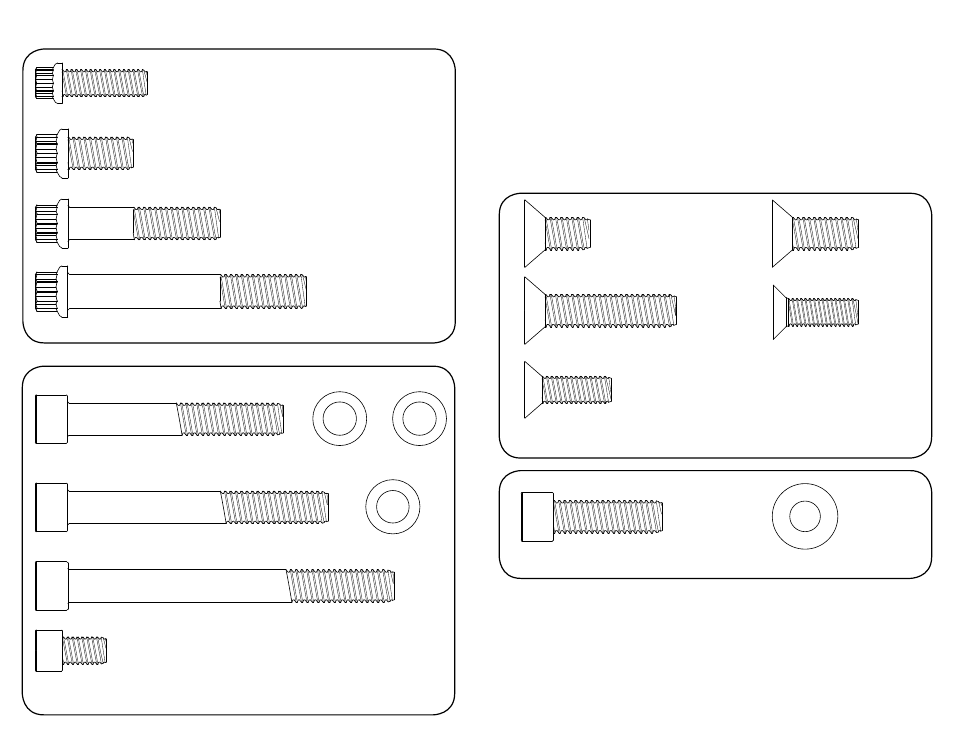

Skin Board #3 - Packaged In Main Box
8mm-1.25 x 25mm 12pt. Cap Screw
x1
3/8-16 x 3/4” 12pt. Cap Screw
x1
3/8-16 x 1-3/4” 12pt. Cap Screw
x4
3/8-16 x 3/4” Flat Head Cap Screw
Thru Bridge Bracket Into Spacer Nut Tensioner To Bridge Bracket
Crankshaft & Water Pump Pulley
Bridge Bracket To Spacer Nut &
Tensioner To Bridge Bracket
Thru Bridge Bracket To Water Pump Housing
Bridge Bracket To Tensioner
x1
3/8-16 x 1” Flat Head Cap Screw
x1
8mm-1.25 x 25mm Flat Head Cap Screw
x2
3/8-16 x 1-3/4” Flat Head Cap Screw
x1
5/16-18 x 1” Flat Head Cap Screw
x1
5/16-18 x 1” Socket Head Cap Screw
x10
5/16” Belleville Washer
Crank Pulley
x6
10mm-1.5 x 70mm 12pt. Cap Screw
x1
10mm x .5mm
Shim Washer
x1
3/8-16 x 2-1/2” Socket Head Cap Screw
x2
10mm x 1mm
Shim Washer
x2
3/8” Flat Washer
x3
3/8-16 x 3” Socket Head Cap Screw
x1
3/8-16 x 3-3/4” Socket Head Cap Screw
x1
5/16-18 x 1/2" Socket Head Cap Screw
x1
Bridge Bracket To Alternator
Tensioner Pulley
Idler Pulleys
Bridge Bracket To Alternator
Water Pump Housing To Block
Water Pump Housing To Block
Backside Of Tensioner Thru Bracket
Compressor Bracket To Block
