2: Set-up and Operation
000-40000-010-02-201311 25

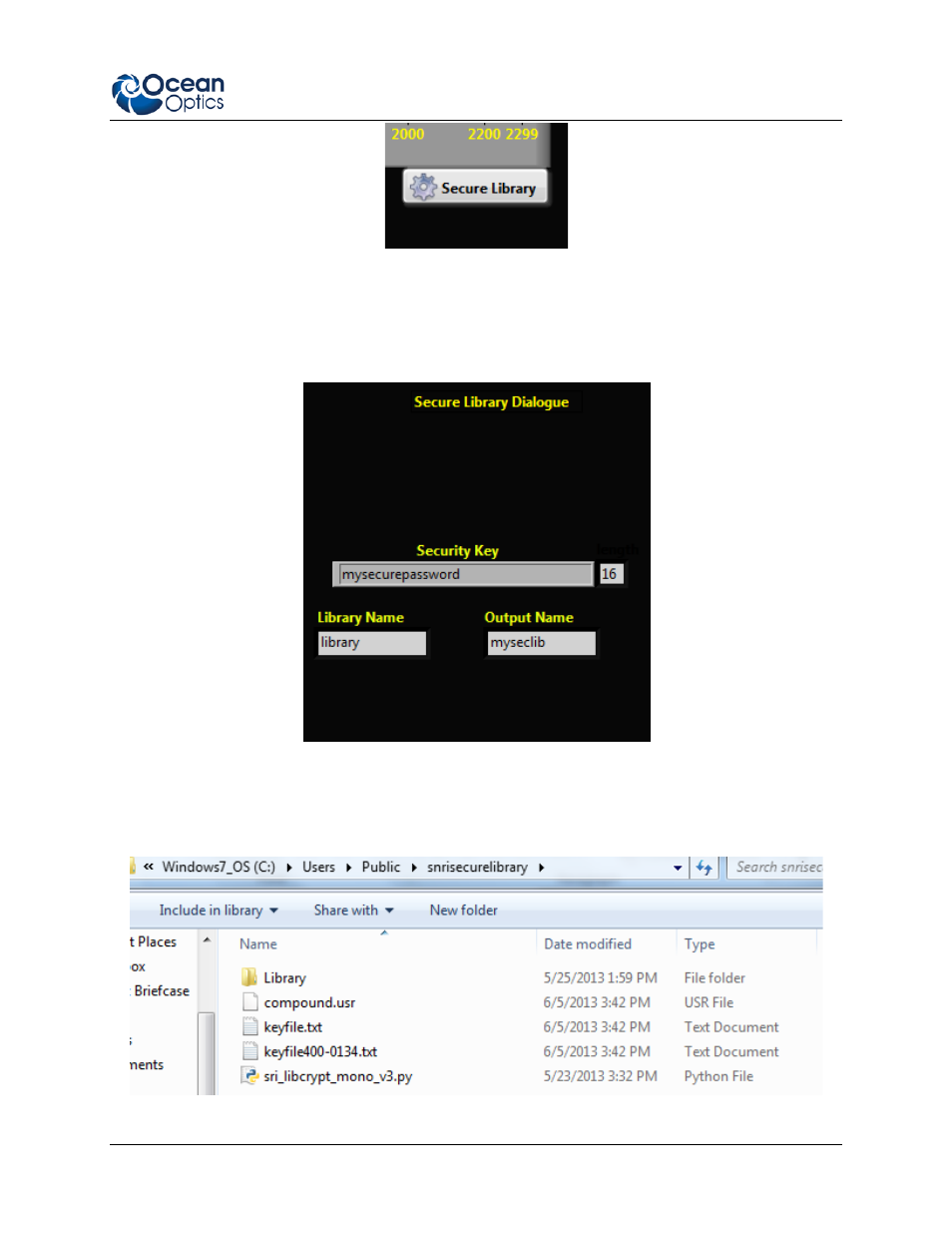

4. After you have entered your library folder name and an allowed output file name, the dialog will
ask for your security key. This is the 32 characters that will go into the keyfile.txt. A counter is
provided to the right of the Secure Library dialog. When you have entered your 32-bit security
key, the routine will automatically create your encrypted library.
5. Once you have successfully created your encrypted library (compound.usr), it will appear in the
snrisecurelibrary folder. It can now be transferred to the IDRaman mini using the USB drive tool.
It should go in the Library\ folder.
