2: Installing the Maya2000 Series

8

020-00000-000-02-201207

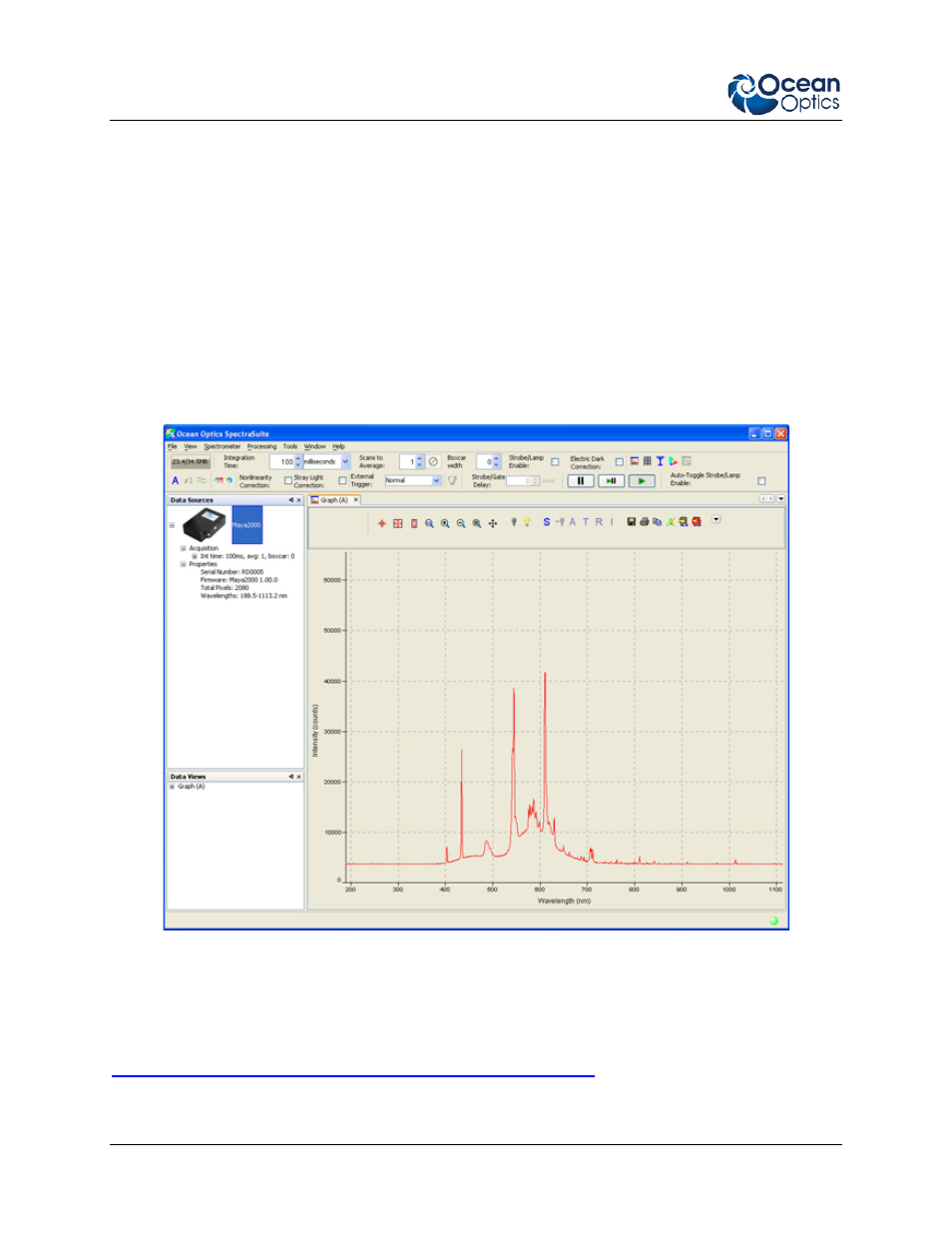

Note the spectrometer(s) that you have installed are listed in the Data Sources pane of your SpectraSuite
software.

Once you install the software and hardware, and establish your sampling system, you are ready to take
measurements.

Configuring the Maya2000 Series Spectrometers

If you have followed the previous steps and started SpectraSuite, the spectrometer is already acquiring
data. Even with no light in the spectrometer, there should be a dynamic trace displayed in the bottom of
the graph. If the graph does not automatically appear, select File | New | Spectrum Graph. If you allow
light into the spectrometer, the graph trace should rise with increasing light intensity. This means the
software and hardware are correctly installed.

Connect Spectroscopic Accessories

To find operating instructions for Maya2000 Series-compatible products (such as light sources, sampling
chambers, and probes), consult the Software and Technical Resources CD or the Ocean Optics website at

http://www.oceanoptics.com/technical/operatinginstructions.asp

.
